- a wall switch or thermostat (see accessories) can be used to turn the kit on
- the vent in the destination room should be placed as far away from the door as possible
If extra duct, vents or joiners are needed we have a range of heat transfer parts.
If you would like to view our general Heat Transfer Kit installation guide click here
About this kit

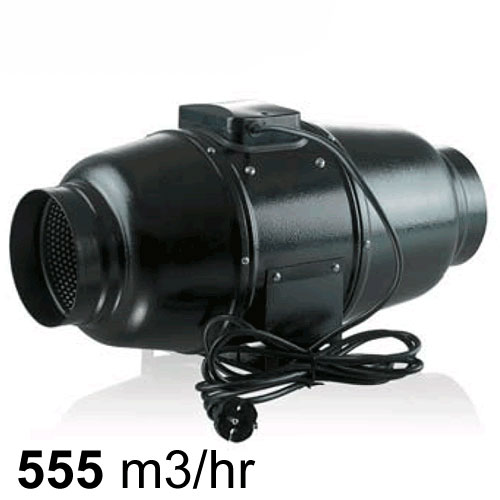

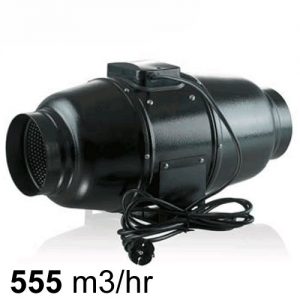

This is our premium offering for the simple reason that it is a very quiet fan! It has been specifically engineered to operate quietly, the casing is larger and has inbuilt insulation. In terms of performance the fan will provide the same characteristics as the TT Mixflow fan.
|TT Silent 150

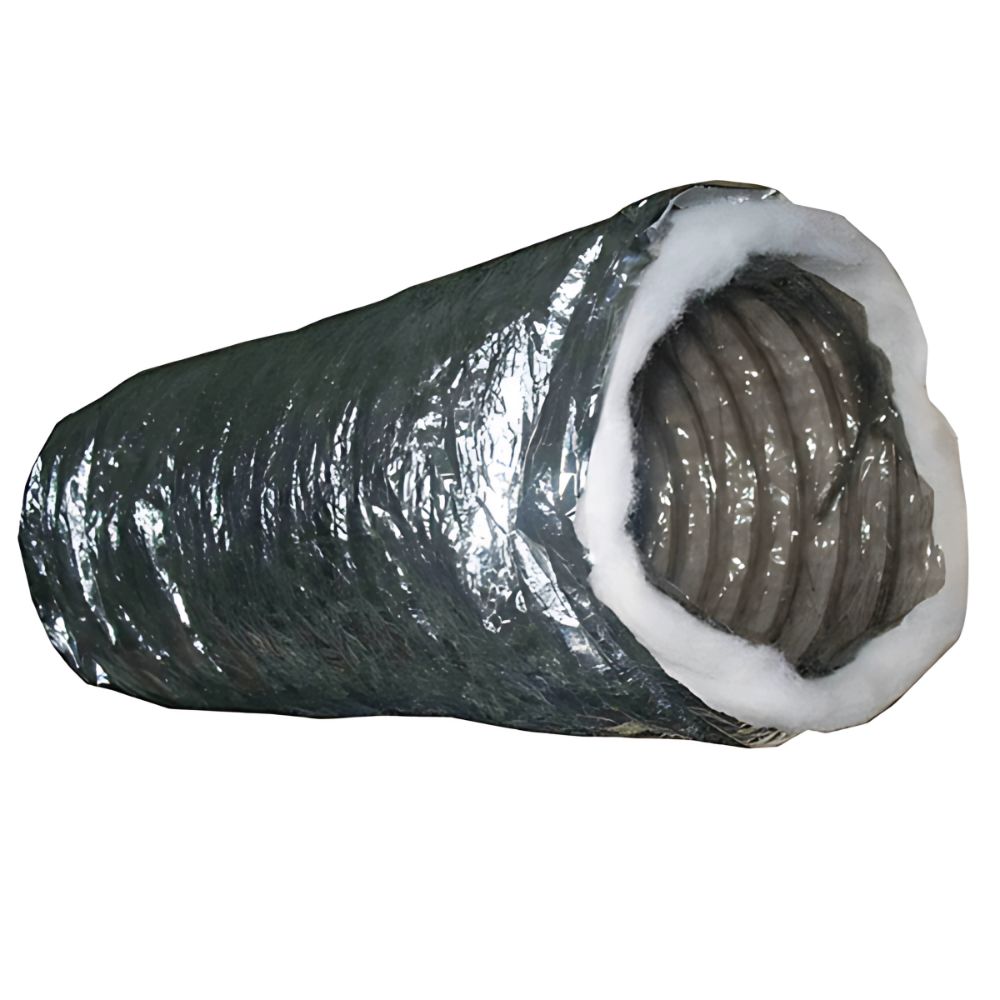

*These figures are all based on duct-work of the same diameter as the fan and are approximate calculations. This kit is provided with 12m of ducting. Figures are based on the fan wired to the high speed.
The big difference with this fan is in the dB(a) rating. Whilst the capacity of the motor is the same, the noise is different:
TT Mixflow 150: 44db(A) (33 on low speed setting)
TT Silent 150: 33db(A) (26 on lower speed)
If noise is a primary concern then the Premium silent fan may be suitable for you.
The kits can be installed by the client as it is relatively easy to install. Some handyman skills are required to make holes in the plaster, etc. An electrician is needed to provide power to the fan (or a power point) and a switch, also to install a thermostat if required. The electrician can also install the system at the same time.
The fan is provided with a lead and plug, so it can be plugged in to an available power point which an electrician could install independent of the system installation.
An optional thermostat is available (see accessories below) BUT NOTE THAT AN ELECTRICIAN WILL THEN BE REQUIRED TO INSTALL IT.
