Airbus 150 LED Square Exhaust Fan – White
$139.00
| Extraction Rate | 130 m3/hr (36 l/s) |
|---|---|
| Hole (Cutout) Size | 197mm Round |
| Fascia Size | 210mm Square |
| Ductable? | Yes (100mm duct diameter) |
————-
This product is currently Out of Stock with no expected arrival date. For this reason it cannot be purchased. If you would like some options for suitable alternatives please contact us

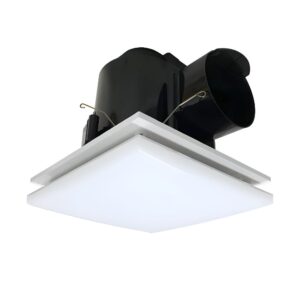

The Ventair Airbus 150 Square exhaust fan with LED (PVPX150SQLED) is a modern low profile side ducted exhaust fan available in square and round fascias styles. This fan comes with a high quality ball bearing motor which moves a moderate 130m3/hr of air and includes a 14W LED light at the center of the model which emits a 4200k Cool White Light (1400lm). A backdraft shutter and separate lead and plug for both the LED light and fan is included for easy installation. Including x2 lead and plugs allows you to use the LED light and fan operation independently of each other.
This Airbus is ideal for spaces such as toilets, laundries and powder rooms which require ventilation and lighting. Has been designed for short to medium length duct runs, for more information please refer to the pressure curve in the image gallery.
Features:
- 14W LED Light (1400lm) 4200k Natural White
- Quality Japanese ball bearing motors
- Low profile
- Included backdrop stopper
- Simple to clean and install
- Includes x2 lead and plugs (LED Light & Fan Motor)
| Manufacturer | Ventair |
|---|---|
| Model Number | PVPX150SQLED |
| Colour | White |
| Material | Plastic |
| Hole Size | 197mm |
| Capacity (m3/hr) | 130 m3/hr |
| Capacity (L/S) | 36 L/S |
| Recommended Room Size (Based on Achieving 15 air changes per hour) | 10 m3 |
| Motor Power (Wattage) | 25w |
| Motor Height | 188mm |
| Minimum Install Depth | 220mm |
| Noise Level | 38 dB(A) |
| IP Rating | IPX4 |
| Voltage | 240 |
| Installation | Includes Flex and Plug |
| Installation Location | Ceiling |
| Includes Backdraft Shutter | Yes |
| Ductable? | Ductable |
| Duct Location | Side Ducted |
| Duct Size | 100mm |
| Warranty | Ventair: The manufacturer offers a 5 year warranty on the motor (conditions apply) |
| Capacity Disclaimer | All capacity figures and technical data quoted is provided by the manufacturer, Capacity figures are based on the unit freeflowing (not connected to ducting). If you are ducting this unit it is advisable to keep the duct run as short, straight and tight as possible |
| Room Size Recommendation Disclaimer | As stated our "Recommended room size" figures are based on achieving 15 air changes per hour. Generally we have found this to be suitable, however it does not constitute specific advice. |
