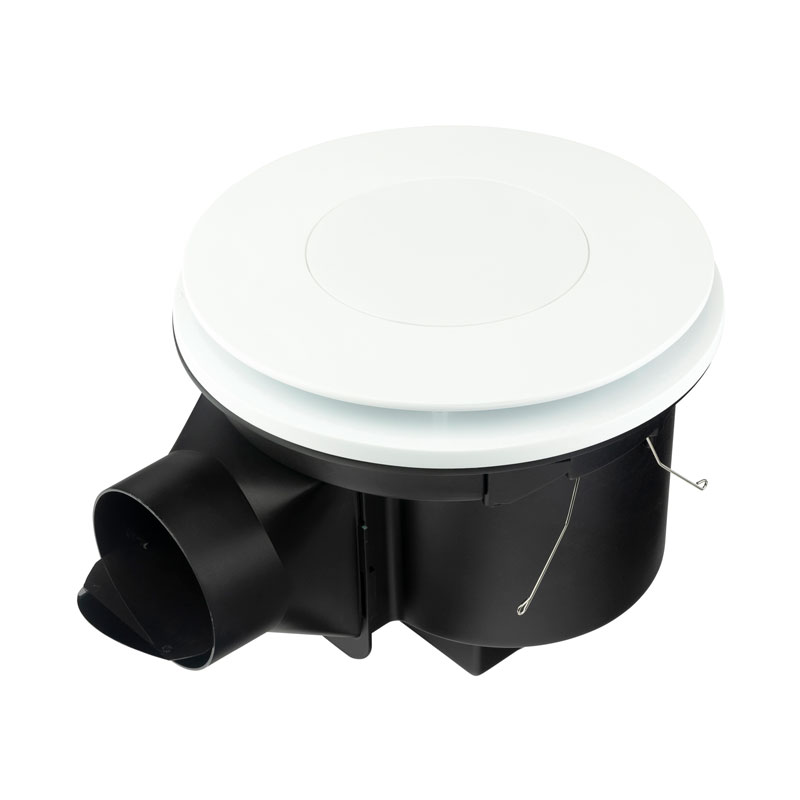

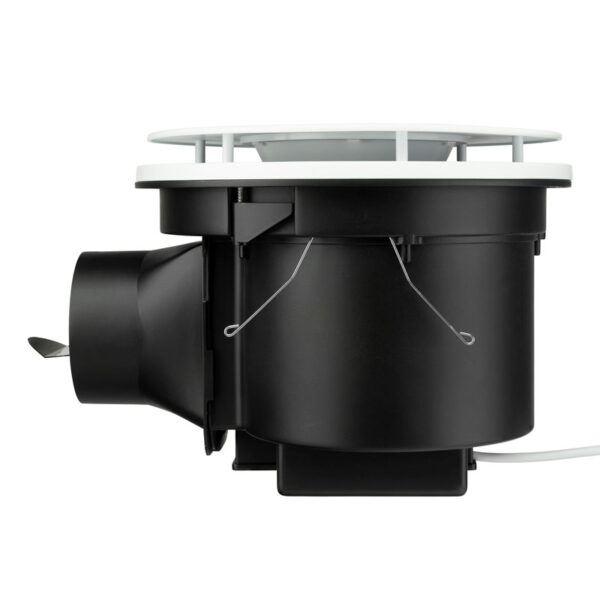

Brilliant Blizzard DC Ceiling Exhaust Fan 450 with CCT LED – Round
Original price was: $169.00.$149.00Current price is: $149.00.
The Brilliant Blizzard DC Exhaust Fan (22773/05) exhaust fan comes with either a 100mm or 150mm duct outlet. It efficiently removes moisture and steam with a 450m³/hr airflow. Features a quiet, energy-saving DC motor and comes with a 100 or 150mm duct adaptor. Ideal for large rooms with easy ceiling installation. Also comes with a CCT LED light with adjustable temperatures: 30000, 4200K, 6000K.

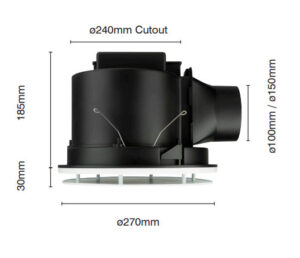

| Extraction Rate | 450m3/hr (125l/s) |
|---|---|
| Hole (Cutout) Size | 240mm Round |
| Motor Height | 185mm – Requires 285mm of ceiling space |
| Fascia Size | 270mm |
| Ductable? | Yes (100mm or 150mm duct diameter) |
The Brilliant Blizzard DC series exhaust fans are designed for powerful and efficient ventilation in any room. Equipped with advanced DC motors, these fans offer superior airflow and quiet operation while consuming up to 50% less power than traditional AC motors. They can handle airflow rates of up to 450m³/hr, making them ideal for large rooms. Each model includes a 100 or 150mm duct adaptor with a backdraft shutter for flexible installation. NOTE: Use of the 100mm duct adapter may result in lower performance
Please note – the airflow is measured free flowing based on 150mm ducting. Using the more restrictive 100mm option will reduce the extraction rate.
Key Features
- Tornado Impeller Blades: Engineered for maximum airflow and low noise.
- Efficient Extraction: Effectively removes moisture, steam, and odors.
- CCT LED Lighting: Comes with selectable 3000K, 4200K, or 6000K lighting.
- Modern Ergonomic Fascia: Designed for easy airflow and minimal resistance.
- Removable Fascia: Easy to clean for ongoing maintenance.
- Easy Installation: Designed for ceiling installation in single or multi-storey homes.
- Flexible Ducting: Includes 100mm and 150mm duct adaptors with backdraft shutter.
DC Motor Benefits
- Energy Efficiency: Consumes up to 50% less power than traditional AC motors.
- Quiet Operation: Engineered to operate with minimal noise for a serene environment.
- High Performance: Delivers powerful airflow with lower power consumption.
- Longer Lifespan: Lower operating temperature increases motor longevity.
- Lower Operating Temperature: Ensures long-lasting performance.
- Enhanced Torque and RPM: Provides superior ventilation performance.
With easy ceiling installation, a removable fascia for cleaning, and a 5-year replacement warranty, the Blizzard DC series is the ultimate choice for effective and efficient ventilation in your home. If you need a high airflow exhaust fan with integrated LED lighting, the Blizzard DC series offers a solution that combines performance, energy efficiency, and modern design.
| Manufacturer | Brilliant |
|---|---|
| Model Number | 22773/05 |
| Colour | White |
| Material | Plastic |
| Hole Size | 240mm |
| Capacity (m3/hr) | 450 m3/hr |
| Capacity (L/S) | 125 L/S |
| Recommended Room Size (Based on Achieving 15 air changes per hour) | 30 m3 |
| Noise Level | 40 dB(A) |
| IP Rating | IPX5 |
| Voltage | 240 |
| Installation | This fan comes with a lead and plug for connection to a power socket |
| Installation Location | Ceiling |
| Ductable? | Ductable |
| Duct Location | Side Ducted |
| Duct Size | 100mm, 150mm |
| Warranty | Brilliant – The manufacture offers a 5 year warranty (conditions apply). |
| Room Size Recommendation Disclaimer | As stated our "Recommended room size" figures are based on achieving 15 air changes per hour. Generally we have found this to be suitable, however it does not constitute specific advice. |
| Room Size | Large (20m3+) |
| Type of Light | LED |
| Light Details | Light Colour: 30000, 4200K, 6000K (selectable from LED switch on housing) |
