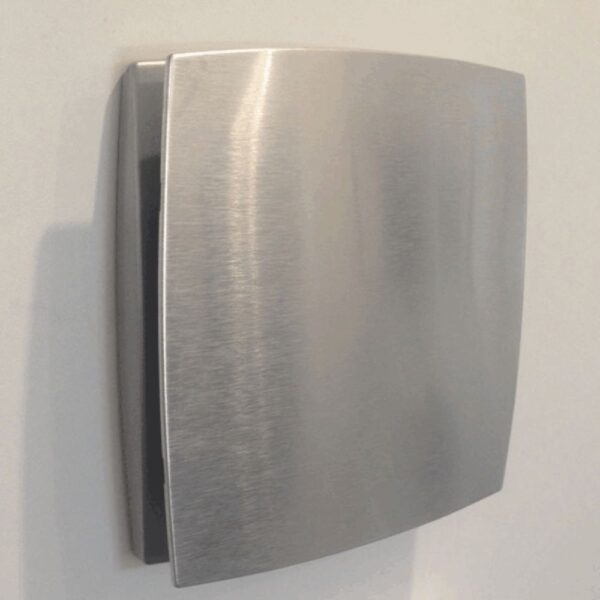

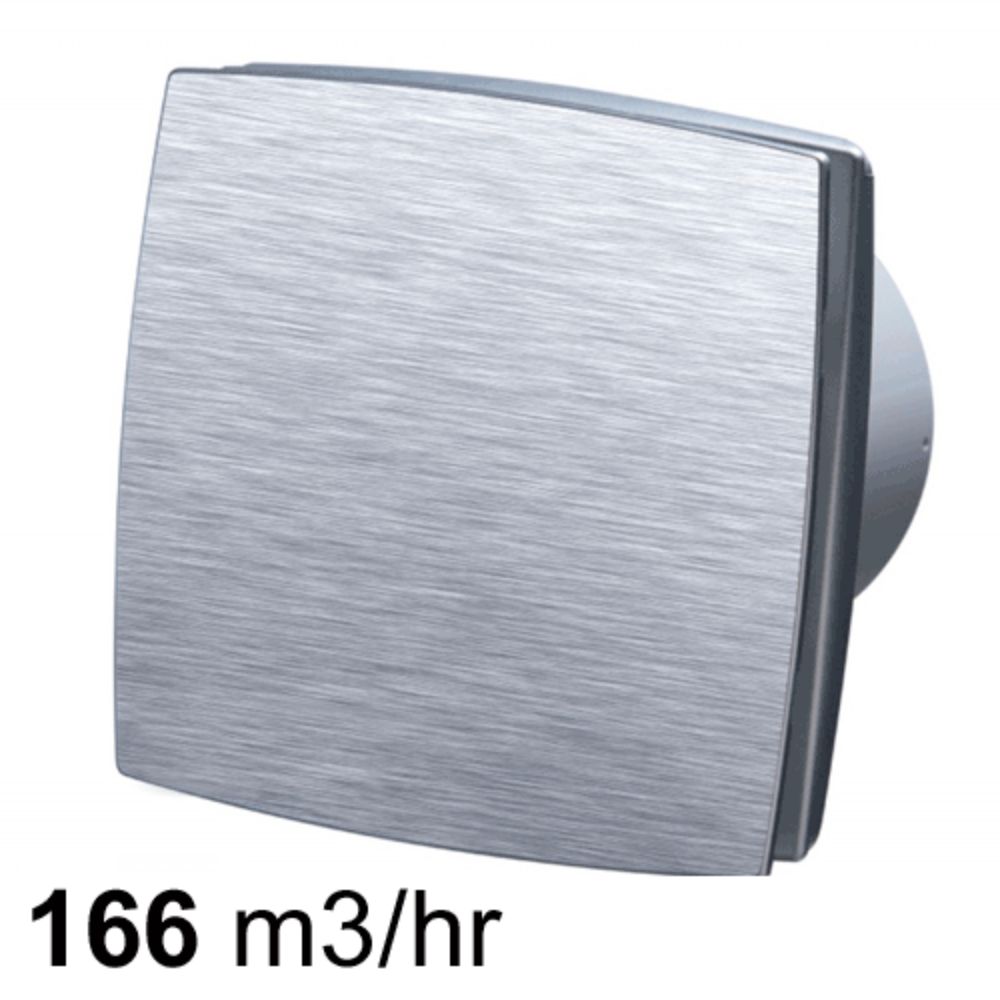

Chico Exhaust Fan 125mm Brushed Aluminium
Original price was: $128.90.$108.90Current price is: $108.90.
| Extraction Rate | 166 m3/hr (46.11 l/s) |
|---|---|
| Hole (Cutout) Size | 125mm Round |
| Fascia Size | 177mm Square |
| Ductable? | Yes (125mm duct diameter) |
————-
This product is currently Out of Stock with no expected arrival date. For this reason it cannot be purchased. If you would like some options for suitable alternatives please contact us
The Chico range features a modern design with a capable exhaust fan. It is a ductable ceiling or wall mounted exhaust fan with a very modern low profile fascia, which makes it popular with interior designers and architects.
Customers please be aware that the above dimensions refer to the length of the unit with the backdraft shutter closed. To allow room for the backdraft shutter to open this unit requires a wall/ceiling cavity of at least 15.5 cm.
| Manufacturer | Fanco |
|---|---|
| Model Number | EMVULD2BA |
| Colour | Silver |
| Material | Plastic with Metal Cover |
| Hole Size | 125mm |
| Capacity (m3/hr) | 166 m3/hr |
| Capacity (L/S) | 46.11 L/S |
| Recommended Room Size (Based on Achieving 15 air changes per hour) | 11 m3 |
| Motor Power (Wattage) | 16w |
| Motor Height | 101mm |
| Noise Level | 34 dB(A) |
| IP Rating | IP34 |
| Voltage | 220 – 240 |
| Installation | This fan requires hardwiring by an electrician |
| Installation Location | Ceiling or Wall |
| Includes Backdraft Shutter | Yes |
| Ductable? | Ductable |
| Duct Location | Rear Ducted |
| Duct Size | 125mm |
| Warranty | Fanco – The manufacturer offers a 2 year replacement warranty (conditions apply) |
| Capacity Disclaimer | All capacity figures and technical data quoted is provided by the manufacturer, Capacity figures are based on the unit freeflowing (not connected to ducting). If you are ducting this unit it is advisable to keep the duct run as short, straight and tight as possible |
| Room Size Recommendation Disclaimer | As stated our "Recommended room size" figures are based on achieving 15 air changes per hour. Generally we have found this to be suitable, however it does not constitute specific advice. |
