| Manufacturer | Fanmaster |
|---|---|
| Model Number | IWEL 200 |
| Colour | Black |
| Material | Metal |
| Hole Size | 242mm |
| Capacity (m3/hr) | 780 m3/hr |
| Capacity (L/S) | 216.66 L/S |
| Recommended Room Size (Based on Achieving 15 air changes per hour) | 52 m3 |
| Motor Power (Wattage) | 28w |
| Noise Level | 45 dB(A) |
| IP Rating | No IP rating Published |
| Voltage | 240 |
| Installation | This fan requires hardwiring by an electrician |
| Installation Location | Wall |
| Includes Backdraft Shutter | No |
| Ductable? | Non-Ductable |
| Warranty | Fanmaster – The Manufacturer offers a 1 year replacement warranty (conditions apply) |
| Capacity Disclaimer | All capacity figures and technical data quoted is provided by the manufacturer, Capacity figures are based on the unit freeflowing (not connected to ducting). If you are ducting this unit it is advisable to keep the duct run as short, straight and tight as possible |
| Room Size Recommendation Disclaimer | As stated our "Recommended room size" figures are based on achieving 15 air changes per hour. Generally we have found this to be suitable, however it does not constitute specific advice. |

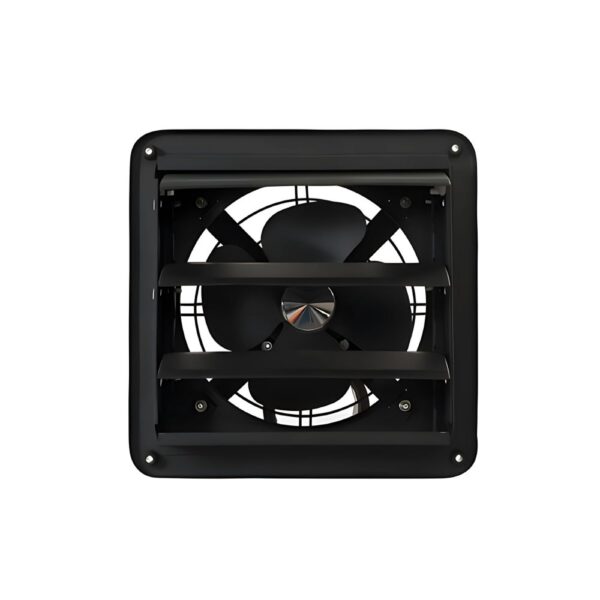

Commercial Wall Fan w/ Gravity Shutters 200mm
$169.00
Capacity: 780 m3/hr (216.66 l/s)
Hole (Cutout) Size: 242mm Square (Wooden frame for the fan needs to be fabricated)
Face Size: 294mm Square
Ductable: No
View full technical specs further down the page
This fan is an industrial grade wall mounted exhaust fan with self closing louvers which prevent reverse airflow. The fan is suitable for industrial, commercial or domestic application. The Industrial wall mounted exhaust fan can be used to extract heat, air or dust or to ventilate a space such as a factory or garage. The fan is designed to extract large volumes of air (the fan has a huge capacity of 780 m3/hr) at a relatively low noise.
The fan is easy to install, it comes with a 240v motor ready to be hardwired.
PRODUCT NOTE: This fan requires hardwiring by an electrician and will have to be boxed in with a timber frame or gal angle.
