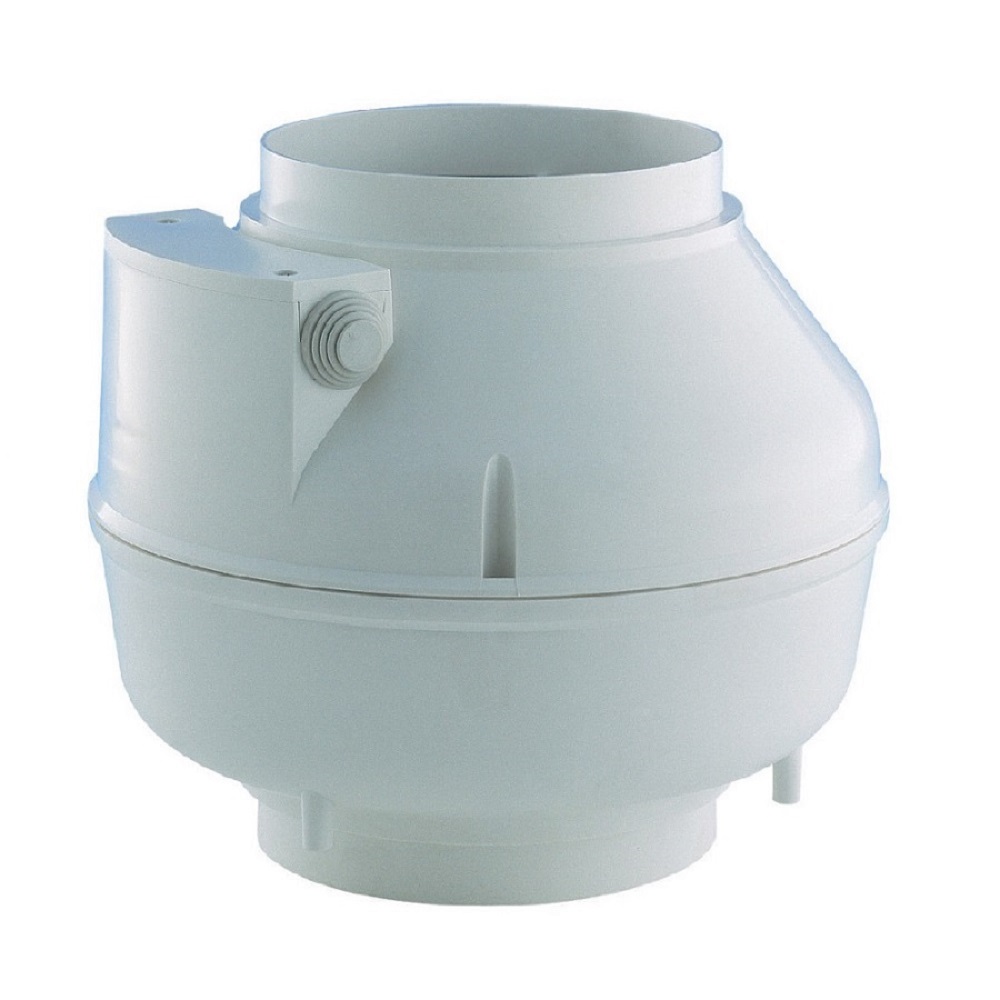

Elicent AXC 150 TP Centrifugal Inline Fan with Mounting Brackets
RRP is provided by the manufacturer.
Capacity: 430 m3/hr (119 l/s)
Motor Type: Centrifugal
Ductable: Yes (150mm duct diameter)
View full technical specs further down the page
Delivering high-capacity air and fume movement, the Elicent AXC TP Centrifugal 150mm Inline Fan achieves a maximum airflow of 430 m3/hr. Designed for large rooms, its IPX2 water-resistant frame and easy-to-install mounting bracket make it a reliable and efficient ventilation solution for diverse settings.
Need Accessories? – Scroll to the bottom of the page to view suitable accessories including ducting and vents.
Add a Run on timer
This fan can be used with the following run on timer. An electrician will be required to install a 4 pin plug outlet. This timmer allows for the run on period to be adjusted from 0-60 minutes.
Addressing diverse ventilation needs, the Elicent AXC 150 Centrifugal range offers high-capacity solutions for numerous environments. These systems are built for lasting functionality and include:
- Effective ventilation for large spaces
- Quieter compared to equivalents with 39dB(A).
- Made from self-extinguishing V2 technopolymer
- Handles air up to 50°C.
- Backward curved blades and ball-bearing motor provided with thermal cut-out
- IPX2-rated, suitable for humid areas
- Mounting brackets included
| Manufacturer | Elicent |
|---|---|
| Model Number | 2AX6100 |
| Material | Plastic |
| Capacity (m3/hr) | 430 m3/hr |
| Capacity (L/S) | 119 L/s |
| Motor RPM | 2560 |
| Motor Type | Centrifugal |
| Recommended Room Size (Based on Achieving 15 air changes per hour) | 28.7 m3 |
| Noise Level | 39 dB(A) |
| IP Rating | IPX2 |
| Voltage | 220 – 240 |
| Installation Statement | This fan requires hardwiring by an electrician |
| Duct Size | 150mm |
| Max Temperature of Transferred Air | 50 °C |
| Warranty | Elicent – The manufacturer offers a 2 year replacement warranty (conditions apply) |
| Capacity Disclaimer | All capacity figures and technical data quoted is provided by the manufacturer, Capacity figures are based on the unit freeflowing (not connected to ducting). If you are ducting this unit it is advisable to keep the duct run as short, straight and tight as possible |
| Room Size Recommendation Disclaimer | As stated our "Recommended room size" figures are based on achieving 15 air changes per hour. Generally we have found this to be suitable, however it does not constitute specific advice. |
| Barcode Number | 8009278220822 |
