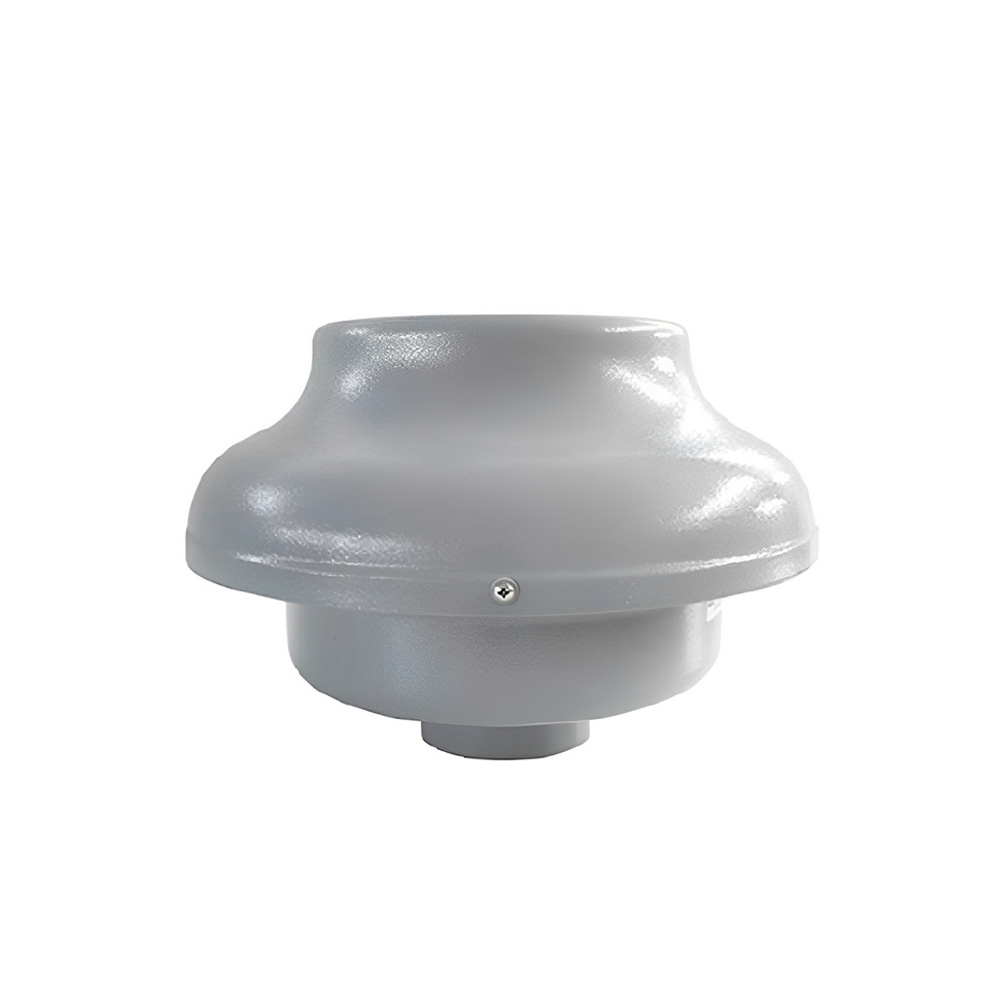

Elicent Mini Roof Centrifugal Fan 150mm Duct
Original price was: $429.00.$379.00Current price is: $379.00.
Pre-Order Product: ETA Mid Jun
Capacity: 579 m3/hr (160.83 l/s)
Hole (Cutout) Size: 150mm Round
Motor Type: Centrifugal
Ductable: Yes (150mm)
View full technical specs further down the page
The Elicent Mini Roof Centrifugal Fan with a 150mm duct exemplifies technical excellence and reliability for centralised ventilation requirements. It is engineered to an IPX5 rating, ensuring robust protection against water ingress, making it suitable for transferring air at a maximum temperature of 60°C. Its design boasts compact dimensions while offering an efficient and economically viable solution for various installations. Constructed from high-grade aluminium and steel sheet with an epoxy finish, it demonstrates remarkable resistance to adverse atmospheric conditions. The fan is equipped with high-performance centrifugal components tailored for roof installations, delivering a substantial airflow capacity, powered by an 85w motor. Enhancing its operational longevity and efficiency is a ball-bearing motor, ensuring smooth operation and ideal for residential and commercial applications. It’s designed for straightforward mounting onto regular PVC plumbing pipes and fittings.
| Manufacturer | Elicent |
|---|---|
| Model Number | 2MF1514 |
| Material | Metal |
| Capacity (m3/hr) | 579 m3/hr |
| Capacity (L/S) | 160.83 l/s |
| Motor Type | Centrifugal |
| Recommended Room Size (Based on Achieving 15 air changes per hour) | 38.6 m3 |
| Noise Level | 52 dB(A) |
| Installation | This fan requires hardwiring by an electrician |
| Installation Location | Roof |
| Ductable? | Ductable |
| Motor Power (Wattage) | 85w |
| Warranty | The manufacturer offers a 2 year replacement warranty (conditions apply). |
| Capacity Disclaimer | All capacity figures and technical data quoted is provided by the manufacturer, Capacity figures are based on the unit freeflowing (not connected to ducting). If you are ducting this unit it is advisable to keep the duct run as short, straight and tight as possible |
| Room Size Recommendation Disclaimer | As stated our "Recommended room size" figures are based on achieving 15 air changes per hour. Generally we have found this to be suitable, however it does not constitute specific advice. |
| IP Rating | IPX5 |
