Kit #4: Med-Large Bathroom Kit TT150 (Up to 37m3)
IN STOCK | Typically dispatches within 1-2 business days
$259.00
Motor Capacity: 520 m3/hr (144.44 l/s)
Motor Type: Mixflow
Kit Includes:
1x TT 150 In Line Fan with Power Cord & Speed Switch(EXVUTT150RV) Click to view fan Specs
1 x Lead and Plug (Includes installed lead & plug connected to high speed)
1 x Internal Vent Cone Ceiling Diffuser 150 mm (EVFLC150) Click to view vent Specs
1 x External Vent 150 mm(EVVUFS150)
1 x Back draft shutter 150 mm(EABDP150VU)
1 x 6m Flexible Duct 150mm(EDNU1506MF)
1 x Duct tape(EATAPED)
View full technical specs further down the page
The kit comes complete and includes an inline fan which is usually placed in the roof space, a vent for the ceiling of the room, a vent for the outside wall or eave and flexible duct to join it all together. It also includes a back draft shutter to stop warm air escaping or cold air coming into the house.
The inline fan included in this kit comes with an inbuilt speed switch which means you can conveniently select either the high or low speed.
Add a Run on timer
This fan can be used with the following run on timer. An electrician will be required to install a 4 pin plug outlet. This timmer allows for the run on period to be adjusted from 0-60 minutes.
Inline exhaust systems allow high volumes of air to be ducted outside instead of into the roof space.

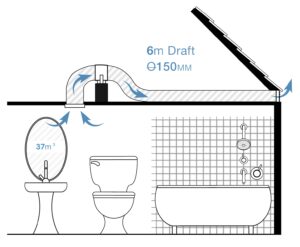

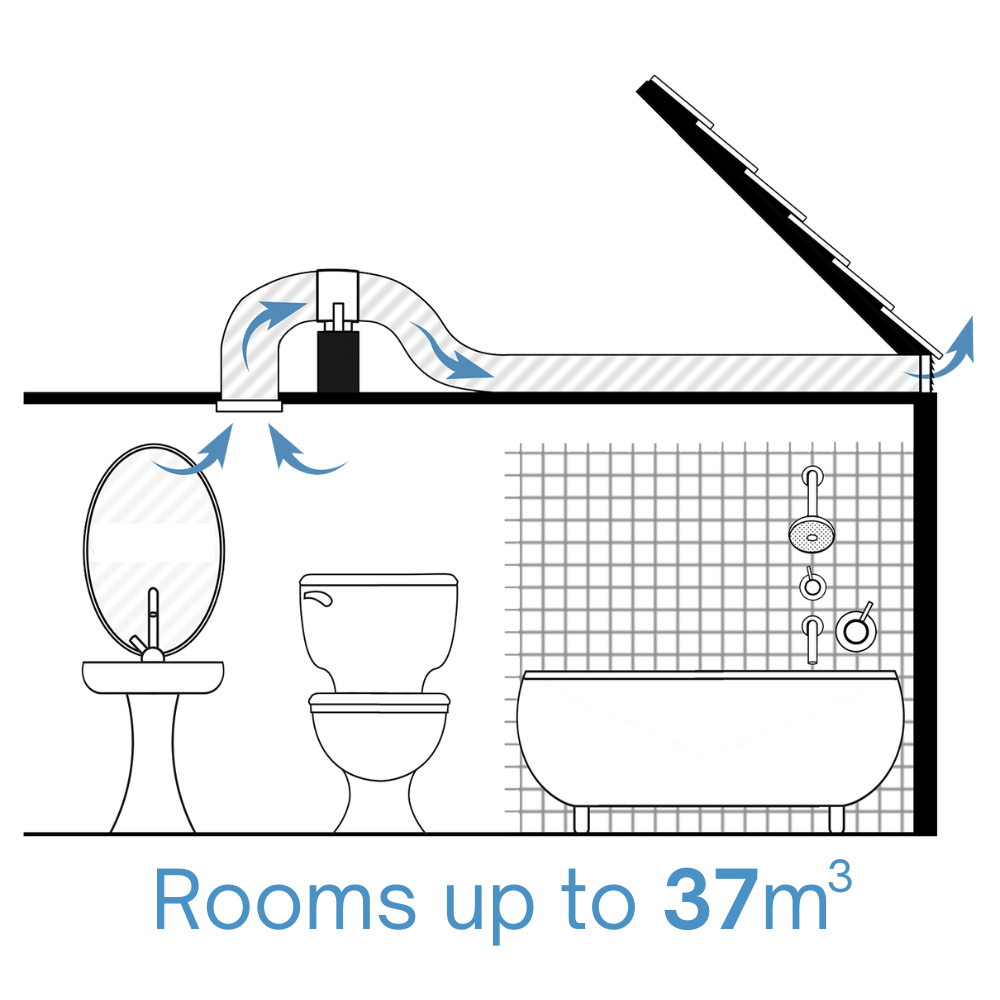

The flow of air is as follows:
Internal ceiling vent – inline fan – back draft shutter – external vent.
Installation
The kit is intended as a “do it yourself” and the fan can be plugged into an available power point in the roof space (connected to a switch in the room). This is usually available in bathrooms, toilets and the like, or an electrician could install it independently of the system installation.
How we calculate the required air volume
For good ventilation, it is recommended to achieve 15 air changes per hour in a bathroom, toilet, laundry or similar. To work this out, calculate the volume of air in the room ( length x width x height, all in meters) and multiply this by 15 to get the required air volume of the fan. Note, this will be adequate in most situations. We recommend that those clients who have a lot of glass or have warmer, longer showers or simply prefer a minimum of steam/moisture get a fan with double or more the recommended capacity.
| Manufacturer | Fanco |
|---|---|
| Installation Statement | This fan comes with a lead and plug for connection to a power socket, To use this product in conjunction with hardwired accessories, an electrician will be required |
| Warranty | Fanco – The manufacturer offers a 2 year replacement warranty (conditions apply) |
| Capacity (m3/hr) | 520 m3/hr |
