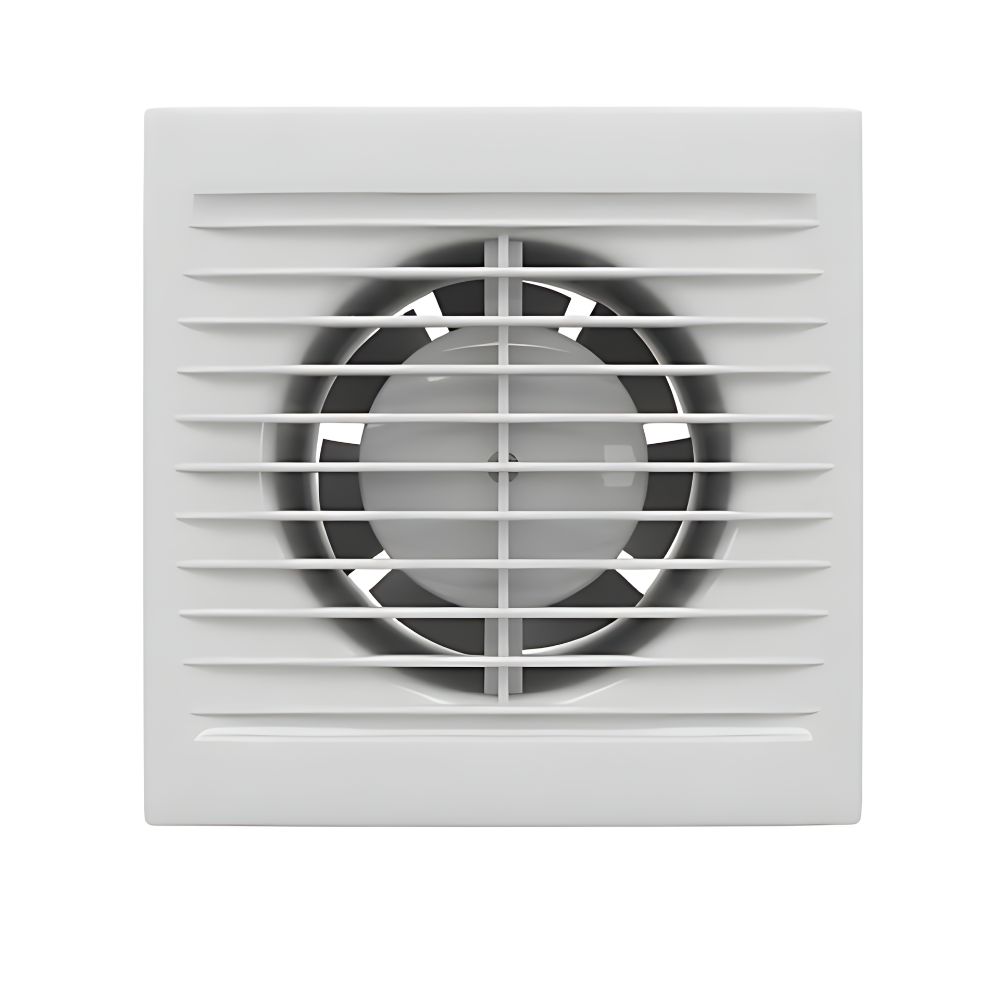

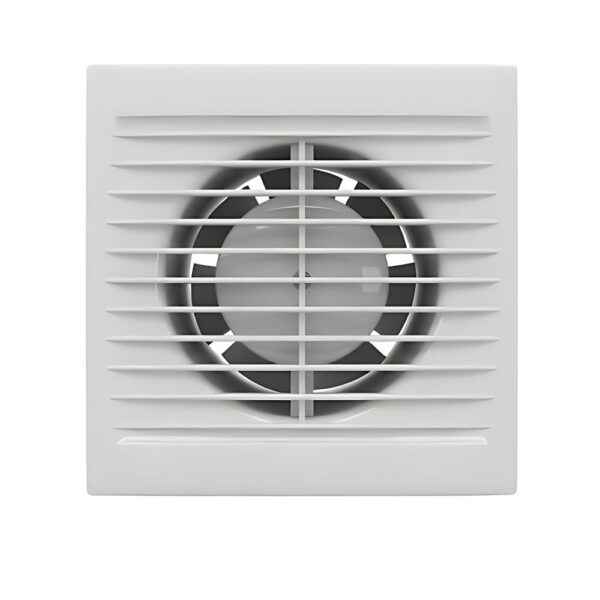

S Series Wall/Ceiling Fan 150mm with Timer
IN STOCK | Typically dispatches within 1-2 business days
Original price was: $129.00.$109.00Current price is: $109.00.
Capacity: 292 m3/hr (81.11 l/s)
Hole (Cutout) Size: 150mm Round
Face Size: 205mm Square
Ductable: Yes (150mm duct diameter)
View full technical specs further down the page
The S Series exhaust fan model is a compact yet capable exhaust fan featuring a simple design. Suitable for small sized household bathrooms and laundries as the fan has a capacity of 293 m3/hr and comes with a fly screen which is easily removed. This package comes with a 1-25 minute variable run on timer. The timer is adjustable and can be set from anything from 1-25 minutes depending on your preference. This will need to be hardwired to the fan by an electrician.
| Manufacturer | Fanco |
|---|---|
| Model Number | EMVUSS3 |
| Colour | White |
| Material | Plastic |
| Hole Size | 150mm |
| Capacity (m3/hr) | 292 m3/hr |
| Capacity (L/S) | 81.11 L/S |
| Recommended Room Size (Based on Achieving 15 air changes per hour) | 19.4 m3 |
| Motor Power (Wattage) | 24w |
| Motor Height | 118mm |
| Noise Level | 38 dB(A) |
| IP Rating | IP34 |
| Voltage | 220 – 240 |
| Installation | This fan requires hardwiring by an electrician |
| Installation Location | Ceiling or Wall |
| Includes Backdraft Shutter | No |
| Ductable? | Ductable |
| Duct Location | Rear Ducted |
| Duct Size | 150mm |
| Warranty | Fanco – The manufacturer offers a 2 year replacement warranty (conditions apply) |
| Capacity Disclaimer | All capacity figures and technical data quoted is provided by the manufacturer, Capacity figures are based on the unit freeflowing (not connected to ducting). If you are ducting this unit it is advisable to keep the duct run as short, straight and tight as possible |
| Room Size Recommendation Disclaimer | As stated our "Recommended room size" figures are based on achieving 15 air changes per hour. Generally we have found this to be suitable, however it does not constitute specific advice. |
