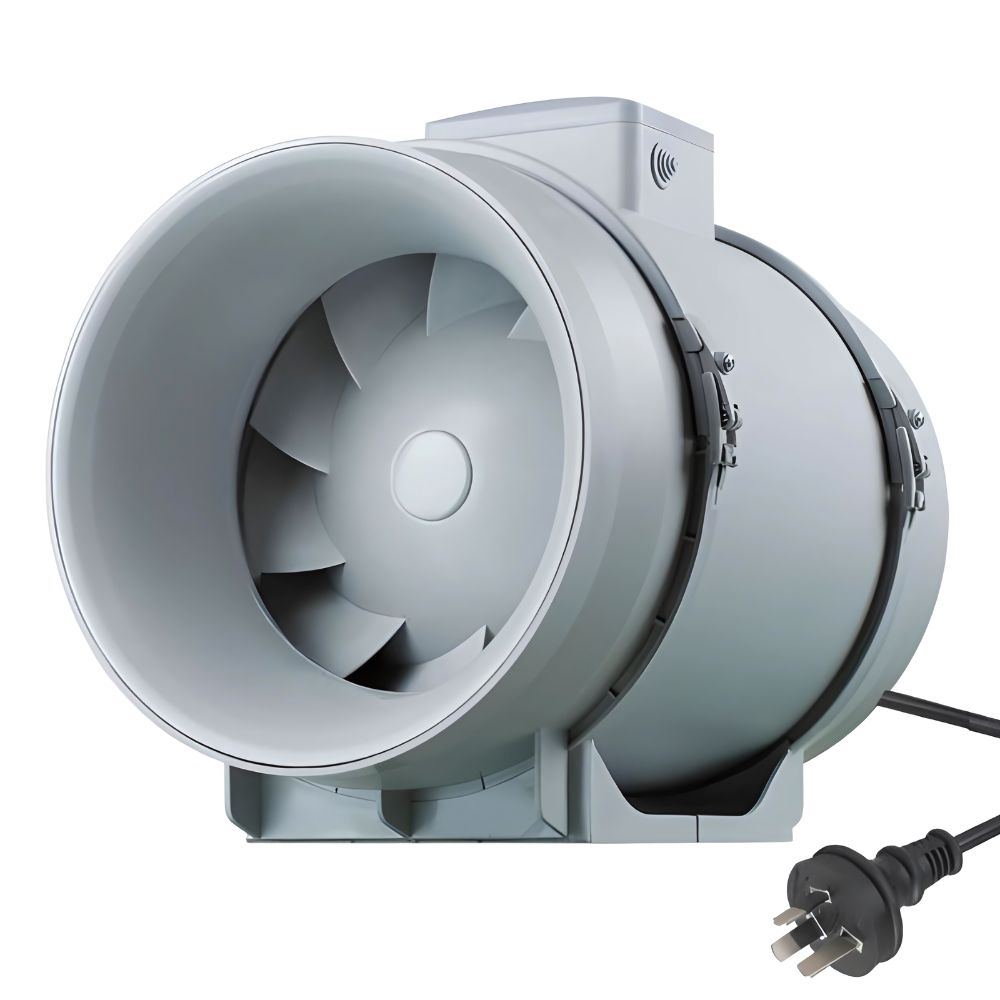

TT Mixflow In-line Fan 200mm In-built Speed Switch & Plug
IN STOCK | Typically dispatches within 1-2 business days
$309.00
Extraction Capacity: 1040 m3/hr (288.88 l/s)
Motor Type: Mixflow
Ductable: Yes (200mm duct diameter)
View full technical specs further down the page
High-performance 200mm in-line mixed-flow exhaust fan designed for both domestic and commercial ventilation. As part of the RV series, this model is engineered for ease of use, featuring a pre-installed lead and plug alongside an integrated two-position speed switch. This design allows for manual speed adjustment without the need for an external speed controller or professional electrical wiring.
Need Accessories? – Scroll to the bottom of the page to view suitable accessories including ducting and vents.
Add a Run on timer
This fan can be used with the following run on timer. An electrician will be required to install a 4 pin plug outlet. This timmer allows for the run on period to be adjusted from 0-60 minutes.
Please note: The product’s actual colour may vary – in some cases, there may be a colour difference between the motor and the intake/outlet points (one may be slightly more grey than the other).
| Manufacturer | Fanco |
|---|---|
| Model Number | TT PRO 200 |
| Material | Plastic |
| Capacity (m3/hr) | 1040 m3/hr |
| Capacity (L/S) | 288.88 L/S |
| Motor Type | Mixflow |
| Recommended Room Size (Based on Achieving 15 air changes per hour) | 69.3 m3 |
| Noise Level | 52 dB(A) |
| IP Rating | IPX4 |
| Voltage | 230 |
| Installation Statement | This fan comes with a lead and plug for connection to a power socket, To use this product in conjunction with hardwired accessories, an electrician will be required |
| Duct Size | 200mm |
| Motor RPM | 2380 |
| Max Temperature of Transferred Air | 60 °C |
| Warranty | Fanco – The manufacturer offers a 2 year replacement warranty (conditions apply) |

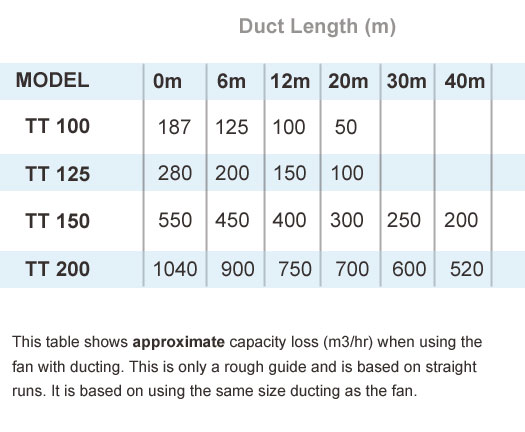

| Capacity Disclaimer | All capacity figures and technical data quoted is provided by the manufacturer, Capacity figures are based on the unit freeflowing (not connected to ducting). If you are ducting this unit it is advisable to keep the duct run as short, straight and tight as possible |
| Room Size Recommendation Disclaimer | As stated our "Recommended room size" figures are based on achieving 15 air changes per hour. Generally we have found this to be suitable, however it does not constitute specific advice. |
| Lead & Plug Customisation Disclaimer | Please be aware that we are unable to accept returns for ‘change of mind’ reasons if a plug is installed. The flex is 1m in length. |
28 reviews for TT Mixflow In-line Fan 200mm In-built Speed Switch & Plug
Only logged in customers who have purchased this product may leave a review.
You may also like…
scott –
Excellent Value & great delivery.
Michael –
Feels and looks quality, nice and quiet whilst still moving a good amount of air. Easy mount and slip system.
Reasonable price.
Tim –
Chris –
Mike –
Does the job well. Well built and reasonably quiet
Hillier Constructions –
Graham –
Great products and price .
Peter –
The mixed-flow 200mm inline blower is excellent quality, and demonstrably has more airflow and is quieter than the one it replaced, and at a reasonable price.
Fouad –
I found this size inline fan is best for a bathroom. On its low setting its enough to exhaust all the air in a medium size bathroom. I also use a door vent on the bottom of the bathroom door to allow efficient air flow.
Andrew –
Very happy with this fan. Much better performance in 12 metres of ducting than an axisl flow fan and not much noisier. Well made product and can be easily cleaned without untaping the ducting. Although this is a two speed fan I am only using the low speed which is more than enough for a heat transfer system. High speed is a little intrusive for this sort of application unless you are running very long lenghts of ducting with multiple outlets.
John –
Does the job well and easy to fit.
Peter –
Fully met requirement, VG quality product
David –
Peter –
Great product, exactly what I was look8ng for.
Michael –
Great products all round and very happy with the customer service.
John Skibola (verified owner) –
It does the job, pushes air better than the original fan. Though we do find the TT Mixflow is loud.
Darryn (verified owner) –
Product works great. Was exactly as advertised on the website.
Tim (verified owner) –
Great output, perfect for my requirements
Andrew Herd –
Not yet installed. Appear to be of high quality with no negatives
Leo Berechree (verified owner) –
good product nice and quiet easy to install
Neil Granter (verified owner) –
Great fan, using for heat transfer. Powerful and quiet on low speed. Plastic clamps both broke, but easy fix with duct tape.
Maria Manners (verified owner) –
This product was a direct replacement of a failed unit that came with our original installation. Replacement was very easy, simply a matter of removing old unit and plugging in new unit. Works as it should and has made our air circulation system as new.
David Holmes (verified owner) –
Koos Foeken (verified owner) –
Great product, sad I have to fill this box to get 12 more characters so I can complete your survey.
Mark Ellis (verified owner) –
ralph winkler (verified owner) –
Powerful, well built and designed
Tayla Carter (verified owner) –
Jason Lindridge –
