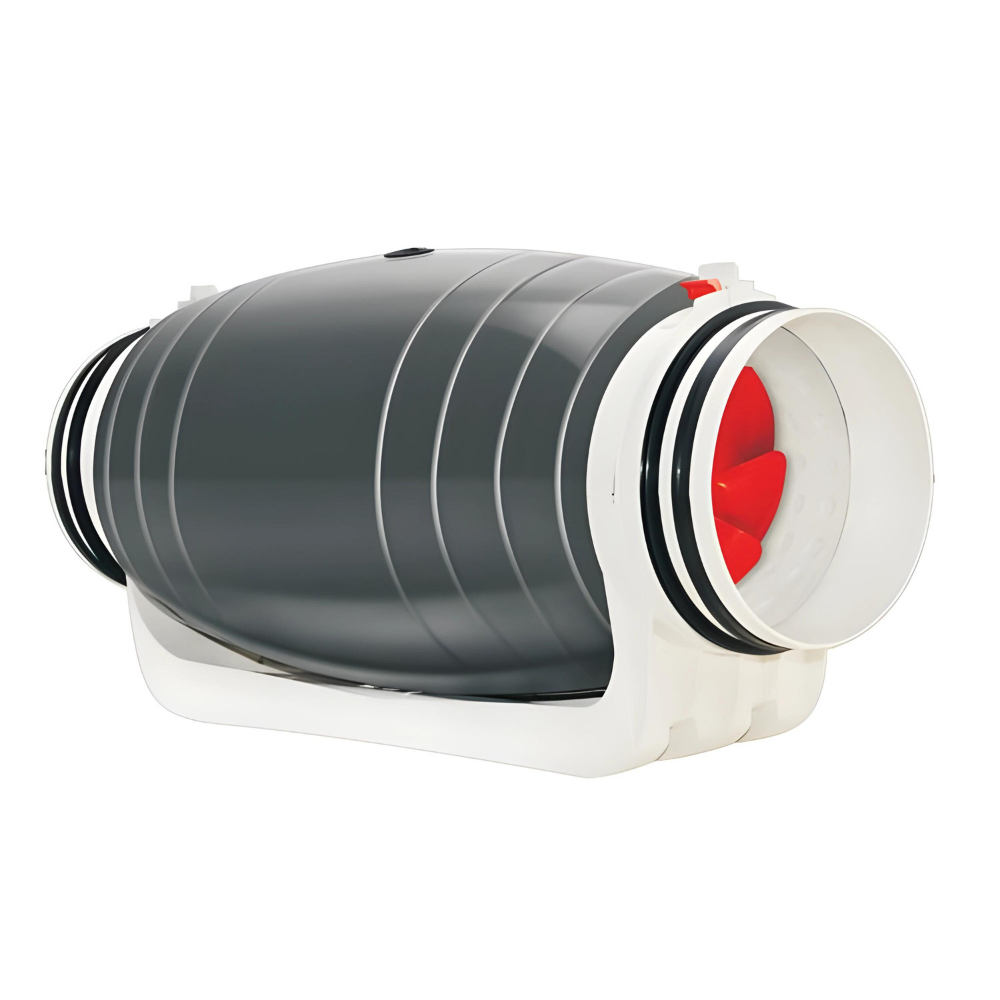

Vent-Axia EC Acoustic Mixed Flow Inline Fan 150mm w/ Lead & Plug + Speed Controller
Original price was: $545.00.$495.00Current price is: $495.00.
Extraction Capacity: 612 m3/hr (170 l/s)
Motor Type: Mixflow
Ductable: Yes (150mm duct diameter)
View full technical specs further down the page
The new ECSM150 acoustic inline fan from Vent-Axia is designed for quick and easy install to provided ultra-quiet ducted ventilation. Designed with inbuilt acoustic insulation which reduces noise whilst maintaining great airflow. Fitted with an energy efficient, long life brushless EC motor, the fan is designed to minimise energy use whilst providing a long trouble-free life.

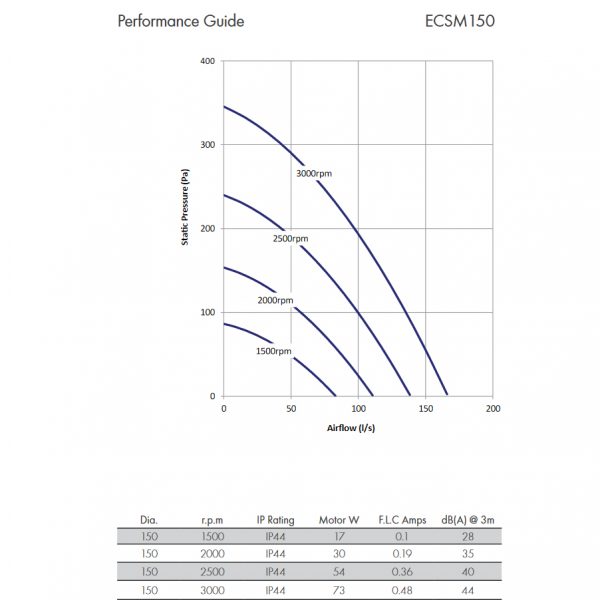

Please note: This fan comes with a lead and plug and a variable speed control attached to the power cord (see image gallery). Also in the image gallery is some more information on performance at different speeds, for example at 1500 rpm the fan produces a mere 28 dBA and consumes only 17 watts.
————-
This product is currently Out of Stock with no expected arrival date. For this reason it cannot be purchased. If you would like some options for suitable alternatives please contact us
| Manufacturer | Vent-Axia |
|---|---|
| Material | Plastic |
| Capacity (m3/hr) | 612 m3/hr |
| Capacity (L/S) | 170 L/S |
| Motor Power (Wattage) | 73w |
| Motor Type | Mixflow |
| Recommended Room Size (Based on Achieving 15 air changes per hour) | 83 m3 |
| Noise Level | 44 dB(A) |
| IP Rating | IP44 |
| Voltage | 220 – 240 |
| Installation | This fan comes with a lead and plug for connection to a power socket |
| Duct Size | 150mm |
| Motor RPM | 3000 |
| Max Temperature of Transferred Air | Not Published |
| Warranty | Vent-Axia – The manufacturer offers a 2 years replacement warranty (Commercial), Vent-Axia – The manufacturer offers a 5 years replacement warranty (Residential) |
| Capacity Disclaimer | All capacity figures and technical data quoted is provided by the manufacturer, Capacity figures are based on the unit freeflowing (not connected to ducting). If you are ducting this unit it is advisable to keep the duct run as short, straight and tight as possible |
| Lead & Plug Customisation Disclaimer | Please be aware that we are unable to accept returns for ‘change of mind’ reasons if a plug is installed. The flex is 1m in length. |
3 reviews for Vent-Axia EC Acoustic Mixed Flow Inline Fan 150mm w/ Lead & Plug + Speed Controller
Only logged in customers who have purchased this product may leave a review.
You may also like…
(6)
Original price was: $69.00.$59.00Current price is: $59.00.
Hugh –
Excellent product, 100% happy. Very quiet and flows a lot of air
Brett –
The inline fan works as expected.
Dave –
Unbelievable how quiet unit actually is. Seems to be moving a lot of air as well
