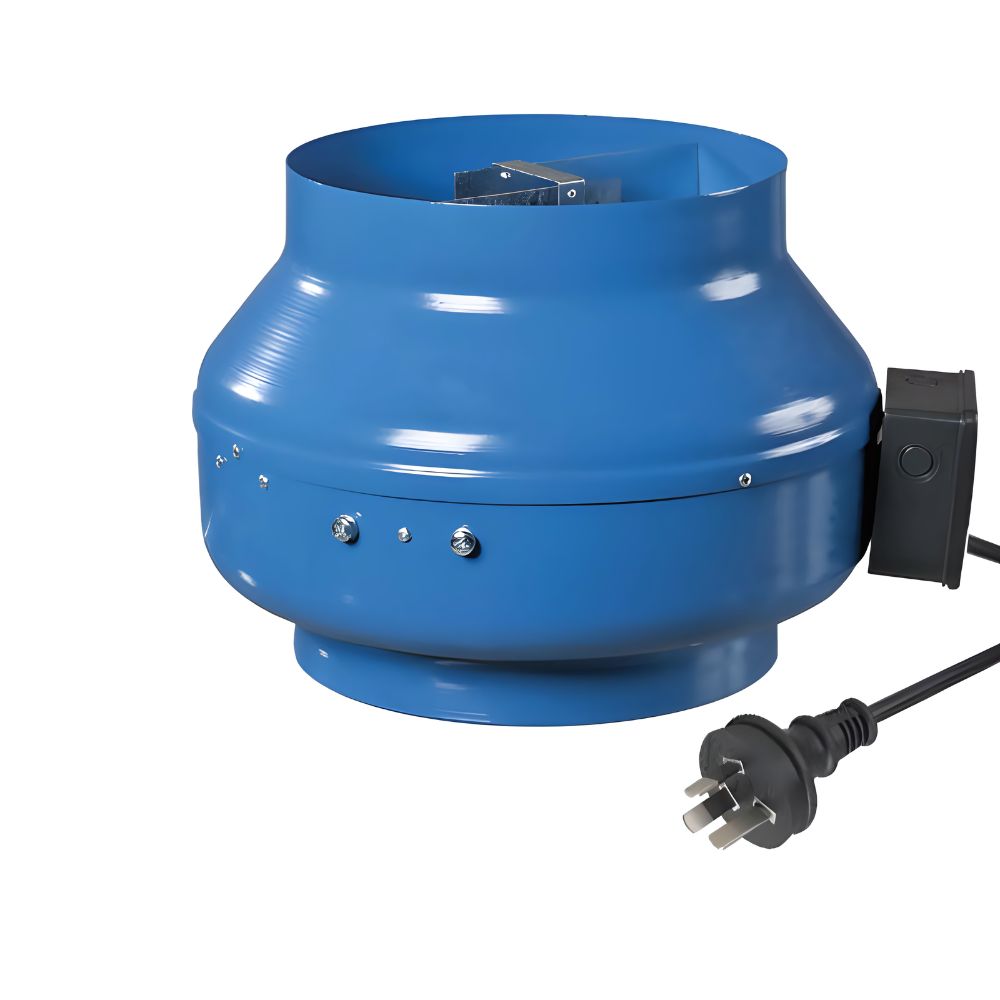

VKM Centrifugal Fan 150mm w/ Lead & Plug
$335.00
Capacity: 580 m3/hr (161.11 l/s)
Motor Type: Centrifugal
Ductable: Yes (150mm duct diameter)
View full technical specs further down the page
A quality in-line fan that is normally ducted and may be used for exhaust, air transfer and other applications. The fan casing is made of steel with a polymeric coating – a superior structure to plastic models.
Need Accessories? – Scroll to the bottom of the page to view suitable accessories, including ducting and vents.
————-
This product is currently Out of Stock with no expected arrival date. For this reason it cannot be purchased. If you would like some options for suitable alternatives please contact us
Add a Run on timer
This fan can be used with the following run on timer. An electrician will be required to install a 4 pin plug outlet. This timmer allows for the run on period to be adjusted from 0-60 minutes.
It is available in 6 sizes, and is a long-life, continuous-rated motor with an IP X4 rating. The package includes mounting brackets (click on the ‘dimensions’ tab to view a picture of the mounting bracket).
Please Note: This fan comes with a ‘flex and plug’ so the fan can simply be plugged into a standard power outlet. A member of our technical team will install this to the fan. Please also be aware that we are unable to accept returns for ‘change of mind’ reasons if a plug is installed. The flex is 1m in length.
| Manufacturer | Fanco |
|---|---|
| Model Number | VKM 150 |
| Material | Metal |
| Capacity (m3/hr) | 580 m3/hr |
| Capacity (L/S) | 161.11 L/S |
| Motor Type | Centrifugal |
| Recommended Room Size (Based on Achieving 15 air changes per hour) | 37 m3 |
| Noise Level | 45 dB(A) |
| IP Rating | IPX4 |
| Voltage | 230 |
| Installation Statement | This fan comes with a lead and plug for connection to a power socket, To use this product in conjunction with hardwired accessories, an electrician will be required |
| Duct Size | 150mm |
| Motor Power (Wattage) | 100w |
| Motor RPM | 2705 |
| Max Temperature of Transferred Air | 55 °C |
| Warranty | Fanco – The manufacturer offers a 2 year replacement warranty (conditions apply) |
| Capacity Disclaimer | All capacity figures and technical data quoted is provided by the manufacturer, Capacity figures are based on the unit freeflowing (not connected to ducting). If you are ducting this unit it is advisable to keep the duct run as short, straight and tight as possible |
| Lead & Plug Customisation Disclaimer | Please be aware that we are unable to accept returns for ‘change of mind’ reasons if a plug is installed. The flex is 1m in length. |
2 reviews for VKM Centrifugal Fan 150mm w/ Lead & Plug
Only logged in customers who have purchased this product may leave a review.
You may also like…
Scott Simpson (verified owner) –
Blows a really good volume of air even at the furthest vent. Can’t hear it running in the roof which is a bonus
Philip Walton (verified owner) –
Easy to install and quiet enough as centrifugal fans are
