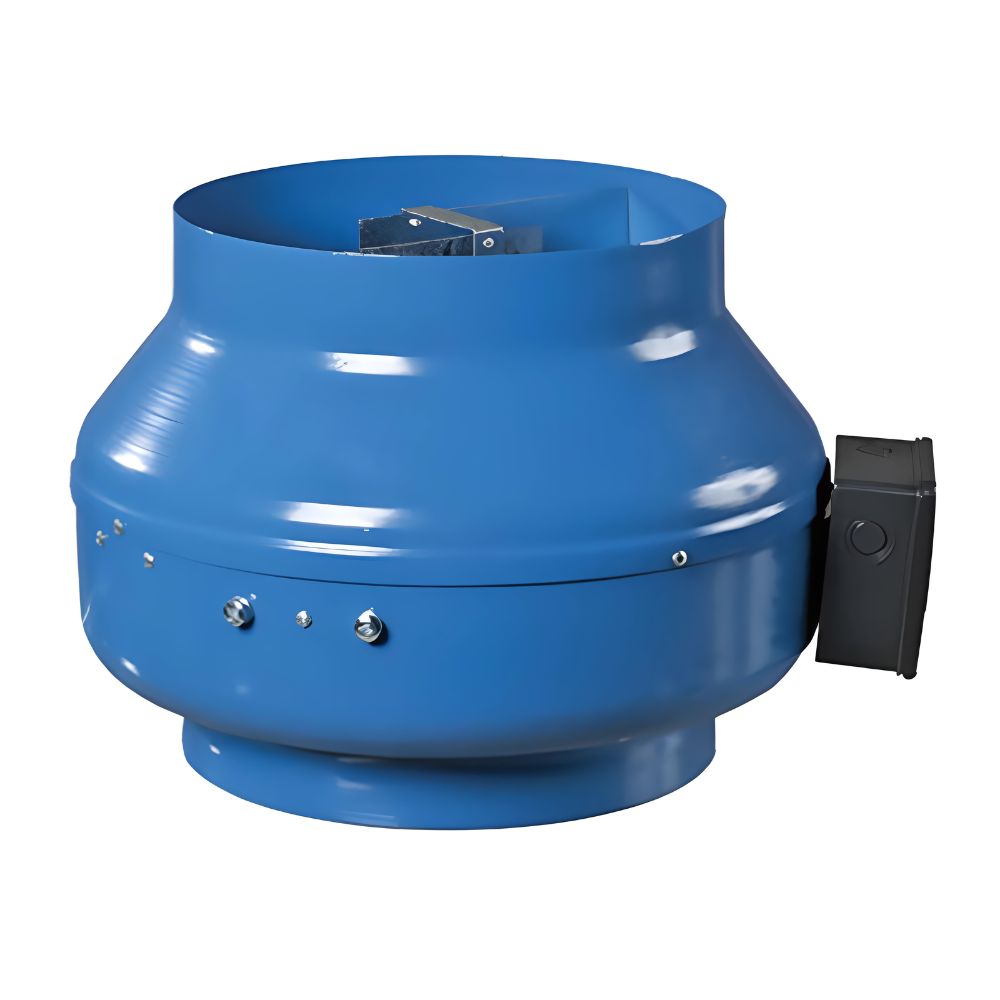

VKM Centrifugal Inline Fan 315mm
IN STOCK | Typically dispatches within 1-2 business days
$599.00
Capacity: 1920 m3/hr (533.33 l/s)
Motor Type: Centrifugal
Ductable: Yes (315mm duct diameter – 350mm is the closest match)
View full technical specs further down the page
Top-tier, high-powered inline centrifugal duct fan designed for robust supply and exhaust ventilation systems. Built specifically for larger commercial, office, public, and demanding industrial premises, this heavy-duty unit is engineered to move massive volumes of air against high static pressure across extensive, complex duct layouts. By utilising an upgraded, high-performance external rotor motor, the VKM 315 maximises airflow performance without requiring a larger duct connection footprint.
Need Accessories? – Scroll to the bottom of the page to view suitable accessories, including ducting and vents.
Add a Run on timer
This fan can be used with the following run on timer. An electrician will be required to install a 4 pin plug outlet. This timmer allows for the run on period to be adjusted from 0-60 minutes.
High-Powered Motor: Engineered with a single-phase, high-powered external rotor motor. The VKM configuration provides significantly higher airflow rates and pressure handling capabilities compared to standard 315mm inline models.
Industrial-Grade Construction: The fan casing is fabricated from durable steel and protected against corrosion with a premium polymeric coating. This heavy-duty design provides excellent mechanical strength and weather protection, making it fully reliable for both indoor environments and outdoor installations.
Long Service Life: The premium motor features dynamically balanced turbines coupled with backward-curved centrifugal blades and heavy-duty ball bearings. It is rated for a continuous operational life of at least 40,000 hours.
Integrated Safety Measures: Overall housing protection rating of IPX4. The motor includes built-in overheating protection with an automatic restart mechanism to prevent thermal strain during demanding cycles.
Versatile Multi-Angle Installation: The fan can be seamlessly integrated into circular air ducts at any angle. Each unit comes complete with standard outer fastening brackets that allow secure mounting to walls or ceilings.
| Manufacturer | Fanco |
|---|---|
| Model Number | VKMS315 |
| Material | Metal |
| Capacity (m3/hr) | 1920 m3/hr |
| Capacity (L/S) | 533.33 L/S |
| Motor Type | Centrifugal |
| Recommended Room Size (Based on Achieving 15 air changes per hour) | 125.3 m3 |
| Noise Level | 54 dB(A) |
| IP Rating | IPX4 |
| Voltage | 230 |
| Installation Statement | This fan requires hardwiring by an electrician |
| Duct Size | 350mm |
| Motor Power (Wattage) | 296w |
| Motor RPM | 2600 |
| Max Temperature of Transferred Air | 50 °C |
| Warranty | Fanco – The manufacturer offers a 2 year replacement warranty (conditions apply) |
| Capacity Disclaimer | All capacity figures and technical data quoted is provided by the manufacturer, Capacity figures are based on the unit freeflowing (not connected to ducting). If you are ducting this unit it is advisable to keep the duct run as short, straight and tight as possible |
| Barcode Number | 4823016226853 |
