4 Room Zoning Kit Installation Example

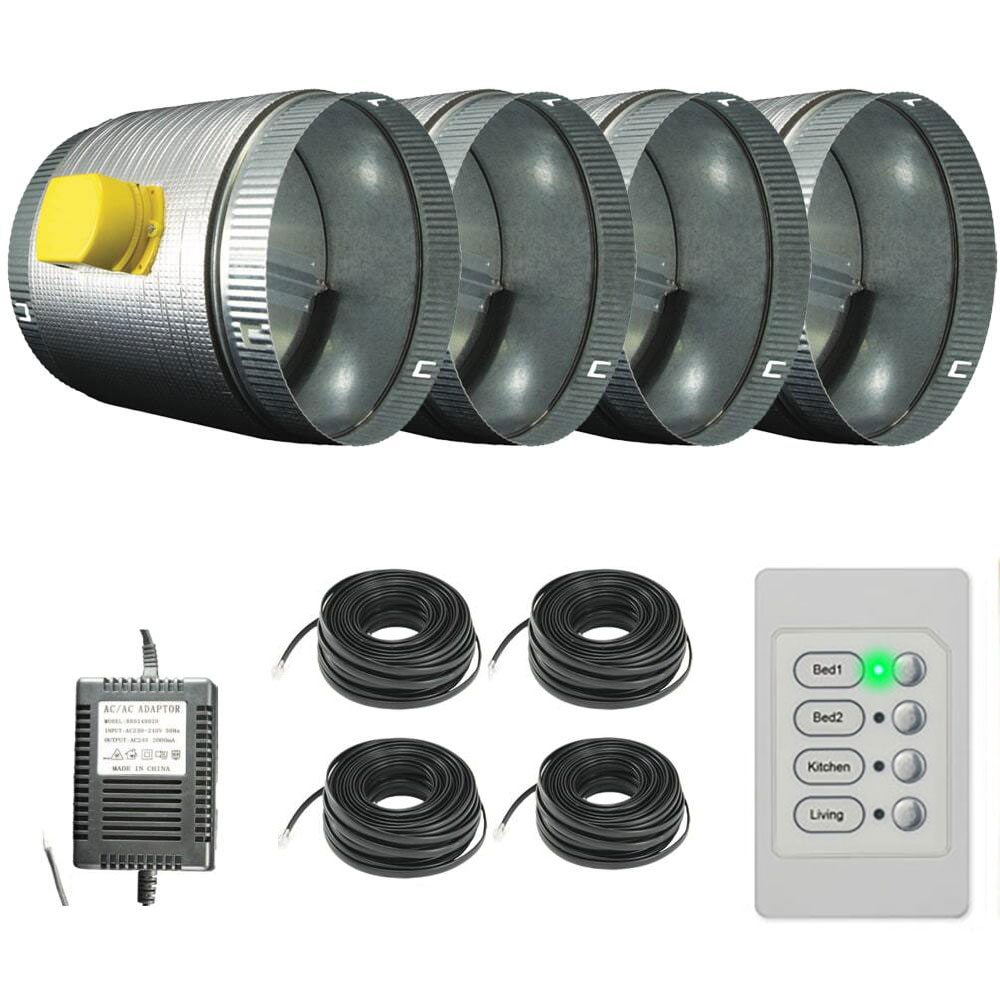

This kit is very easy to install – the 24v dampers (4 provided) connect to the supplied wall control via RJ12 cable. Within this kit we provide 4x 10m lengths, meaning the damper will need to be within 10m of the wall control. If a longer run is required please contact us. The supplied wall control is suitable for up to 4 zones – this is a fairly standard size wall control that will suit common wall plate size. Finally the transformer connects the wall controller to a powerpoint. See diagram below for a visual representation.
High Quality Dampers – Perfect for Heat Transfer
We have selected the highest quality, all metal construction motorised dampers for this kit. The damper blade does not protrude the barrel housing when fully open – it has fully sealed joints (no rivets or spot welds). The casing is insulated, meaning optimised efficiency when using in the context of a heat transfer kit.
