This is an electronic type speed-controller which provides infinite variation of fan speed from 100% down to approximately 30% of full speed.
When used to control a number of identical fans the sum of the full load amps of all the connected fans must not exceed 85% of the maximum rating of the controller (which is 2.0).
Dimensions: 70W × 114H × 36D
Dimensions 110 x 80 x 42 (mm)
The R10 Speed Controller is a variable speed switch specifically designed to be used with selected Expella fans. It’s design features a cover, removable terminals for easy connection and an external trimmer for adjusting the fans minimum operational speed.
Dimensions: 120 x 120 x 43mm
A non-reversible variable electronic speed controller. Maximum load 450w.
220 – 240v 50Hz.
3 steps reversible speed controller for use with the Vitro range of exhaust fans (fitted with transformer).
• ON/OFF switch
• IP42 protection
• Max. load: 100 W (0,5 A)
• Supply voltage: 230V-50/60 Hz
• Sizes: 118 x 118 x 58 mm
• Weight: 0,7 kg
Installation would need to be carried out by a qualified electrician.
The wall mounted Humidity Sensor automatically activates the exhaust fan when humidity levels reach a pre- determined level, reducing moisture in the home and helping to prevent condensation and mould.
The Ventair Motion Sensor and Timer operates with all new and exisiting Ventair exhaust fans. The motion sensor component uses high quality infrared technology to detect signals of someone entering an area of up to 5 meters. The run on timer will work for 1 to 20 minutes of time before switching off.
The Variable Timer runs for approximately 1-25 minutes (can be adjusted) after switching off, to clear steam and odour once you leave the room.
Input: AC230-240V ~ 50Hz
Maximum Load: 500 Watts
Operation Temperature: -10°C to 40°C
Settings: Adjustable from 1 to 25 minutes
Warranty: 12 months replacement
Please Note: An electrician will be required to install this product
Mounting: The sensors are designed for indoor wall surface installation.

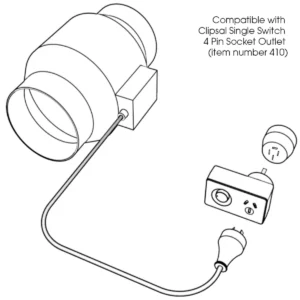

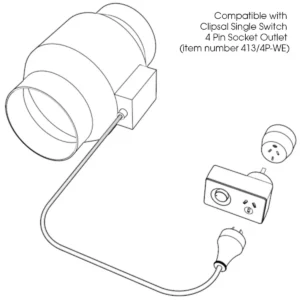

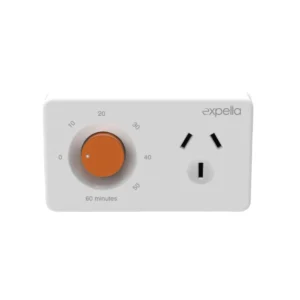

This Run on Timer enables the fan operation within the set time period after pressing the knob for switching the fan OFF. After the set time from 2 to 30 minutes the fan switches automatically OFF. The run-out timer is generally applicable for the fans installed in bathrooms, WC or kitchens.
A simple plug in 24 hour timer, allowing you to specify desired operation time.
Timer Instructions – To Set the Timer:
240v AC 50Hz
10A 2400W Max
A three position switch designed for use with the TT Mixflow Inline fan or VKP Minibox.
The speed controller is used for speed switching of domestic fans which have multispeed motors.
If using this product with an exhaust fan that comes with a lead and plug, please consult your electrician. In most cases the lead and plug will need to be removed from the fan in order to use this switch.
Dimensions of switch plate: L= 88mm x W= 88mm
A surface mounted junction box for use with the VKM variable speed controller.
The Speed controller is used for smooth speed control of domestic fans. Controller must be placed in the mounting box.
Basic Technical Specification
The controller casing is made of plastic. The controller is featured with high efficiency and control accuracy. Switching to the maximum speed is effected by means of regulating the control knob. Regulating starts from the minimum to the maximum voltage value for the fan stable running. The minimum speed is set by means of the potentiometer at PCB. Controller must be installed onto vertical wall in hidden or external mounting box inside premises.
