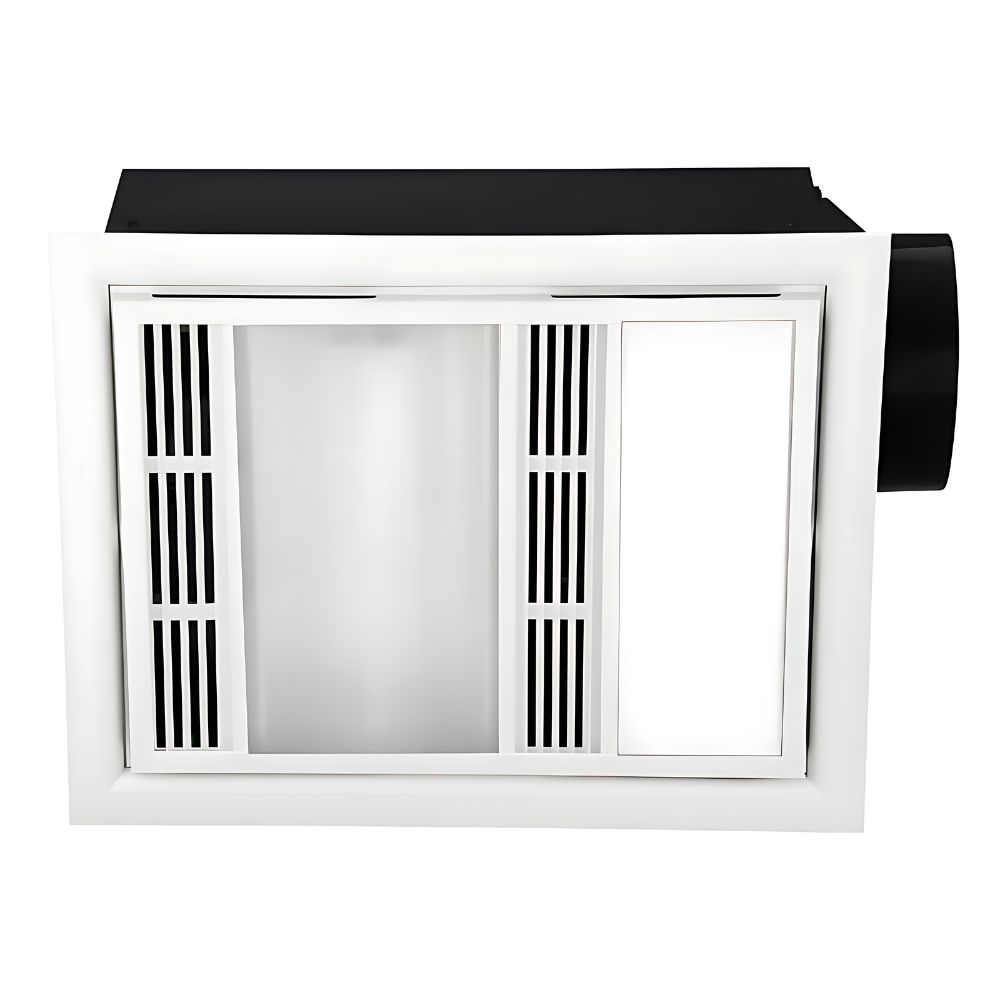

Mercator Domini Exhaust Fan with Heat & CCT Light – White
Rated 5.00 out of 5 based on 1 customer rating
(1 customer review)
$339.00 Original price was: $339.00.$299.00Current price is: $299.00.
SKU: ECMEMIDOLEDWH
Categories: 3 in 1 Bathroom Exhaust Fans, Exhaust Fan With Heat And Light, Exhaust Fans, Mercator Exhaust Fans
| Extraction Rate | 460 m3/hr (127.77 l/s) |
|---|---|
| Hole (Cutout) Size | 440mm x 320mm |
| Light | 1 x 13W tri-colour LED panel light |
| Heat | 1 x 800w Linear heat lamp (R7) |
| Ductable? | Yes (150mm duct diameter) |
The Mercator Domini is a compact 3 in 1 bathroom unit with a built in CCT LED Light. The unit is IP22 rated and is the perfect addition to a modern bathroom!
- 3 year replacement warranty – exclude lamps (2 years warranty for heat lamp)
- High airflow extraction up to 460 m3/hr
- 1 x 800W heat lamps for instant heating
- 1 x 13W tri-colour LED panel light
- Heavy duty metal housing provides durability
- Triple overheating protections by thermostat, thermal cutout and fuse
- Extra safety protection by contact switch activated heat lamp
- Side ducted with draft stopper
- Cut-out template included
Domini LED Light Specs:
- 13w CCT LED Light, select from warm white, neutral white or cool white
- Lumens differ depending on selected light temperature
- Warm White: 900 lumens
- Neutral White: 950 lumens
- Cool White: 900 lumens
Included in the box
- 1 x 3-IN-1 Bathroom Solution
- 1 x 800W linear heat lamp
- 1 x 1.5m flexible aluminium duct
- 1 x 3 gang switch wall controller
- 2 x clamps for ducting
- 1 x external wall grille
| Manufacturer | Mercator |
|---|---|
| Model Number | BH161ESWWH |
| Colour | White |
| Material | Metal |
| Hole Size | 440mm x 320mm |
| Type of Light | LED |
| Capacity (m3/hr) | 460 m3/hr |
| Capacity (L/S) | 127.77 L/S |
| Recommended Room Size (Based on Achieving 15 air changes per hour) | 30.6 m3 |
| Motor Power (Wattage) | 60w |
| Minimum Install Depth | 235mm |
| Noise Level | TBC |
| Installation | This fan requires hardwiring by an electrician |
| Installation Location | Ceiling |
| Includes Backdraft Shutter | Yes |
| Ductable? | Ductable |
| Duct Location | Side Ducted |
| Duct Size | 150mm |
| Warranty | Mercator Domini – The manufacturer offers a 3 year replacement warranty. This excludes the heat lamps which have a 2 year replacement warranty. |
| Capacity Disclaimer | All capacity figures and technical data quoted is provided by the manufacturer, Capacity figures are based on the unit freeflowing (not connected to ducting). If you are ducting this unit it is advisable to keep the duct run as short, straight and tight as possible |
| Room Size Recommendation Disclaimer | As stated our "Recommended room size" figures are based on achieving 15 air changes per hour. Generally we have found this to be suitable, however it does not constitute specific advice. |
