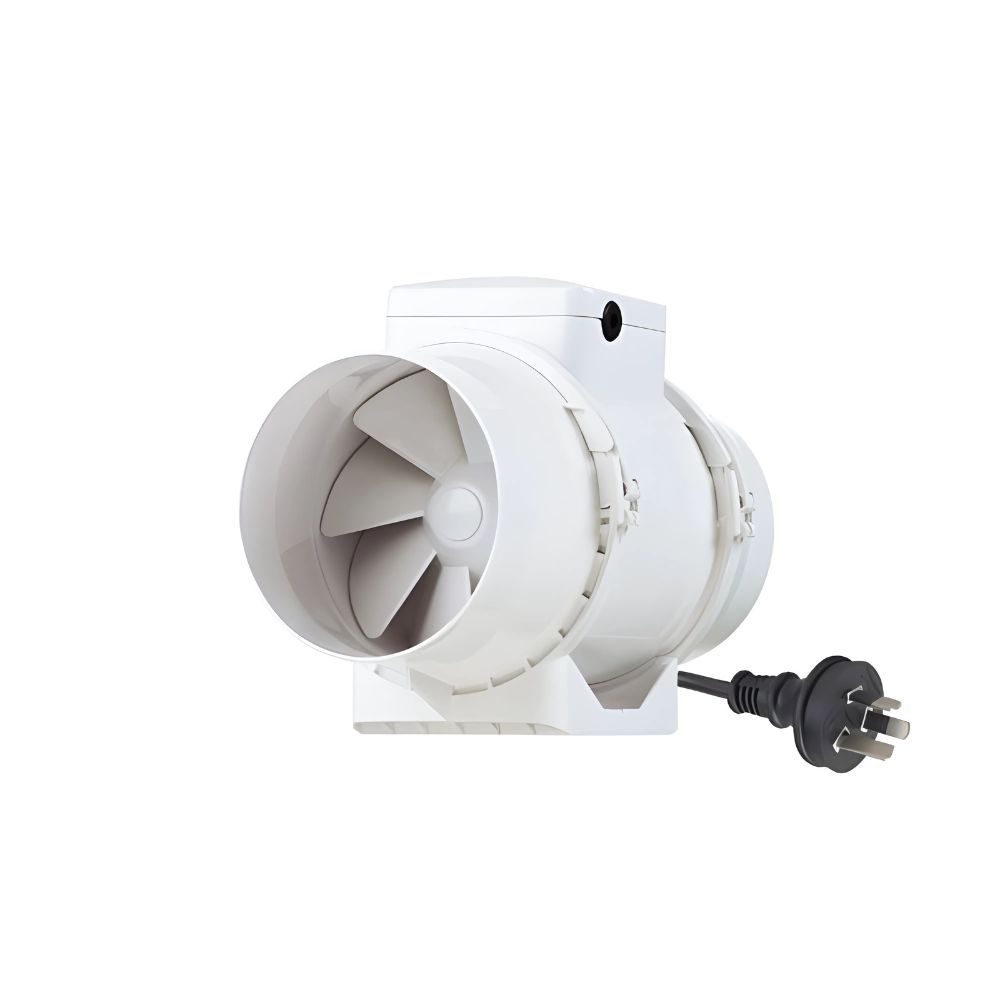

TT Mixflow In Line Fan 100mm w/ Lead & Plug
IN STOCK | Typically dispatches within 1-2 business days
$145.00
High Speed Capacity: 187 m3/hr (51.94 l/s)
Motor Type: Mixflow
Ductable: Yes (100mm duct diameter)
View full technical specs further down the page
A high-quality, versatile solution designed for ducted applications such as air transfer and ventilation. It features a durable, continuous-rated motor built for longevity and offers two distinct performance levels depending on the selected wiring. Users can choose between a high-capacity output of 187 m³/hr or a lower setting of 145 m³/hr, the latter of which provides significantly quieter operation. This fan does not include a speed switch.
Need Accessories? – Scroll to the bottom of the page to view suitable accessories including ducting and vents.
Add a Run on timer
This fan can be used with the following run on timer. An electrician will be required to install a 4 pin plug outlet. This timmer allows for the run on period to be adjusted from 0-60 minutes.
Please Note: This fan comes with a ‘flex and plug’ so the fan can simply be plugged into a standard powerpoint. A member of our technical team will install this to the fan. Please also be aware that we are unable to accept returns for ‘change of mind’ reasons if a plug is installed. The flex is 1m in length. The fan is wired to the highest speed setting, it can be wired to the low setting on request. The product’s actual colour may vary – in some cases, there may be a colour difference between the motor and the intake/outlet points (one may be slightly more grey than the other).
| Manufacturer | Fanco |
|---|---|
| Model Number | TT 100 |
| Material | Plastic |
| Capacity (m3/hr) | 187 m3/hr |
| Capacity (L/S) | 51.94 L/S |
| Motor Type | Mixflow |
| Recommended Room Size (Based on Achieving 15 air changes per hour) | 12.4 m3 |
| Noise Level | 34 dB(A) |
| IP Rating | IPX4 |
| Voltage | 230 |
| Installation Statement | This fan comes with a lead and plug for connection to a power socket |
| Duct Size | 100mm |
| Motor RPM | 2385 |
| Motor Power (Wattage) | 28w |
| Max Temperature of Transferred Air | 60 °C |
| Warranty | Fanco – The manufacturer offers a 2 year replacement warranty (conditions apply) |
| Capacity Disclaimer | All capacity figures and technical data quoted is provided by the manufacturer, Capacity figures are based on the unit freeflowing (not connected to ducting). If you are ducting this unit it is advisable to keep the duct run as short, straight and tight as possible |
| Room Size Recommendation Disclaimer | As stated our "Recommended room size" figures are based on achieving 15 air changes per hour. Generally we have found this to be suitable, however it does not constitute specific advice. |
| Lead & Plug Customisation Disclaimer | Please be aware that we are unable to accept returns for ‘change of mind’ reasons if a plug is installed. The flex is 1m in length. |
12 reviews for TT Mixflow In Line Fan 100mm w/ Lead & Plug
Only logged in customers who have purchased this product may leave a review.
You may also like…
Charlotte (verified owner) –
Review was left without specific comments
Rayphe (verified owner) –
I would like it to move a little more air. More than adequate.
CHRIS (verified owner) –
The product was excellent & is now temporally installed. There was a low speed option which the chat person was able to help with, this was the hole in the website ordering system i wrote of. Easily solved thru chat
Terry (verified owner) –
Buyer left a 5 star review without comment
Brian –
very good………………
Graham –
Running beautifully, quality is great.
Greg –
Mihhail –
Nice little fan, perfect for intake ventilation project that I am doing. Nice and quiet, it is not listed on site as a silent one, but with the specs and the actual noise level it is one of the most silent fans for a small room.
ivan (verified owner) –
Glen (verified owner) –
Malcolm McDonald (verified owner) –
Tim Chalker (verified owner) –
Very quiet, does the job .
