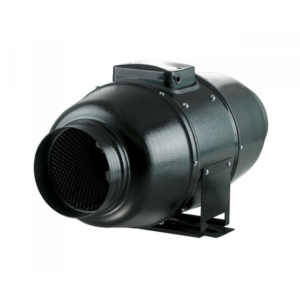

TT Silent Mixflow Inline Fan 150mm w/ Lead & Plug + Speed Switch
IN STOCK | Typically dispatches within 1-2 business days
$449.00
Extraction Capacity: 555 m3/hr (154.16 l/s)
Motor Type: Silent Mixflow
Ductable: Yes (150mm duct diameter)
View full technical specs further down the page
Looking for a top of the range inline fan – look no further!
TT Silent Mixflow In-Line Fan’s steel housing has a black polymer coating and provides an IPX4 protection rating for the fan’s inner components. A layer of mineral sound wool reduces the motor’s noise output to 33 dB(A). It’s hard to find an inline fan with a capacity of 555 m3/hr with such a low noise output. Generally, fans with a similar capacity produce around 50 dB(A). Features an inbuilt 2-position switch on the fan, enabling you to switch between low (405m3/hr) and high speeds (555m3/hr). Includes lead and plug for DIY installation.
Need Accessories? – Scroll to the bottom of the page to view suitable accessories including ducting and vents.
Add a Run on timer
This fan can be used with the following run on timer. An electrician will be required to install a 4 pin plug outlet. This timmer allows for the run on period to be adjusted from 0-60 minutes.
TT Silent Mixflow Inline Fan Key features
- IP Rated: IPX4
- 2 Position Switch
- Included Lead & Plug
- Steel outer casing (polymer-coated)
- A layer of mineral wool sound insulation
- 110-watt ball-bearing motor
- Thermal switches prevent overheating
On high speed, the 150mm TT Silent extracts 555m3/hr from a room, on low speed 405m3/hr. This high-capacity, low-noise inline fan suits wall or ceiling installation. It comes with an inbuilt 2-position switch and fixing brackets to secure the unit in place. Overall, this product represents an excellent option for applications where you need to minimise noise without sacrificing performance.
Click on the dimensions and performance tab below to view overall dimensions and a cross-section of the product.
Note: Please also be aware that we are unable to accept returns for change of mind reasons if a plug is installed.
| Manufacturer | Fanco |
|---|---|
| Material | Metal |
| Capacity (m3/hr) | 555 m3/hr |
| Capacity (L/S) | 154.16 L/S |
| Motor Type | Mixflow |
| Recommended Room Size (Based on Achieving 15 air changes per hour) | 37 m3 |
| Noise Level | 33 dB(A) |
| IP Rating | IPX4 |
| Voltage | 230 |
| Installation Statement | This fan comes with a lead and plug for connection to a power socket |
| Duct Size | 150mm |
| Motor RPM | 2645 |
| Max Temperature of Transferred Air | 60 °C |
| Warranty | Fanco – The manufacturer offers a 2 year replacement warranty (conditions apply) |
| Capacity Disclaimer | All capacity figures and technical data quoted is provided by the manufacturer, Capacity figures are based on the unit freeflowing (not connected to ducting). If you are ducting this unit it is advisable to keep the duct run as short, straight and tight as possible |
| Lead & Plug Customisation Disclaimer | Please be aware that we are unable to accept returns for ‘change of mind’ reasons if a plug is installed. The flex is 1m in length. |
30 reviews for TT Silent Mixflow Inline Fan 150mm w/ Lead & Plug + Speed Switch
Only logged in customers who have purchased this product may leave a review.
You may also like…
Mark (verified owner) –
great product, quiet and easy to install, quality made
product arrived expediently
Darren (verified owner) –
Delivery was fast and got exactly what I ordered
Bri (verified owner) –
Works well, decent airflow and noise fades into the background
John (verified owner) –
The fan was purchased to move hot air from around a fire place installation, it was rated for air temperature up to 65deg with a over temp cut out switch after one hour of running it made a distinct noise that did not stop.The next day when cold it is still making the noise .At this stage I have replaced the fan and have not been able to get back to Pure ventilation to see what can be done
John –
All excellent. Have used it now for approx one month and am very pleased with the performance.
Chris –
I haven’t got there yet but all look ok iv had an election check it out so we can wire it up he’s going to supply me with a 4 core cable so I have a switch on the wall to the unit
Toby –
Graham –
Nick –
Isabel –
Easy to install, great solid quality, great performance
Paul –
Did what we required plus some quiet and easy to install
Matthew –
Very quiet and powerful great fan.
Rob –
The fan was overwhelming with it’s size, but works extremely well and a lot quieter than what I first thought. Worth paying the extra for the reduced noise
Jennifer –
I am very happy with this product. It is quiet and effective.
James –
Gilbert –
We have tested this fan at low temperature. Will not turn at -50 deg C but will start at -40 degC. That meets the requirement. Fan is quiet and effective at drawing fume through a 12 m length of NB150 mm pvc pipe.
Greg –
Fan is working well and performing as expected.
John –
This fan is excellent. Much quieter than normal ceiling fans and really powerful – it does a great job moving the steam and moisture from the bathroom. I had a standard ceiling fan that was struggling and this one is twice as powerful but much quieter.
Adrian –
Working well. Nice and quiet
Graeme –
Good, clear product specifications. Easy to install and works well.
Daniel –
Craig –
Excellent product, will buy another unit soon
Drew –
John –
For for purpose purposes And as quiet As described
David –
really quiet, bigger unit than expected but very happy
Monique (verified owner) –
Great product and very easy to install.
Sean (verified owner) –
A great inflow and very quite.
Jaclyn (verified owner) –
Michael Mariotti (verified owner) –
Haven’t installed yet but feels solid. I tested it without ducting. Seems to move decent amount of air.
Thomas Chandler (verified owner) –
Very impressed with the power and how quiet it was. Easy install and integrated well with the sensor installed. Would highly recommend
