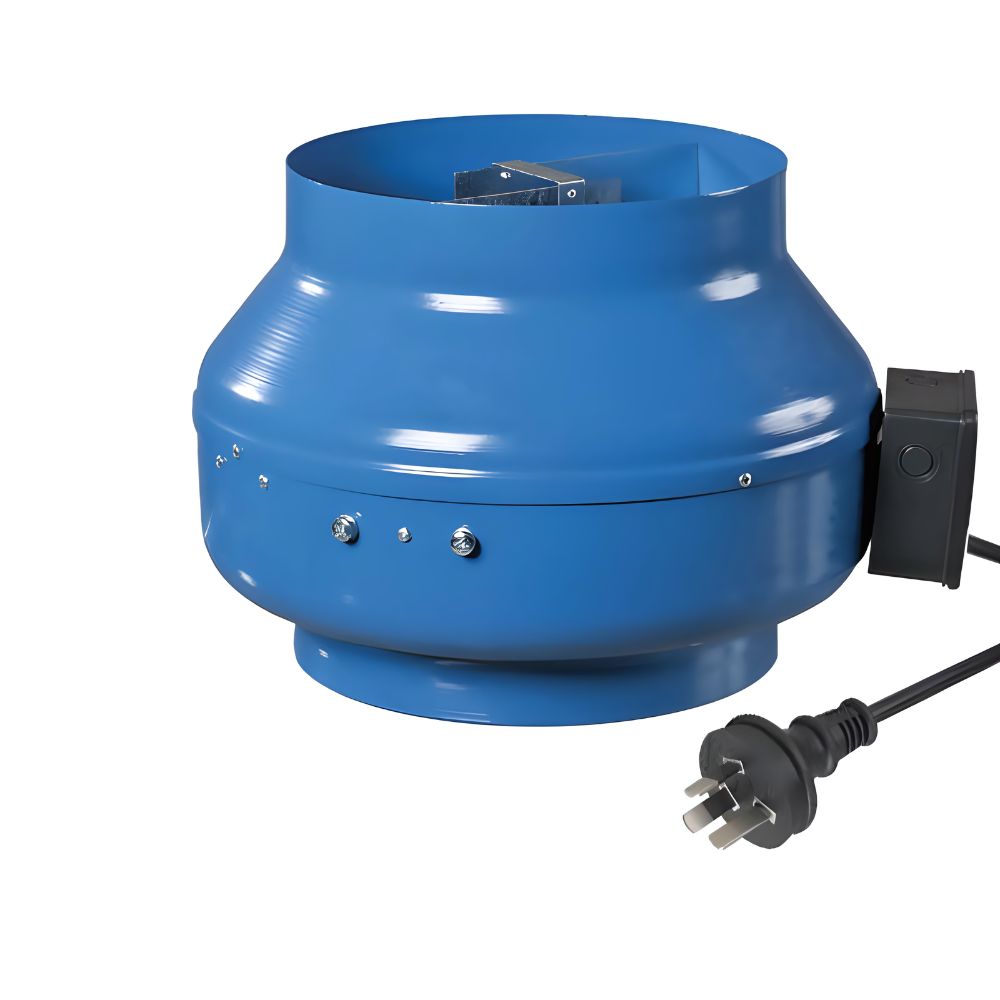

VKM Centrifugal Fan 100mm w/ Lead & Plug
Original price was: $294.00.$254.00Current price is: $254.00.
The VKM is a quality 100mm centrifugal in line fan that is normally ducted and may be used for exhaust, air transfer and other applications.
Capacity: 270 m3/hr (75 l/s)
Motor Type: Centrifugal
Ductable: Yes (100mm duct diameter)
View full technical specs further down the page
The fan casing is made of steel with a polymeric coating – a superior structure to plastic models.
It is available in 6 sizes, and is a long life, continuous rated motor with an IP X 4 rating. The package includes mounting brackets (click on the ‘dimensions’ tab to view a picture of the mounting bracket).
Please Note: This fan comes with a ‘flex and plug’ so the fan can simply be plugged into a standard powerpoint. A member of our technical team will install this to the fan. Please also be aware that we are unable to accept returns for ‘change of mind’ reasons if a plug is installed. The flex is 1m in length.
| Manufacturer | Fanco |
|---|---|
| Model Number | VKM 100 |
| Material | Metal |
| Capacity (m3/hr) | 270 m3/hr |
| Capacity (L/S) | 75 L/S |
| Motor Type | Centrifugal |
| Recommended Room Size (Based on Achieving 15 air changes per hour) | 18 m3 |
| Noise Level | 47 dB(A) |
| IP Rating | IPX4 |
| Voltage | 230 |
| Installation | This fan comes with a lead and plug for connection to a power socket, To use this product in conjunction with hardwired accessories, an electrician will be required |
| Duct Size | 100mm |
| Motor Power (Wattage) | 73w |
| Motor RPM | 2830 |
| Max Temperature of Transferred Air | 55 °C |
| Warranty | Fanco – The manufacturer offers a 2 year replacement warranty (conditions apply) |
| Capacity Disclaimer | All capacity figures and technical data quoted is provided by the manufacturer, Capacity figures are based on the unit freeflowing (not connected to ducting). If you are ducting this unit it is advisable to keep the duct run as short, straight and tight as possible |
| Lead & Plug Customisation Disclaimer | Please be aware that we are unable to accept returns for ‘change of mind’ reasons if a plug is installed. The flex is 1m in length. |
