Punto 100 with Window Kit
123mm – 128mm
|Recommended Room Size (Based on Achieving 15 air changes per hour)|
|Motor Power (Wattage)|
No Figures Published
This fan requires hardwiring by an electrician
|Includes Backdraft Shutter|
Vortice – The manufacturer offers a 2 year replacement warranty (conditions apply).
All capacity figures and technical data quoted is provided by the manufacturer, Capacity figures are based on the unit freeflowing (not connected to ducting). If you are ducting this unit it is advisable to keep the duct run as short, straight and tight as possible
|Room Size Recommendation Disclaimer|
As stated our "Recommended room size" figures are based on achieving 15 air changes per hour. Generally we have found this to be suitable, however it does not constitute specific advice.
|Window Fan Features|
Built in timer

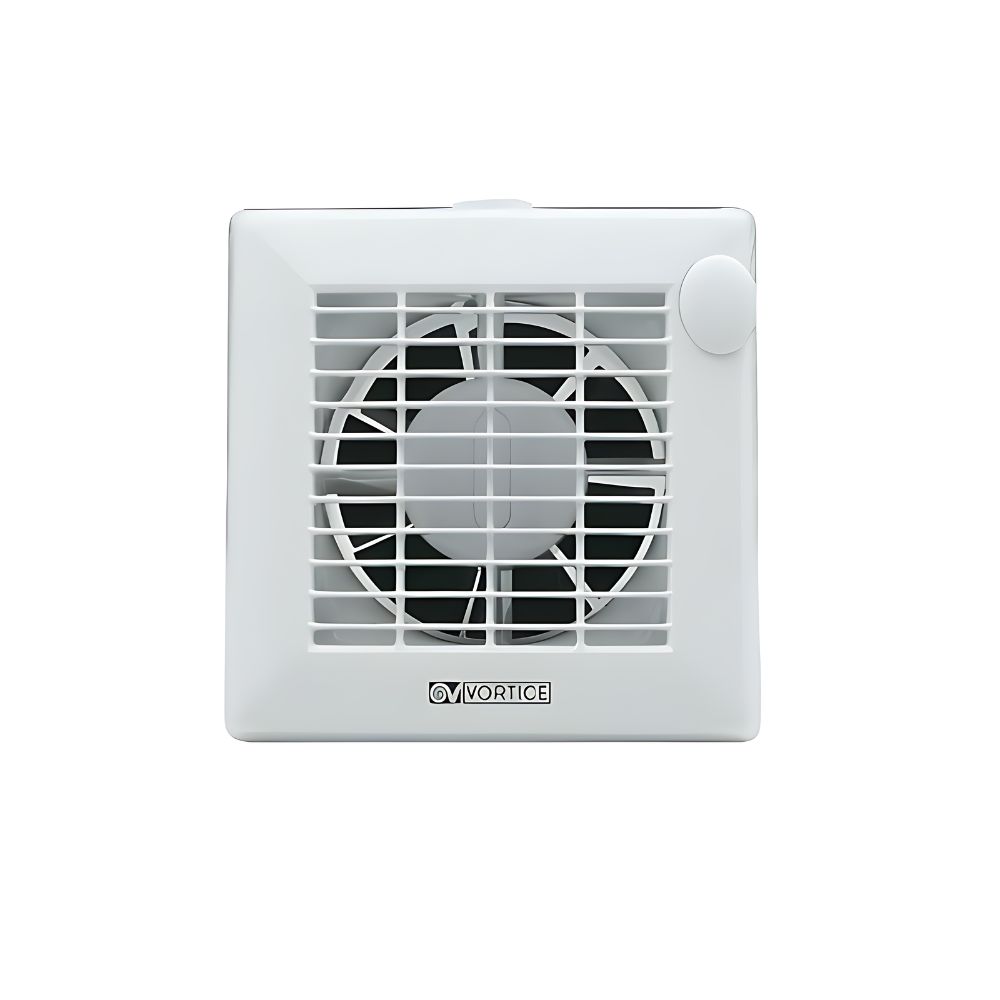

Vortice Punto w Timer & Window Kit 100mm
Capacity: 90 m3/hr (25 l/s)
Hole (Cutout) Size: 123mm – 128mm Round
Face Size: 159mm Square
Ductable: No (Window Kit Supplied)
View full technical specs further down the page
The Italian made Punto is available in 100mm, 120mm and 150mm sizes. Suitable for window mounting as this fan comes with a window mount kit. The required hole size in the glass is between 123mm – 128mm. This model comes with a timer – The timer comes on when the light is switched on. When the light is turned off, the unit continues to operate for 3 to 20 minutes, depending on the timer setting.

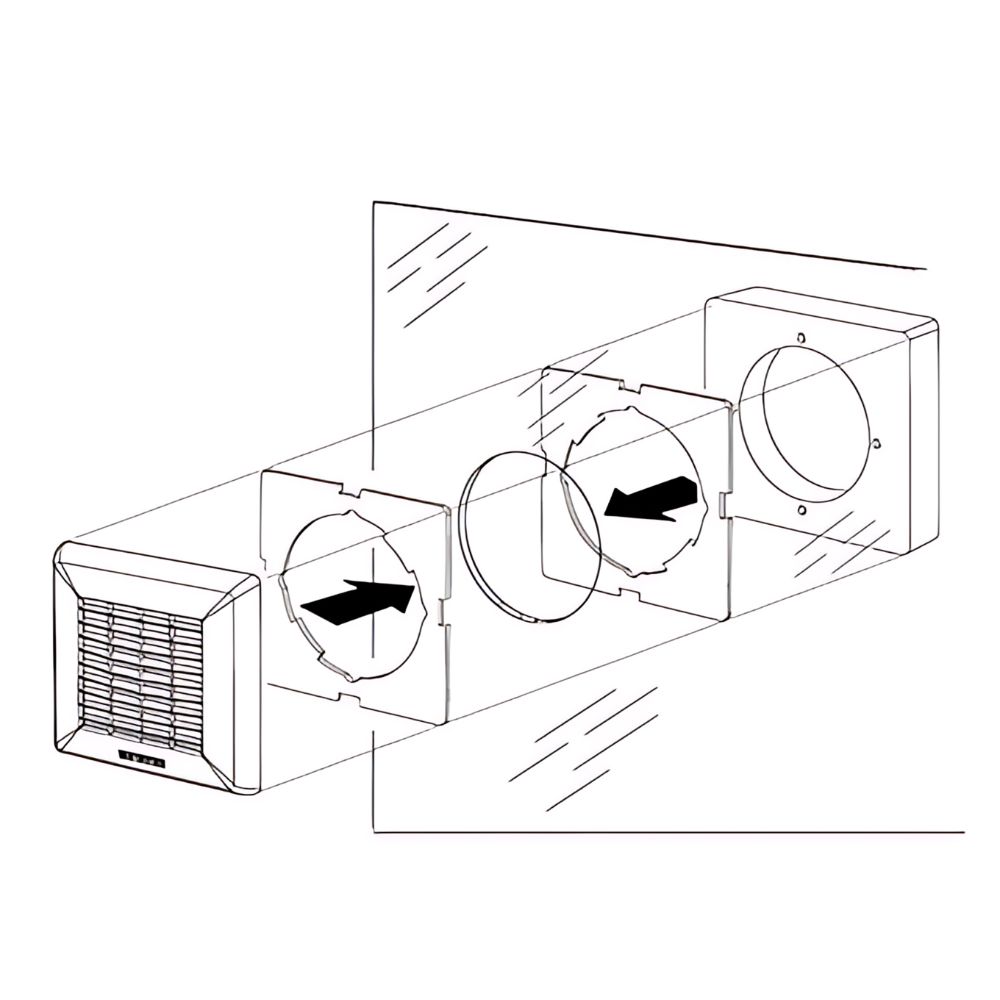

The window kit consists of closed cell expanded polyethylene gasket and external grille , intermediate flange fitting, spacer and a anti UV threaded ABS ring.
