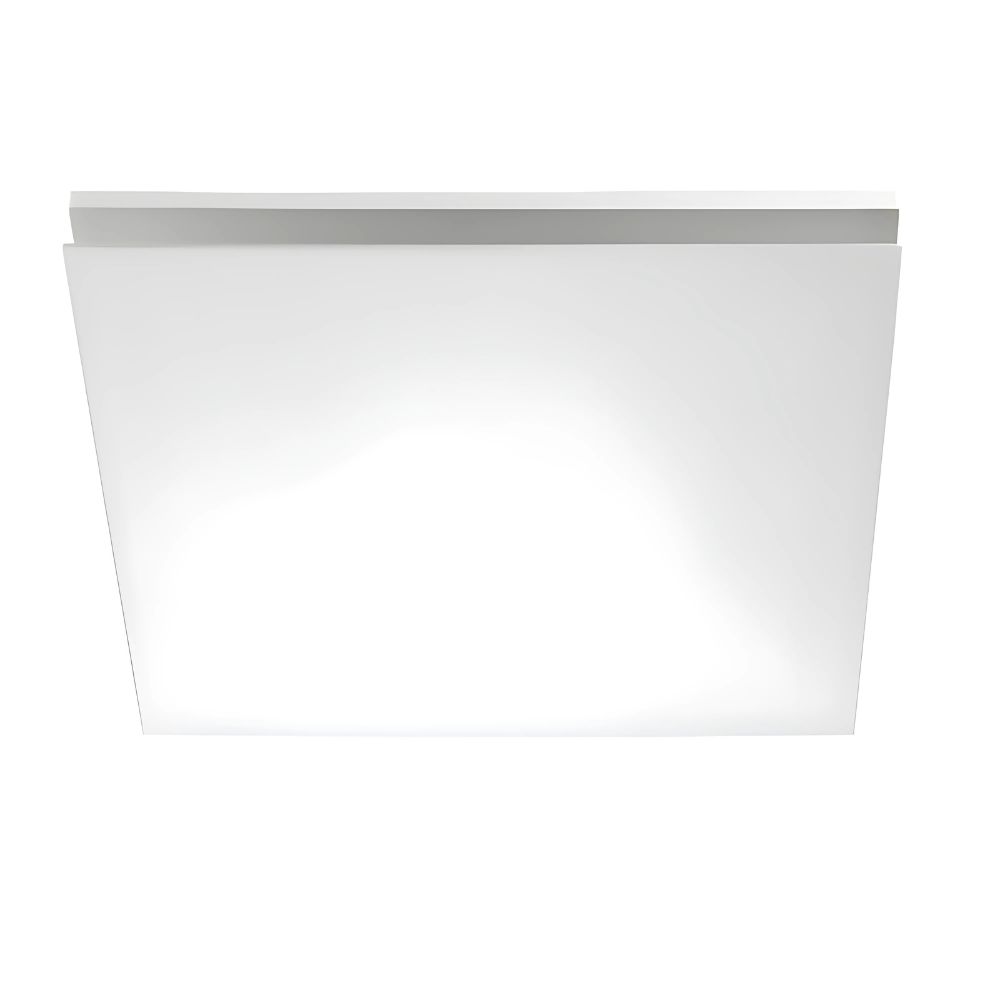

Airbus 150 Square Exhaust Fan – White
Original price was: $129.00.$99.00Current price is: $99.00.
Capacity: 130 m3/hr (36 l/s)
Hole (Cutout) Size: 197mm Round
Face Size: 210mm Square
Ductable: Yes (100mm duct diameter)
View full technical specs further down the page
The Ventair Airbus 150 is a low profile side ducted exhaust fan available in either black or white. This fan comes with a high quality ball bearing motor. A backdraft shutter and lead and plug is included for easy installation. This Airbus is ideal for spaces such as toliets, laundries and powder rooms and has been designed for longer duct runs, for more information please refer to the pressure curve below.
————-
This product is currently Out of Stock with no expected arrival date. For this reason it cannot be purchased. If you would like some options for suitable alternatives please contact us
| Manufacturer | Ventair |
|---|---|
| Model Number | PVPX150WHSQ |
| Colour | White |
| Material | Plastic |
| Hole Size | 197mm |
| Capacity (m3/hr) | 130 m3/hr |
| Capacity (L/S) | 36 L/S |
| Recommended Room Size (Based on Achieving 15 air changes per hour) | 10 m3 |
| Motor Power (Wattage) | 25w |
| Motor Height | 188mm |
| Minimum Install Depth | 220mm |
| Noise Level | 38 dB(A) |
| IP Rating | IPX4 |
| Voltage | 240 |
| Installation | Includes Flex and Plug |
| Installation Location | Ceiling |
| Includes Backdraft Shutter | Yes |
| Ductable? | Ductable |
| Duct Location | Side Ducted |
| Duct Size | 100mm |
| Warranty | Ventair: The manufacturer offers a 5 year warranty on the motor (conditions apply) |
| Capacity Disclaimer | All capacity figures and technical data quoted is provided by the manufacturer, Capacity figures are based on the unit freeflowing (not connected to ducting). If you are ducting this unit it is advisable to keep the duct run as short, straight and tight as possible |
| Room Size Recommendation Disclaimer | As stated our "Recommended room size" figures are based on achieving 15 air changes per hour. Generally we have found this to be suitable, however it does not constitute specific advice. |
2 reviews for Airbus 150 Square Exhaust Fan – White
Only logged in customers who have purchased this product may leave a review.
You may also like…
Malcolm –
I have purchased the Airbus extractors and they are extremely effective. However the noise level is much higher than noted. Much higher. It is certainly not 42db as quoted, but 60db when using my phone.
Debra –
Quiet, looks great easy install
