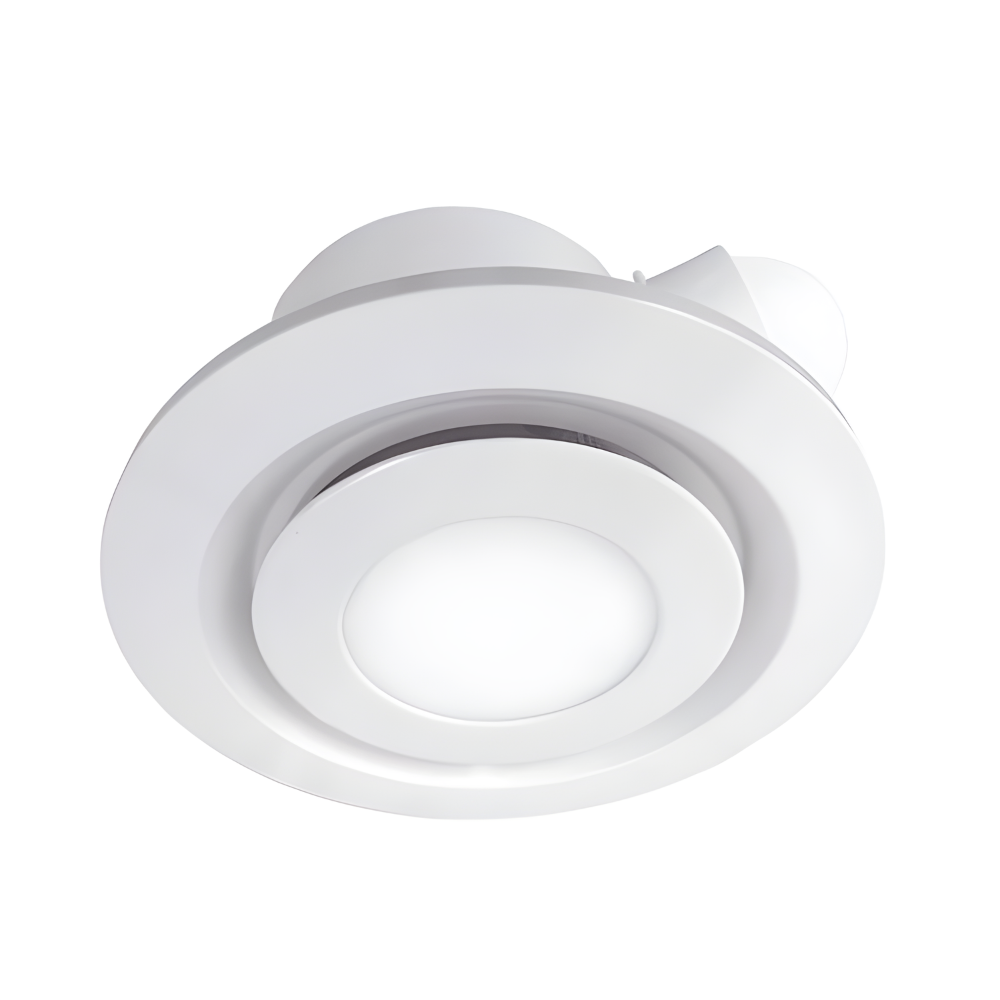

Airbus AC 200 Round Exhaust Fan with CCT LED Light – White
IN STOCK | Typically dispatches within 3-5 business days.
$195.00
Capacity: 175 m3/hr (48.61 l/s)
Light: 10w LED (Warm/Natural/Cool)
Hole (Cutout) Size: 240mm Round
Face Size: 268mm Round
Ductable: Yes (100mm duct diameter)

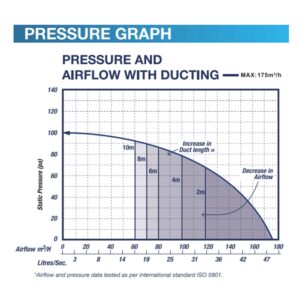

The Ventair Airbus is a low-profile side ducted exhaust fan with a white finish. It comes with a high-quality ball-bearing motor. A backdraft shutter and two leads and plugs are included for easy installation. This allows you to use both the light and the motor individually or simultaneously. The Airbus has been designed for longer duct runs. For more information, please refer to the pressure curve below. This model also has a 10w Tri-colour LED light (3,000K, 4200K or 6,500K).
| Manufacturer | Ventair |
|---|---|
| Model Number | PVPX200R + ABGHFLED200WHRDR |
| Colour | White |
| Material | Plastic |
| Hole Size | 240mm |
| Type of Light | LED |
| Capacity (m3/hr) | 175 m3/hr |
| Capacity (L/S) | 48.61 L/S |
| Recommended Room Size (Based on Achieving 15 air changes per hour) | 10 m3 |
| Motor Power (Wattage) | 30w |
| Noise Level | 38 dB(A) |
| IP Rating | IPX4 |
| Installation | This fan comes with a lead and plug for connection to a power socket |
| Installation Location | Ceiling |
| Includes Backdraft Shutter | Yes |
| Ductable? | Ductable |
| Duct Location | Side Ducted |
| Duct Size | 100mm |
| Warranty | Ventair: The manufacturer offers a 2 year warranty on the LED Panel., Ventair: The manufacturer offers a 5 year warranty on the motor (conditions apply) |
| Capacity Disclaimer | All capacity figures and technical data quoted is provided by the manufacturer, Capacity figures are based on the unit freeflowing (not connected to ducting). If you are ducting this unit it is advisable to keep the duct run as short, straight and tight as possible |
| Room Size Recommendation Disclaimer | As stated our "Recommended room size" figures are based on achieving 15 air changes per hour. Generally we have found this to be suitable, however it does not constitute specific advice. |
| Room Size | Medium (10m3 – 20m3), Small (Up to 10m3) |
| Design | Round |
| Barcode Number | 9339310015383 + 9339310015185 |
6 reviews for Airbus AC 200 Round Exhaust Fan with CCT LED Light – White
Only logged in customers who have purchased this product may leave a review.
You may also like…
Dene –
Denis –
Rob –
Good quality product. Simple installation
Jose –
Matt –
Fast shipping and quality fans
Karen Hughes (verified owner) –
Was exactly what I was after and fitted easily
