3 Modes:
Run – 20 minutes all round performance, then back to 24/7
Boost – 10 minutes rapid exhaust, then back to 24/7
24/7 – Continuous extraction for a healthier living environment
3 Modes

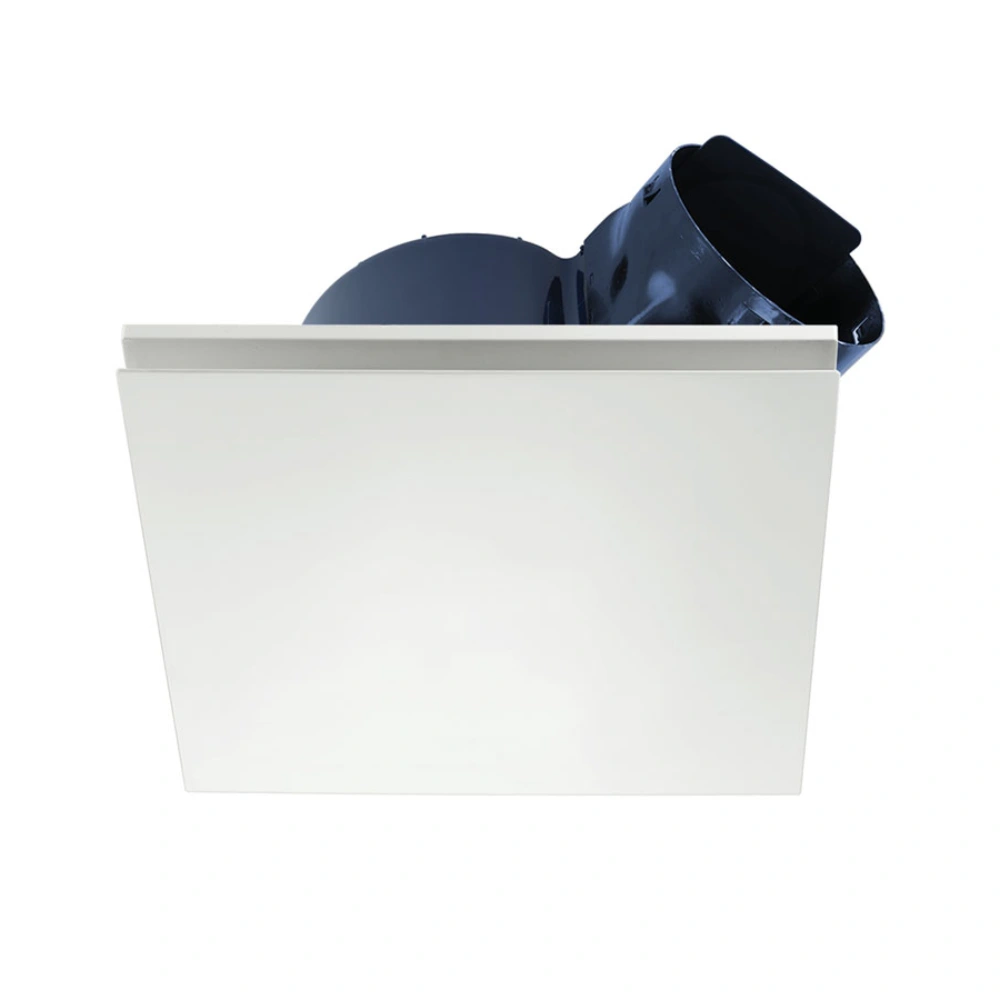

Airbus EC 500 Exhaust Fan with Square Cover and Wall Control – White
$349.00
Capacity: 510 m3/hr (141.67 l/s)
Hole (Cutout) Size: 300mm Round
Face Size: 326mm Square
Ductable: Yes (150mm duct diameter)
View full technical specs further down the page
The Ventair Airbus EC 500 Square is a high quality ceiling exhaust fan, designed for continuous ventilation that is economical. The three speed EC motor ensures minimal operating costs while also ensuring low noise levels. It comes with a wireless wall control that can select boost, run and 24/7 modes. The Airbus has been designed for longer duct runs, for more information please refer to the pressure curve below.
| Manufacturer | Ventair |
|---|---|
| Colour | White |
| Material | Plastic |
| Hole Size | 300mm |
| Capacity (m3/hr) | 510 m3/hr |
| Capacity (L/S) | 141.67 L/S |
| Motor Power (Wattage) | 80w |
| Motor Height | 195mm |
| Minimum Install Depth | 220mm |
| Noise Level | 44 dB(A) |
| IP Rating | IPX4 |
| Voltage | 240 |
| Installation | This fan comes with a lead and plug for connection to a power socket |
| Installation Location | Ceiling |
| Includes Backdraft Shutter | Yes |
| Ductable? | Ductable |
| Duct Location | Side Ducted |
| Duct Size | 150mm |
| Warranty | Ventair: The manufacturer offers a 5 year warranty on the motor (conditions apply) |
| Capacity Disclaimer | All capacity figures and technical data quoted is provided by the manufacturer, Capacity figures are based on the unit freeflowing (not connected to ducting). If you are ducting this unit it is advisable to keep the duct run as short, straight and tight as possible |
| Room Size Recommendation Disclaimer | As stated our "Recommended room size" figures are based on achieving 15 air changes per hour. Generally we have found this to be suitable, however it does not constitute specific advice. |
