AXC Centrifugal Fan 100mm
Original price was: $219.00.$185.00Current price is: $185.00.
Capacity: 200 m3/hr (55.55 l/s)
Motor Type: Centrifugal
Ductable: Yes (100mm duct diameter)
AXC Centrifugal Fan Technical Spec sheet
View full technical specs further down the page

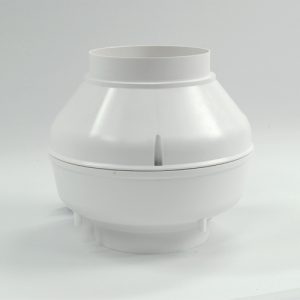

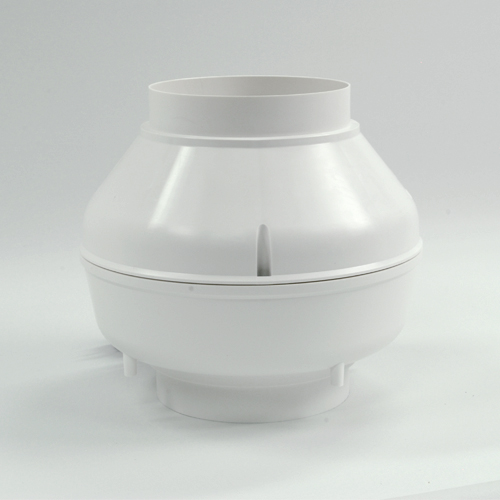

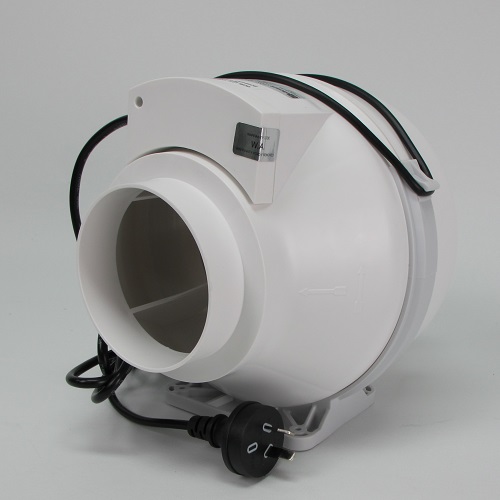

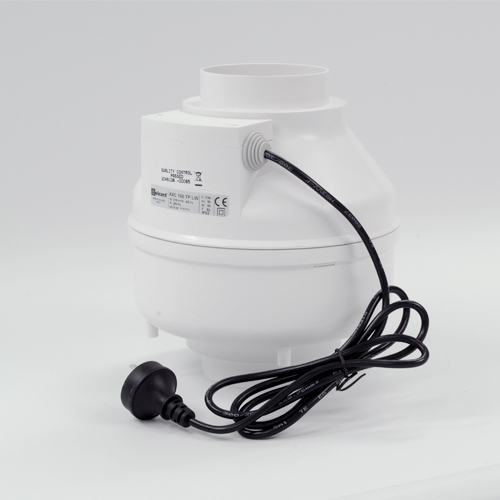

The AXC TP high performance centrifugal in-line fans are available in 4 sizes from 100mm diameter to 160mm diameter. These are suitable for ducted ventilation systems in residential, commercial and industrial applications. The fan comes with a plastic mounting bracket.
————-
This product is currently Out of Stock with no expected arrival date. For this reason it cannot be purchased. If you would like some options for suitable alternatives please contact us
| Manufacturer | Elicent |
|---|---|
| Model Number | AXC 100 TP |
| Material | Plastic |
| Capacity (m3/hr) | 200 m3/hr |
| Capacity (L/S) | 56 L/S |
| Motor Type | Centrifugal |
| Noise Level | 36.1dB(A) |
| Recommended Room Size (Based on Achieving 15 air changes per hour) | 13.3 m3 |
| IP Rating | IPX2 |
| Voltage | 230 |
| Installation | This fan comes with a lead and plug for connection to a power socket, To use this product in conjunction with hardwired accessories, an electrician will be required |
| Duct Size | 100mm |
| Motor Power (Wattage) | 33w |
| Max Temperature of Transferred Air | 50 °C |
| Warranty | Elicent – The manufacturer offers a 2 year replacement warranty (conditions apply) |
| Capacity Disclaimer | All capacity figures and technical data quoted is provided by the manufacturer, Capacity figures are based on the unit freeflowing (not connected to ducting). If you are ducting this unit it is advisable to keep the duct run as short, straight and tight as possible |
