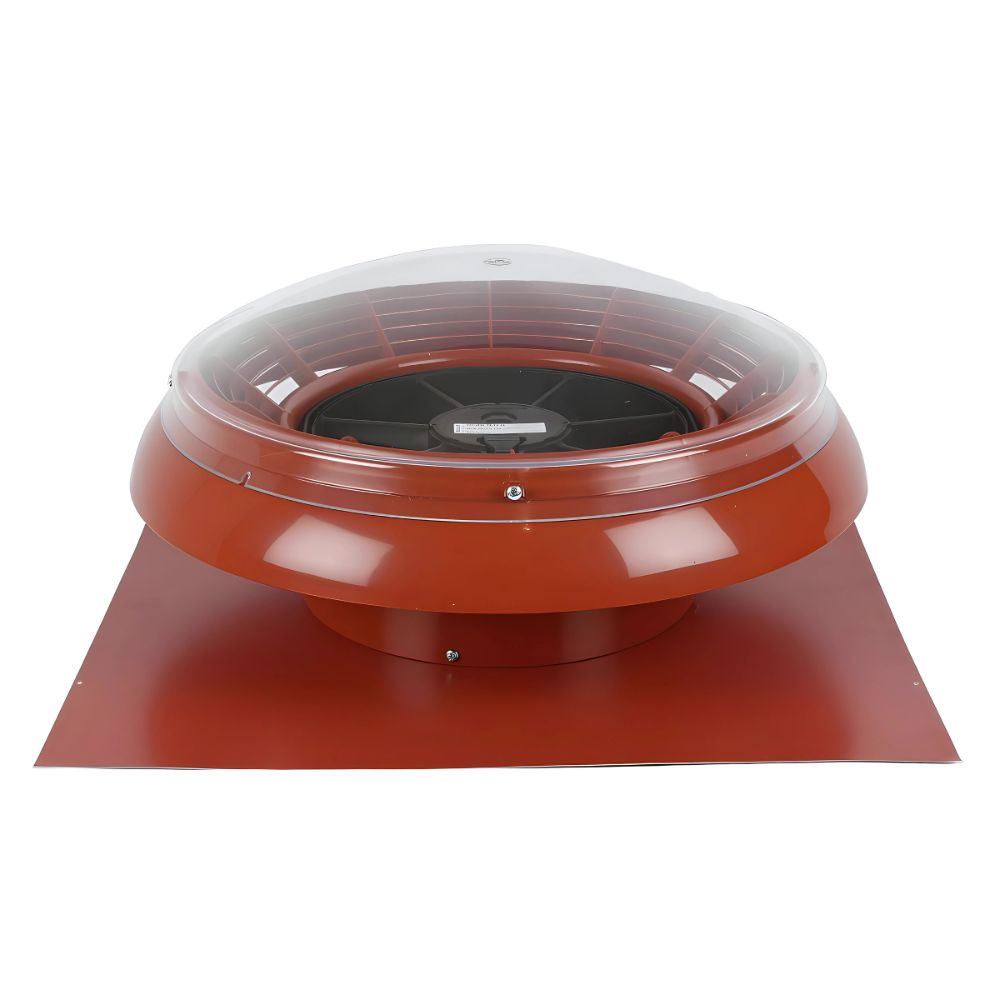

Bradford AiroMatic Continuous Flow Roof Ventilator – Red (Colorbond Headland)
IN STOCK | Typically dispatches within 3 business days
$449.00
Capacity: 630 m3/hr (100 l/s)
Duct Size: 250mm
Hole(Cutout) Size: 250mm Round
Ductable: Nonductable (Pulls air directly from roofspace)
View full technical specs further down the page
The Bradford Roof Ventilation System is a high-efficiency roof ventilation solution engineered to comply with NCC Clause 10.8.3 for the ventilation of roof spaces. It is designed to perform across a wide range of roof pitches and climates, providing superior year-round performance in managing roof space temperature and moisture.
The Bradford AiroMatic is an advanced, all-season roof ventilation system engineered to improve air quality and reduce heat and moisture build-up in your roof space. Designed for performance, efficiency, and aesthetics, the AiroMatic operates at a continuous flow rate of 360m³/hr, helping you maintain a comfortable indoor environment all year round.
Whether it’s scorching summer heat or winter condensation, the AiroMatic provides a reliable, low-energy ventilation solution that meets the requirements of NCC 2022 Clause 10.8.3, including cold climate compliance.
Key Features
- Meets NCC 2022 ventilation requirements, including for cold climates
- Continuous flow rate of 360m³/hr
- Low running costs with energy-efficient operation
- Helps prevent condensation and heat build-up
- Adds natural light to attic spaces
- Sleek, low-profile design suits modern and traditional rooflines
- Malleable flashing adapts to all roof types and pitches
- Ideal for use with eave, gable, subfloor, or static vents
Heat Reduction
Set at its default speed, the AiroMatic continuously extracts hot, humid air from your roof space and replaces it with cooler outside air, improving thermal comfort and reducing cooling costs.
Continuous Air Exchange
This system ensures fresh air flows through your roof cavity year-round, helping prevent excess heat in summer and condensation build-up in winter.
Condensation Management
Specially designed to combat winter condensation, the AiroMatic significantly reduces the risk of mould, mildew, and moisture-related damage.
Superior Performance
One AiroMatic ventilator delivers the same output as four traditional wind-driven ventilators, dramatically reducing the number of roof penetrations required.
Ventilation Tips for Maximum Effectiveness
- Ensure a clear path for air to be expelled – typically via the roof ventilator
- Provide entry points for replacement air, such as metal eave vents or static vents
- Achieve smarter, compliant ventilation with the Bradford AiroMatic – the efficient solution for healthier, better-performing homes.
Roof Pitch Suitability
| Manufacturer | Bradford |
|---|---|
| Model Number | 489171 |
| Colour | Red |
| Capacity (m3/hr) | 360 m3/hr |
| Capacity (L/S) | 100 L/S |
| Installation Location | Roof |
| Ductable? | Non-Ductable |
| IP Rating | IP54 |
| Installation | This fan comes with a lead and plug for connection to a power socket |
| Motor Height | 84mm |
| Hole Size | 250mm |
| Material | Plastic |
| Voltage | 220 – 240 |
| Warranty | Bradford: The manufacturer offers a 2 year replacement warranty (conditions apply) |
| Room Size | Large (20m3+) |
| Recommended Room Size (Based on Achieving 15 air changes per hour) | 24 m3 |
| Room Size Recommendation Disclaimer | As stated our "Recommended room size" figures are based on achieving 15 air changes per hour. Generally we have found this to be suitable, however it does not constitute specific advice. |
