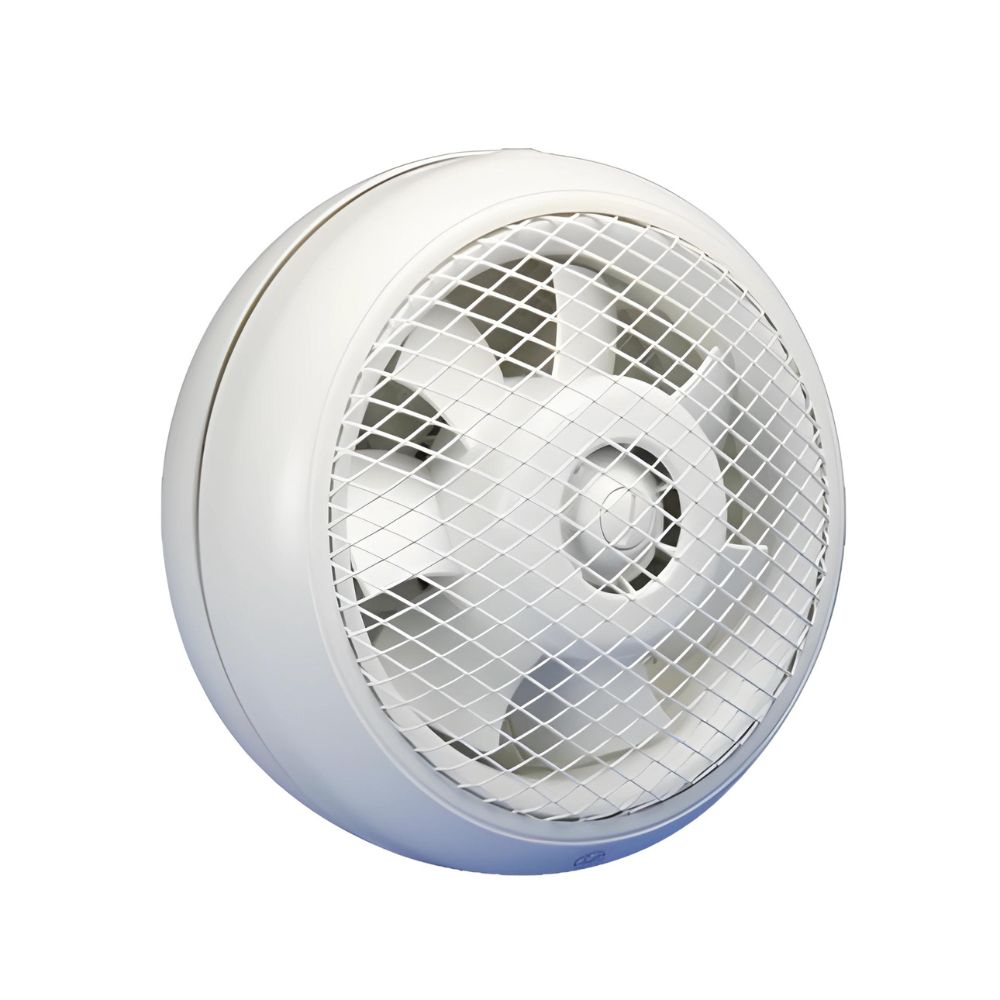

HCM Exhaust Fan 180mm
BF SALE | Get 10% off with code - PV10 (ends Monday 1st)
IN STOCK | Typically dispatches within 3 business days
$379.00
Capacity: 380 m3/hr (105.55 l/s)
Hole (Cutout) Size: 220mm – 225mm Round
Face Size: 255mm Round
Ductable: No
View full technical specs further down the page
This HCM Exhaust fan is suitable for applications ranging from domestic kitchens, bathrooms, commercial offices and all types of small or confined areas. All HCM Exhaust Fans are of compact low profile design and have weather and impact resistant plastic housings with integral air operated shutters. Impellers are sickle shaped for high performance. Motors are shaded-pole induction motor with sleeve bearings.This HCM model is quiet in operation and is continuously rated.

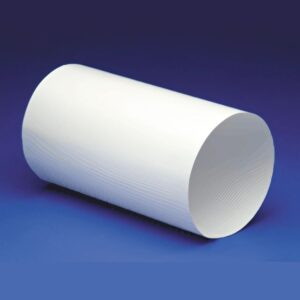

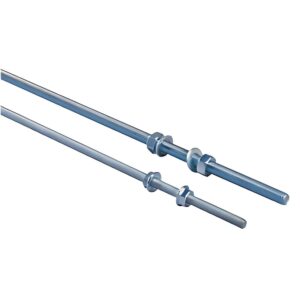

Please Note – If you require this HCM Exhaust fan for wall installation for a wall thicker than 25mm you will need to purchase a set of wall rods and a wall tube. These products are listed below as accessories:
Suitable for glass installs where glass is up to 8mm thick
| Manufacturer | Fantech |
|---|---|
| Model Number | HCM 180 |
| Colour | White |
| Material | Plastic |
| Hole Size | 220mm – 225mm |
| Capacity (m3/hr) | 380 m3/hr |
| Capacity (L/S) | 105.55 L/S |
| Recommended Room Size (Based on Achieving 15 air changes per hour) | 25.33 m3 |
| Motor Power (Wattage) | 25w |
| Noise Level | 35.6 dB(A) |
| IP Rating | IPX4 |
| Voltage | 220 – 240 |
| Installation | This fan requires hardwiring by an electrician |
| Installation Location | Wall or Window |
| Includes Backdraft Shutter | Yes (Gravity Shutters on Rear) |
| Ductable? | Non-Ductable |
| Warranty | Fantech – The manufacturer offers a 1 year replacement warranty (conditions apply). |
| Capacity Disclaimer | All capacity figures and technical data quoted is provided by the manufacturer |
| Room Size Recommendation Disclaimer | As stated our "Recommended room size" figures are based on achieving 15 air changes per hour. Generally we have found this to be suitable, however it does not constitute specific advice. |
2 reviews for HCM Exhaust Fan 180mm
Only logged in customers who have purchased this product may leave a review.
Alan (verified owner) –
Installation was easy. The design was neat and compact but the noise level is a bit high.
I ordered the product on line, got a confirmation email and the product was delivered promptly.
Andrew (verified owner) –
Had one before, lasted 10 years
