$190.00
| Extraction Rate | 364 m3/hr (101 l/s) |
|---|---|
| Hole (Cutout) Size | 160mm Round |
| Motor Height | TBA |
| Fascia Size | 200mm Square |
| Ductable? | Yes (150mm duct diameter) |
————-
This product is currently Out of Stock with no expected arrival date. For this reason it cannot be purchased. If you would like some options for suitable alternatives please contact us

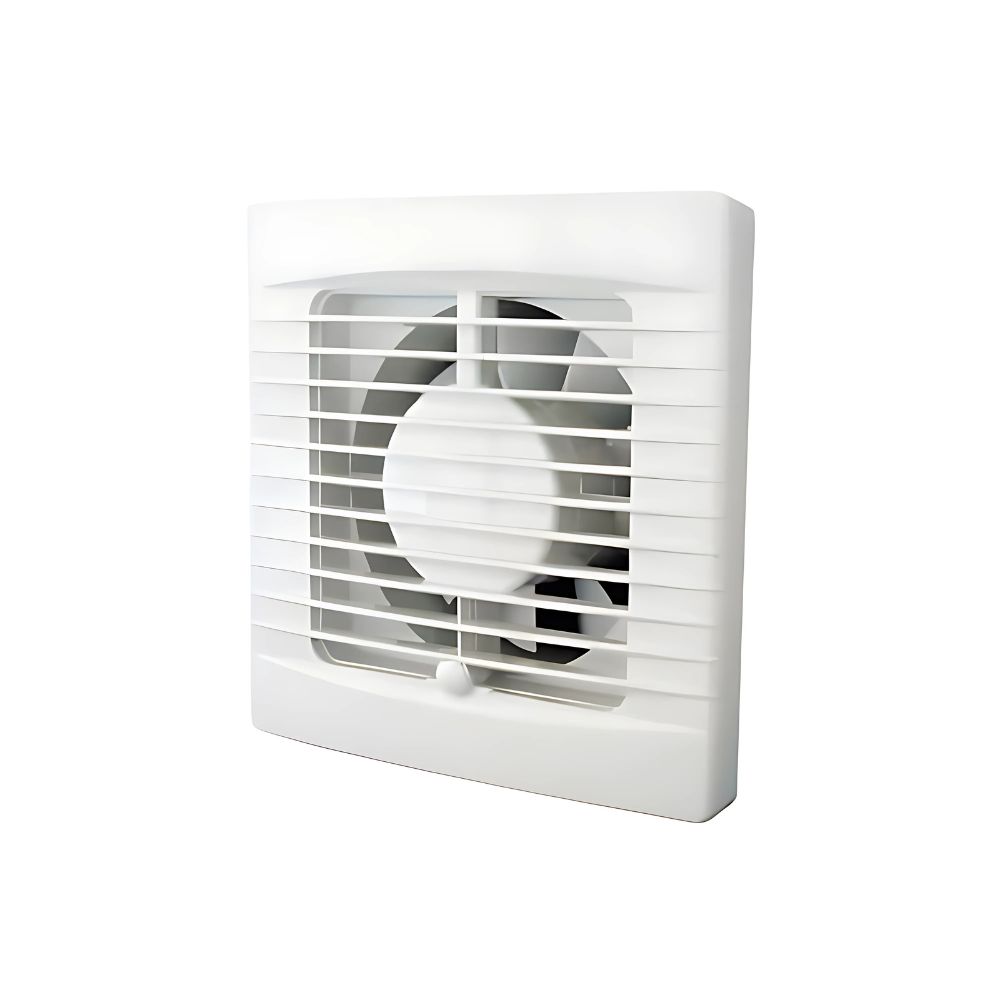

The Manrose SELV 150mm (FAN5896) is a low voltage ceiling/wall exhaust fan – ideal for small indoor areas such as small bathrooms.This manrose model can be installed in the ceiling or wall mounted and includes a 12V transformer that can be used in damp spaces. Manrose is IPX4 rated and moves a moderate 364 m3/hr of air. This model can be used with 150mm ducting so that you can exhaust the air out of room or household.
To be hardwired by an electrician.
| Hole Size | 160mm (diameter) |
|---|---|
| Capacity (m3/hr) | 364 m3/hr |
| Hole Size | 160mm |
| Capacity (Airflow) | 364m3/hr |
| Design | Square |
| Ductable? | Ductable |
| Room Size | Large (20m3+) |
| Recommended Room Size | Up to 36m3 (based on 10 a/h) |
| Noise Level | 40 dB(A) |
| Noise Level Explained | The manufacturer provides a figure of 40dB. Whilst noise is subjective, we have found this model to be quiet in comparison to models offering a similar capacity. |
| Motor Power (Wattage) | 25w |
| Material | Plastic |
| Installation | This exhaust fan requires hard-wiring by a qualified electrician. |
| Manufacturer | Manrose |
| Warranty | 5 year replacement warranty against defects in manufacture and workmanship following purchase (conditions apply). |
