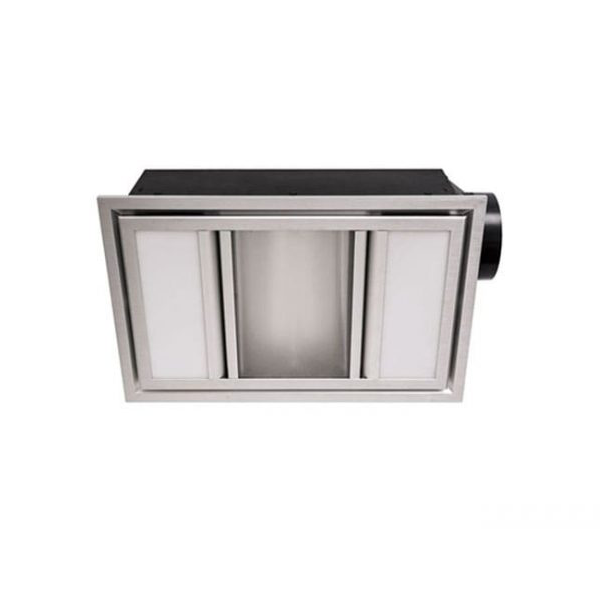

Mercator Domino Exhaust Fan with Heat & CCT LED Light – Silver
Original price was: $399.00.$299.00Current price is: $299.00.
Capacity: 500 m3/hr (138.88 l/s)
Light: Includes 2 x 11W CCT LED – 1150 Lumen (3000K (Warm White), 4000K (Neutral White) and 5000K (Cool White))
Heat: 1 x 800w Linear heat lamp (R7)

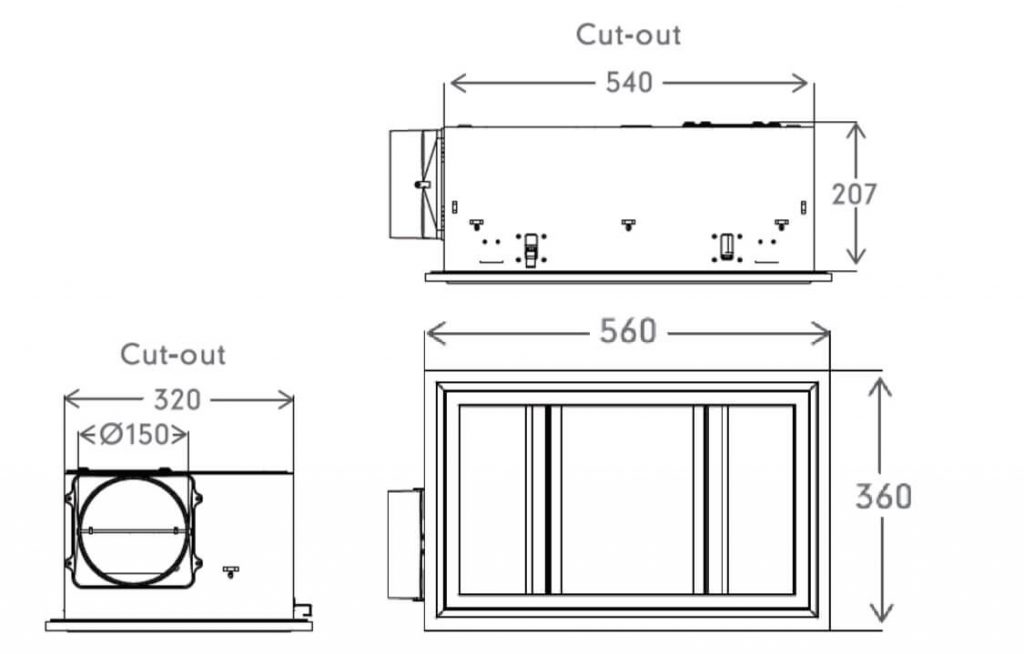

Hole (Cutout) Size: 540mm x 320mm
Ductable: Yes (150 diameter)
View full technical specs further down the page
————-
This product is currently Out of Stock with no expected arrival date. For this reason it cannot be purchased. If you would like some options for suitable alternatives please contact us
Mercator’s latest addition to the 3-in-1 exhaust range is the Domino (BH152ESWSL). Its 800W heat lamp is framed by 2 x 11W CCT LED lamps, creating an attractive and sleek 3 paneled facing. The included draft stopper prevents heat from escaping through the side duct, allowing the Domino’s heat lamp to create a cosy bathroom environment. This high capacity exhaust fan extracts up to 500m3/hr, making it a great 3 in 1 solution for bathrooms.
This updated model features a CCT (colour changing technology) LED light, allowing you to select from warm, natural or cool light. Alongside this is a powerful 800W heat lamp as well as an extraction fan offering a powerful 500 m3/hr.
The box includes a 1.5 metre length of flexible ducting with clamps, an external wall grille and a 3 gang switch wall controller. The Domino is driven by a 60 watt ball bearing motor and comes in 3 colours. Fan, heat and lights can all be used simultaneously.
The package includes a 1.5 meter length of flexible ducting with clamps, an external wall grille and a 3 gang switch wall controller. The Domino is driven by a 60 watt ball bearing motor.
The Domino is IP22 rated and requires a minimum ceiling cavity depth of 235mm.
Model: BH152ESWSL
| Manufacturer | Mercator |
|---|---|
| Model Number | BH152ESWSL |
| Colour | Silver |
| Material | Metal |
| Hole Size | 540mm x 320mm |
| Type of Light | LED |
| Capacity (m3/hr) | 500 m3/hr |
| Capacity (L/S) | 138.88 L/S |
| Recommended Room Size (Based on Achieving 15 air changes per hour) | 33.3 m3 |
| Motor Power (Wattage) | 60w |
| Minimum Install Depth | 235mm |
| Noise Level | TBC |
| Installation | This fan requires hardwiring by an electrician |
| Installation Location | Ceiling |
| Includes Backdraft Shutter | Yes |
| Ductable? | Ductable |
| Duct Location | Side Ducted |
| Duct Size | 150mm |
| Warranty | Mercator Domino – The manufacturer offers a 3 year in-home warranty. This excludes the heat lamps which have a 2 year replacement warranty. |
| Capacity Disclaimer | All capacity figures and technical data quoted is provided by the manufacturer, Capacity figures are based on the unit freeflowing (not connected to ducting). If you are ducting this unit it is advisable to keep the duct run as short, straight and tight as possible |
| Room Size Recommendation Disclaimer | As stated our "Recommended room size" figures are based on achieving 15 air changes per hour. Generally we have found this to be suitable, however it does not constitute specific advice. |
