Oerre Linear Mixed Flow Inline Fan 150mm
IN STOCK | Typically dispatches within 1-2 business days
$199.00
Capacity: 500 m3/hr (138.9 l/s)
Motor Type: Mixflow
Ductable: Yes (150mm duct diameter)
View full technical specs further down the page
The Oerre Linear 150mm In-Line Mixed Flow Vent is engineered to redefine ventilation standards across diverse environments. Whether in homes, commercial establishments, or industrial facilities, this vent excels in delivering superior airflow performance. It has a long-life ball bearing motor that ensures durability and reliability. It features three running speeds to suit diverse environmental and application needs. The quick release of the central unit facilitates fast maintenance or replacement.
Need Accessories? – Scroll to the bottom of the page to view suitable accessories including ducting and vents.
Add a Run on timer
This fan can be used with the following run on timer. An electrician will be required to install a 4 pin plug outlet. This timmer allows for the run on period to be adjusted from 0-60 minutes.
The Oerre Linear 150mm In-Line Mixed Flow Vent is perfect for a wide range of applications, including:
- Residential ventilation systems
- Commercial kitchens and bathrooms
- Industrial workshops and warehouses
- HVAC systems and ducting
With its user-friendly design, installation and maintenance of the Oerre Linear 150mm In-Line Mixed Flow Vent are straightforward. The quick-release central unit simplifies maintenance tasks, ensuring minimal downtime and maximum operational efficiency. The electrical connection compartment is IPX4 protected for enhanced safety, and the double insulation eliminates the need for a ground wire.

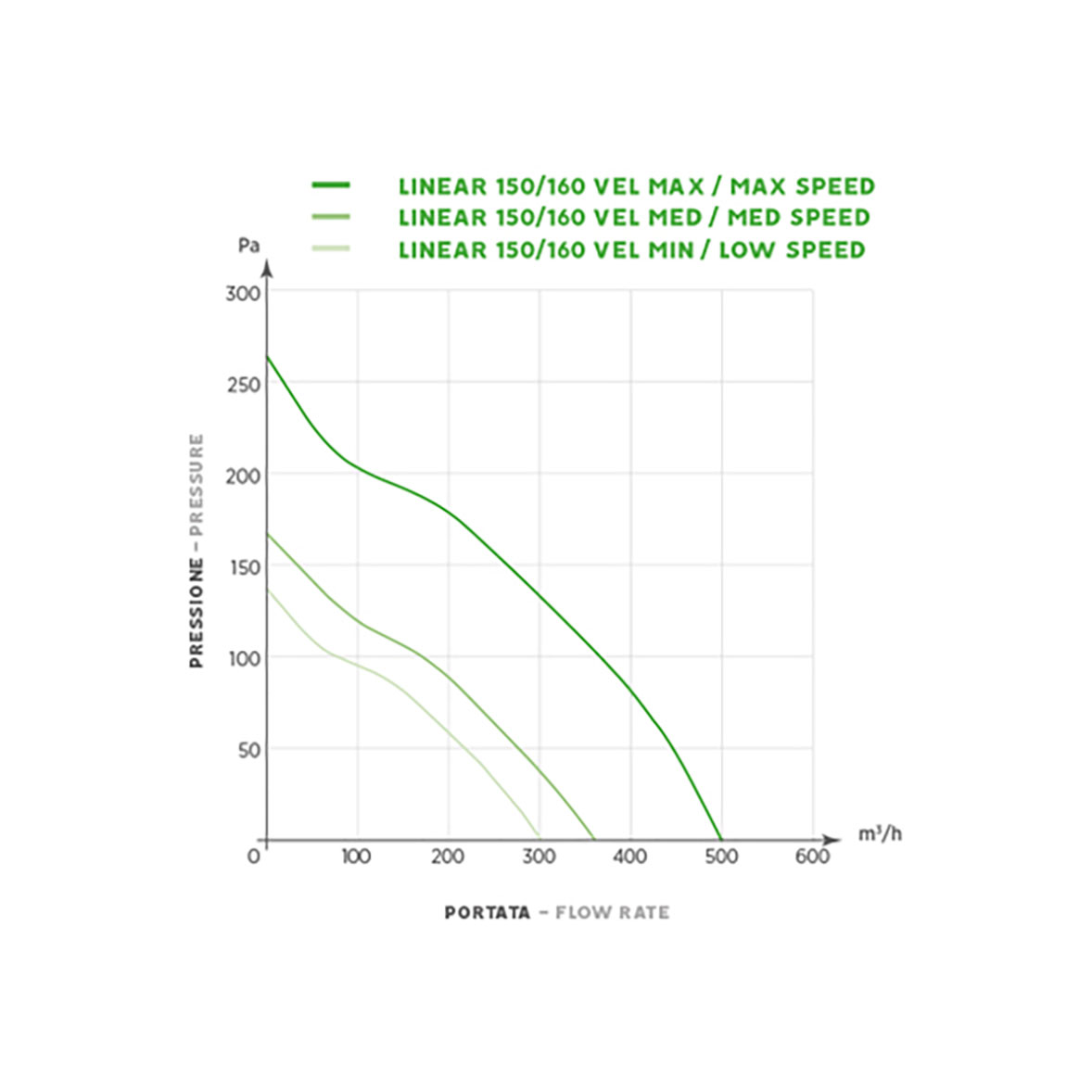

The Oerre Linear has the option for three different speeds, ranging from 300 m3/hr min speed to 500m3/hr to provide flexibility in your ventilation needs. Click the performance tab to find out more.
| Manufacturer | Oerre |
|---|---|
| Model Number | UF47320 |
| Material | Plastic |
| Capacity (m3/hr) | 500 m3/hr |
| Capacity (L/S) | 138.88 L/S |
| Motor RPM | 2170 |
| Motor Type | Mixflow |
| Recommended Room Size (Based on Achieving 15 air changes per hour) | 33.3 m3 |
| Noise Level | 51 dB(A) |
| IP Rating | IPX4 |
| Voltage | 220 – 240 |
| Installation Statement | This fan requires hardwiring by an electrician |
| Duct Size | 150mm |
| Max Temperature of Transferred Air | 40°C |
| Warranty | Oerre: The manufacturer offers a 2 year replacement warranty. Conditions Apply. Contact your store of purchase for warranty issues. |
| Capacity Disclaimer | All capacity figures and technical data quoted is provided by the manufacturer, Capacity figures are based on the unit freeflowing (not connected to ducting). If you are ducting this unit it is advisable to keep the duct run as short, straight and tight as possible |
| Room Size Recommendation Disclaimer | As stated our "Recommended room size" figures are based on achieving 15 air changes per hour. Generally we have found this to be suitable, however it does not constitute specific advice. |
| Current (A) | 0.2 |
| Speeds | 3 Speeds |
| Barcode Number | 8009278220860 |
