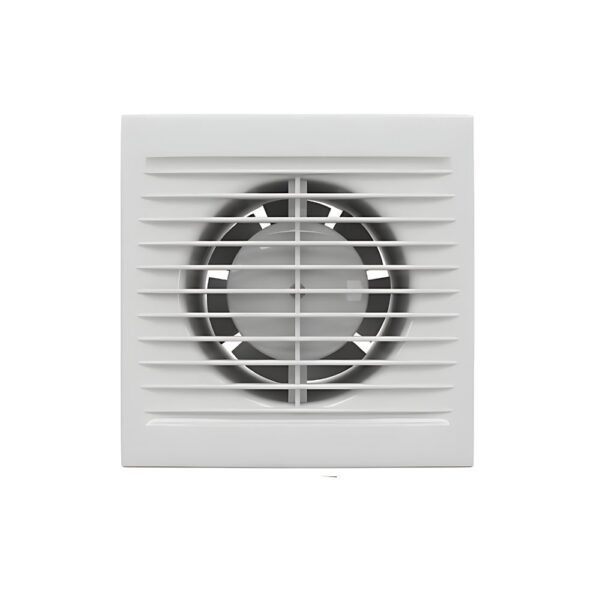

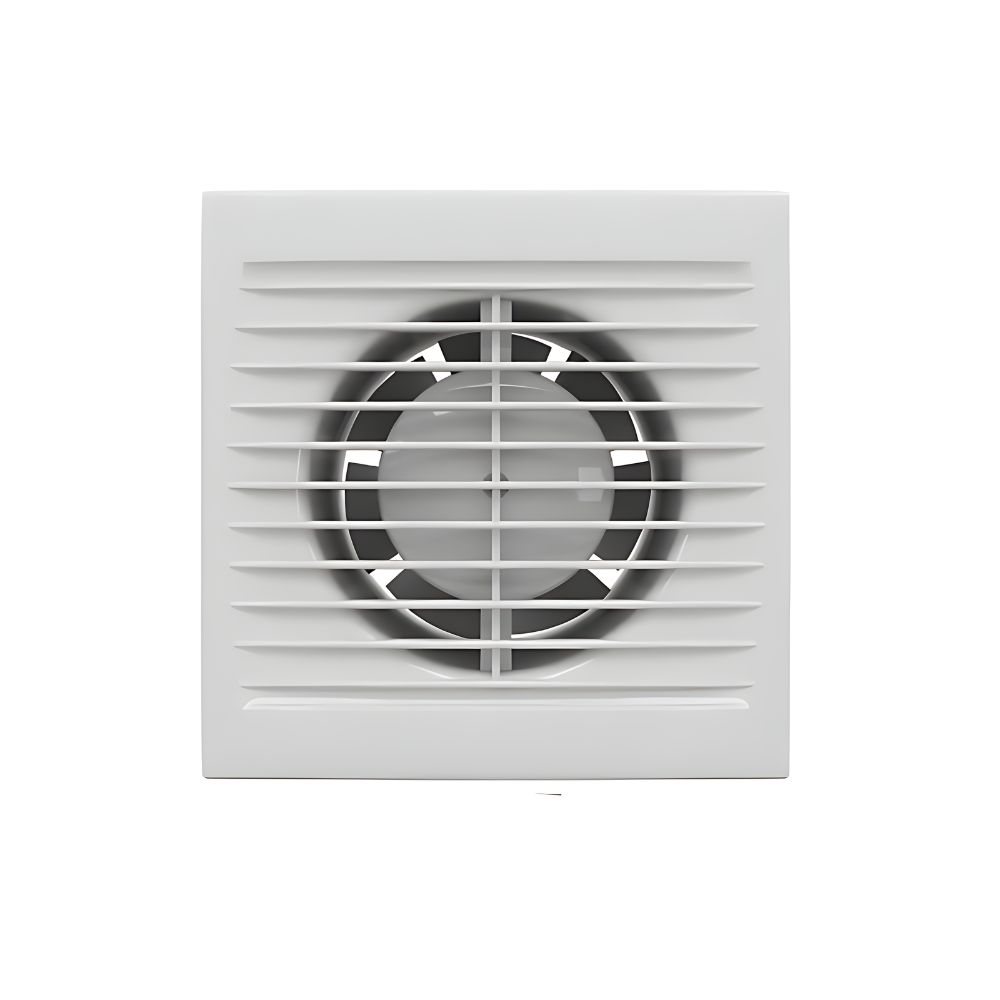

S Series Wall/Ceiling Fan 100mm with Timer
IN STOCK | Typically dispatches within 1-2 business days
$95.00
Capacity: 95 m3/hr (26.38 l/s)
Hole (Cutout) Size: 100mm Round
Face Size: 150mm Square
Ductable: Yes (100mm duct diameter)
View full technical specs further down the page
The 100mm Fanco S Series exhaust fan model is a compact yet capable exhaust fan featuring a simple design.
Need Accessories? – Scroll to the bottom of the page to view suitable accessories including ducting and vents.
The S Series exhaust fan model is a compact yet capable exhaust fan featuring a simple design. Suitable for small-sized household bathrooms and laundries, as the fan has a capacity of 95m3/hr and comes with a fly screen that is easily removed. This package comes with a 30-second to 120-minute variable run-on timer. The timer is adjustable and can be set from anything from 1-25 minutes, depending on your preference. This will need to be hardwired to the fan by an electrician.
| Manufacturer | Fanco |
|---|---|
| Capacity (m3/hr) | 95 m3/hr |
| Model Number | EMVUSS1 + 207933 |
| Colour | White |
| Material | Plastic |
| Hole Size | 100mm |
| Capacity (L/S) | 26.38 L/S |
| Recommended Room Size (Based on Achieving 15 air changes per hour) | 6.3 m3 |
| Motor Power (Wattage) | 14w |
| Motor Height | 96mm |
| Noise Level | 34 dB(A) |
| IP Rating | IP34 |
| Voltage | 220 – 240 |
| Installation Statement | This fan requires hardwiring by an electrician |
| Installation Location | Ceiling or Wall |
| Includes Backdraft Shutter | No |
| Ductable? | Ductable |
| Duct Location | Rear Ducted |
| Duct Size | 100mm |
| Warranty | Fanco – The manufacturer offers a 2 year replacement warranty (conditions apply) |
| Capacity Disclaimer | All capacity figures and technical data quoted is provided by the manufacturer, Capacity figures are based on the unit freeflowing (not connected to ducting). If you are ducting this unit it is advisable to keep the duct run as short, straight and tight as possible |
| Room Size Recommendation Disclaimer | As stated our "Recommended room size" figures are based on achieving 15 air changes per hour. Generally we have found this to be suitable, however it does not constitute specific advice. |
| Barcode Number | 4823016205681 + 9008606383733 |
1 review for S Series Wall/Ceiling Fan 100mm with Timer
Only logged in customers who have purchased this product may leave a review.
You may also like…
Stephen Ryan –
Works well but a little noisey timer had to be installed external to fan.
