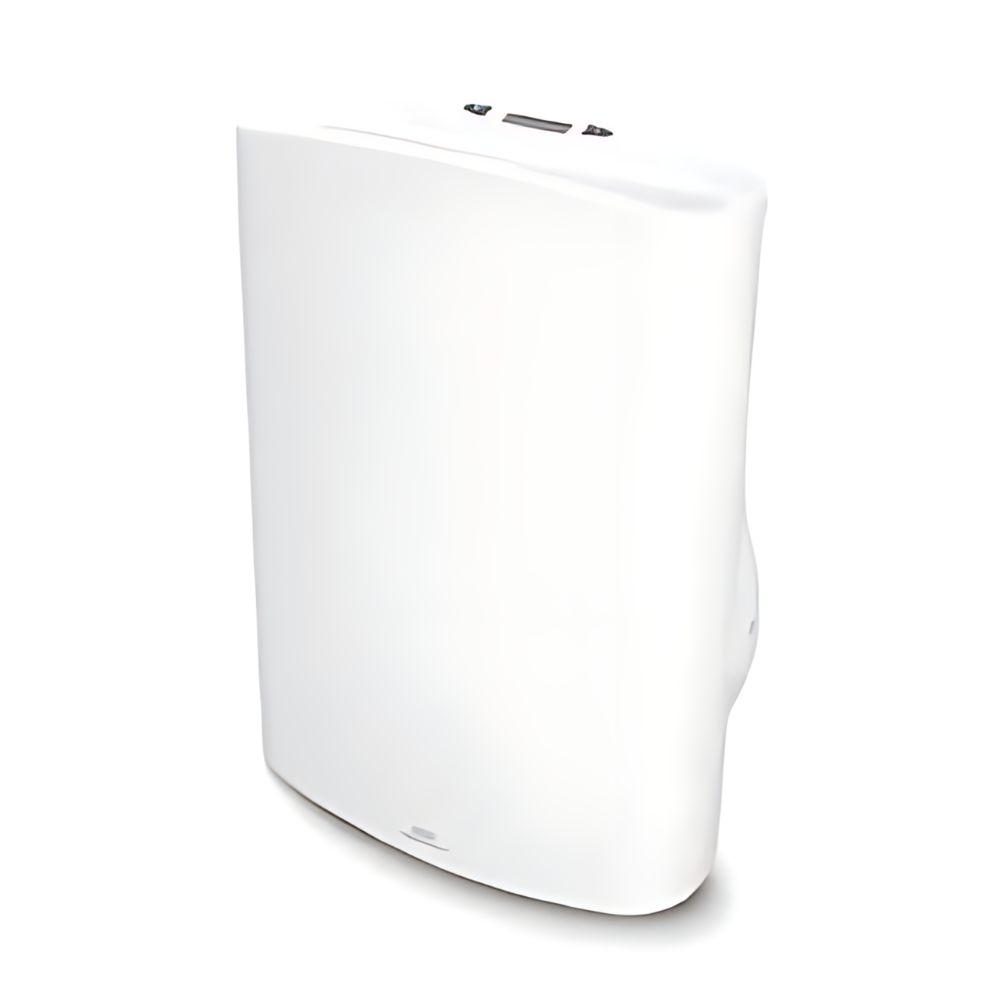

Sonair Air Filtration System

Useful links

As this is a relatively sophisticated product it may be a good idea to download and read the following resources:

Click Here to download the installation manual
Click Here to download the full product guide

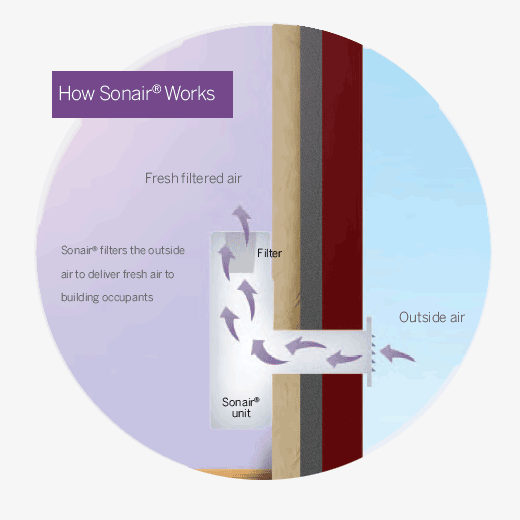

How the Sonair Unit Works:

The unit is designed to deliver fresh air whilst filtering and removing outside dust and airborne pollutants. The unit is popular in domestic and commercial buildings that may have windows that need to remain closed. The Sonair unit needs to be installed on the inside of an external wall and the fan draws outside air through the wall sleeve. This air passes through the carbon filter which results in the supply of fresh filtered air. The airflow rate is adjustable, with the maximum being 225 m3/hr.

DELIVERS FRESH AIR TO BUILDING OCCUPANTS
Ideal for applications where windows need to be closed due to noise, odours, fumes and dust

EASY TO MAINTAIN
Simple once-a-year filter replacement (or as needed for more polluted areas)

FILTER SELECTION
Sonair® is supplied with a standard class G3 filter. This filter is used in conditions with normal dust levels, and removes 70% to 80% of particles larger than 10μm, including pollen, hair and spores.

VARIABLE AND CONTROLLABLE AIR FLOW RATE
Air flow of up to 225m3/hr using G3 filter

QUIET OPERATION
Sound absorbing chamber reduces noise to a virtually inaudible 23dBA at normal speed

Sonair Technical specs

Phase: Single
Input Voltage (Hz): 50
Protection class: 2
Input Voltage (VAC); 220-240
Max. running power consumption (W): 52.3
Main cable length (m): 1.8

Flow Rate
G3 filter (m3/hr): Adjustable between 0 – 225

Sound
G3 filter @ 60 m3/hr (dBA) Typical speed 23
G3 filter @ 225 m3/hr (dBA) Max. speed 56

Power consumption
G3 filter @ 60 m3/hr (W) 9.6
G3 filter @ 225 m3/hr (W) 52.3
