This vent has a 360 degree swivel spoggot which can be rotated depending on the direction the duct is required to go (view the dimensions tab for more information).
The duct spigot also has two height settings which can assist with joist clearance if required.
The fascia and the adaptor are both plastic. The product is part of the ‘airbus’ modular range.

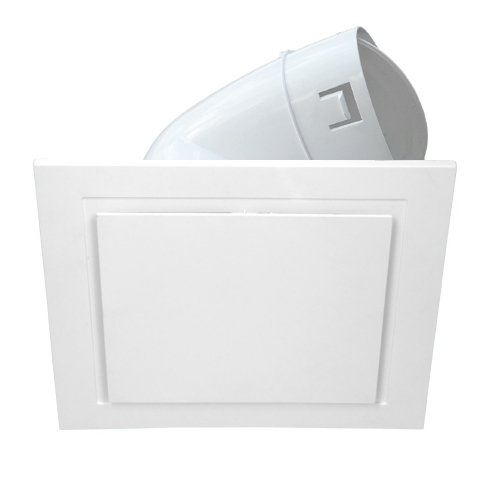

Square Vent with 150mm Duct Adaptor – White
$89.00
This listing is for a vent only – this product does not have a motor.
This ultra modern white square vent is designed to be used in conjunction with an inline motor. This product is designed to be ceiling mounted, plasterboard clips secure the unit in place. To install this vent a round 238mm diameter hole will need to be cut in the plasterboard. The face of the vent is 272mm square. View more information including dimensions below:
| Manufacturer | Ventair |
|---|---|
| Model Number | VMFK150 (adaptor) ABG200WH-SQ (white square fascia) |
| Colour | White |
| Material | Plastic |
| Hole Size | 238mm |
| Minimum Install Depth | 170mm |
| Includes Backdraft Shutter | Yes |
| Ductable? | Ductable |
| Duct Location | Side Ducted |
| Duct Size | 150mm |
