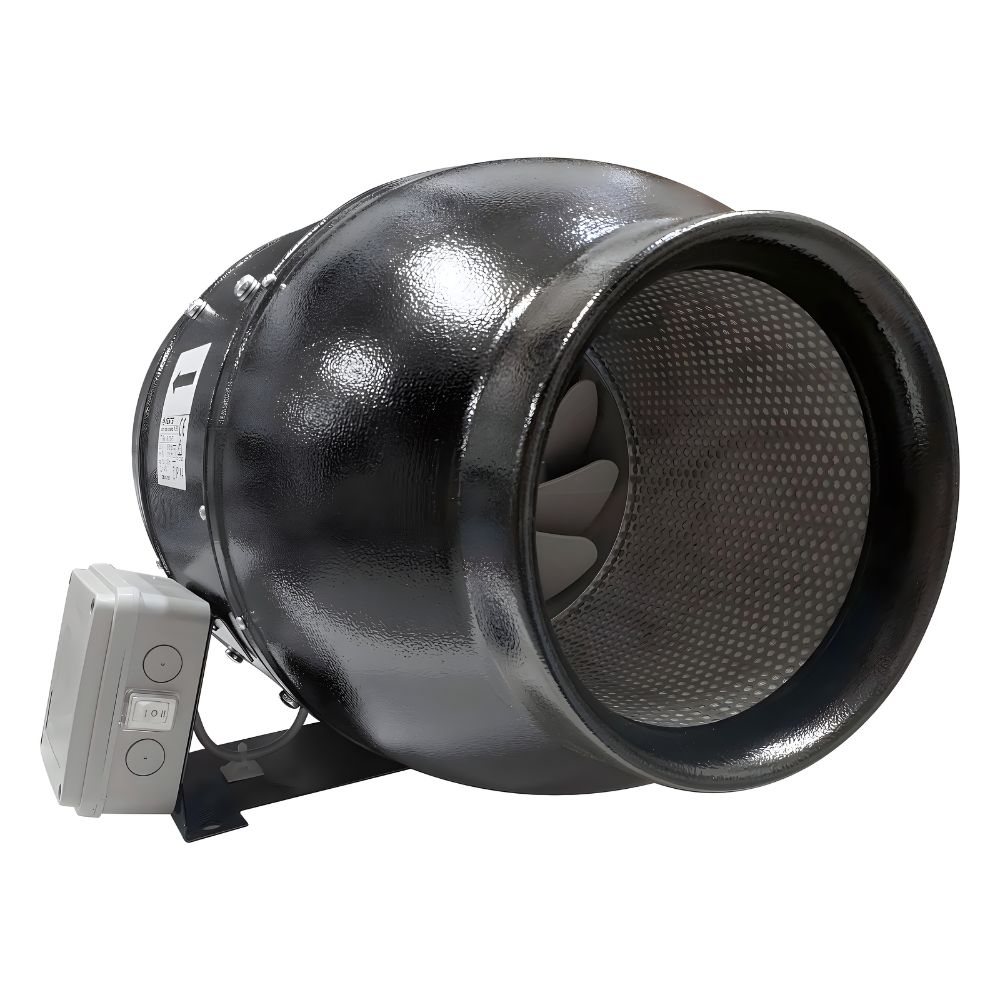

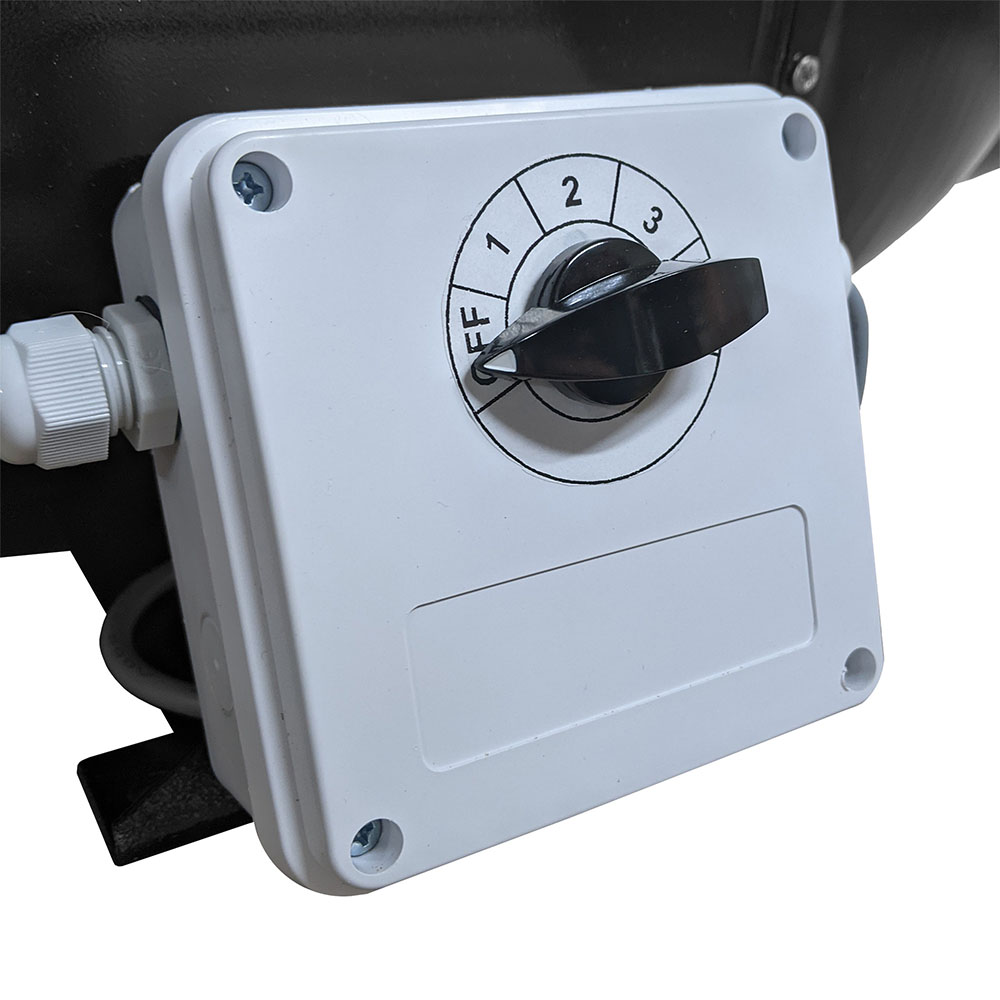

TT Silent Mixflow Inline Fan 200mm w/ Lead & Plug + Speed Switch
IN STOCK | Typically dispatches within 1-2 business days
Original price was: $699.00.$499.00Current price is: $499.00.
Extraction Capacity: 1020 m3/hr (283.33 l/s)
Motor Type: Silent Mixflow
Ductable: Yes (200mm duct diameter)
View full technical specs further down the page
Looking for a top of the range inline fan – look no further!

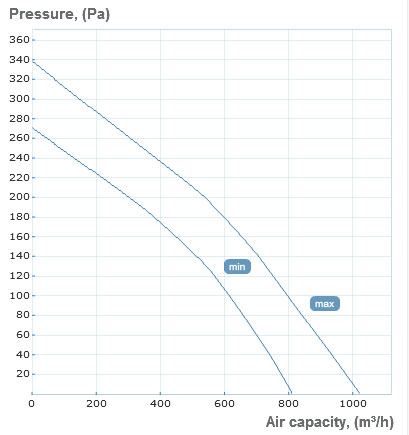

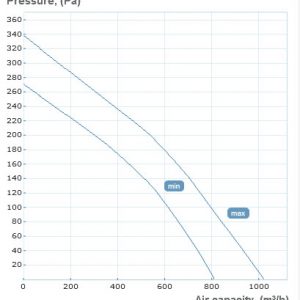

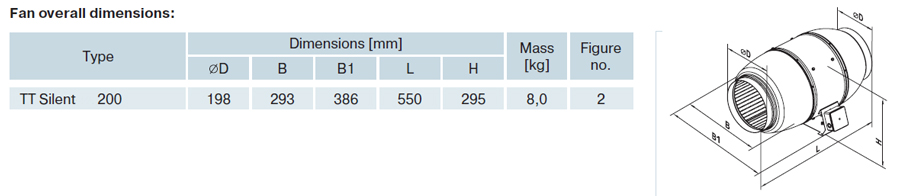

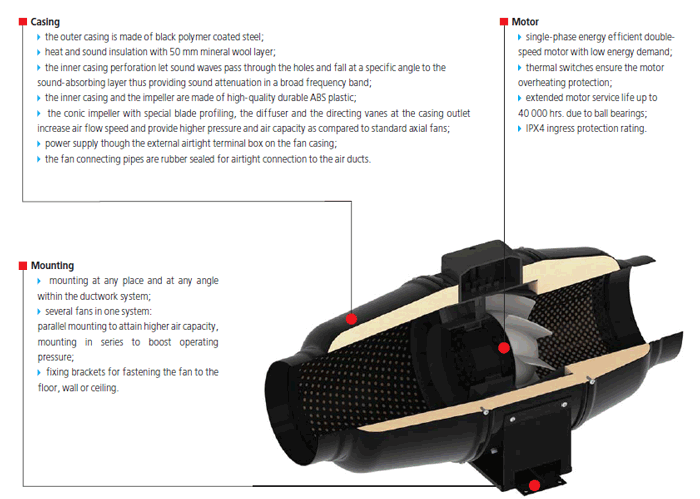

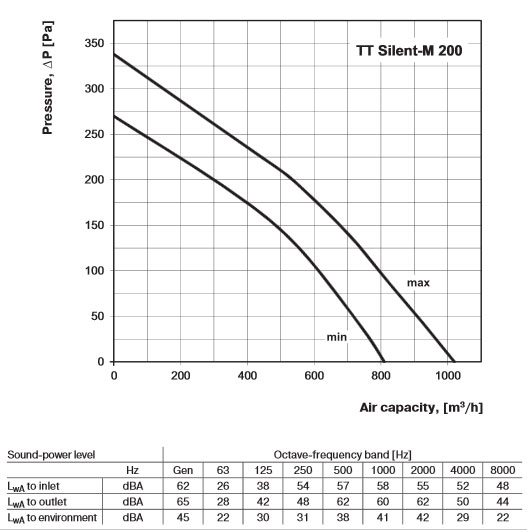

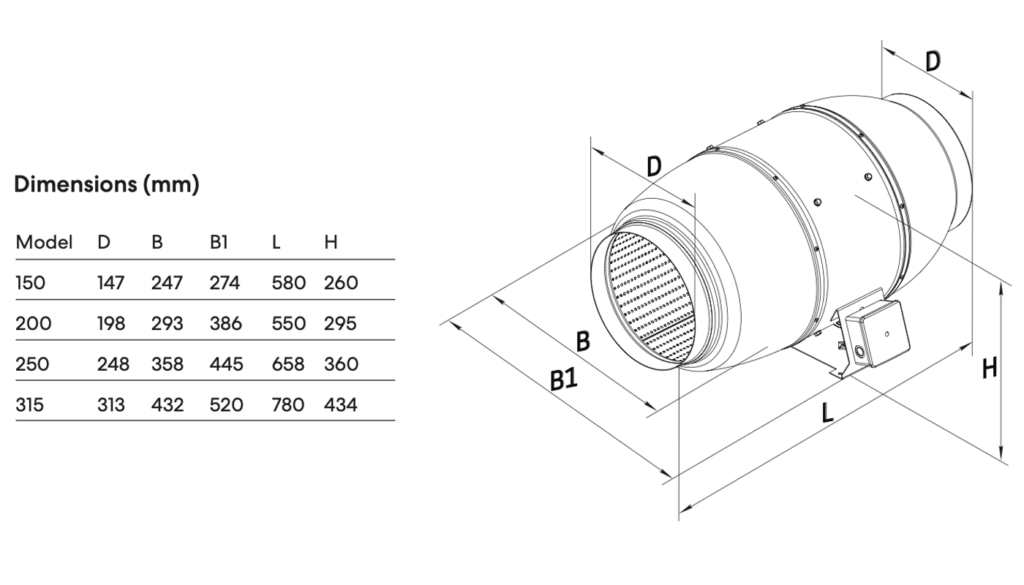

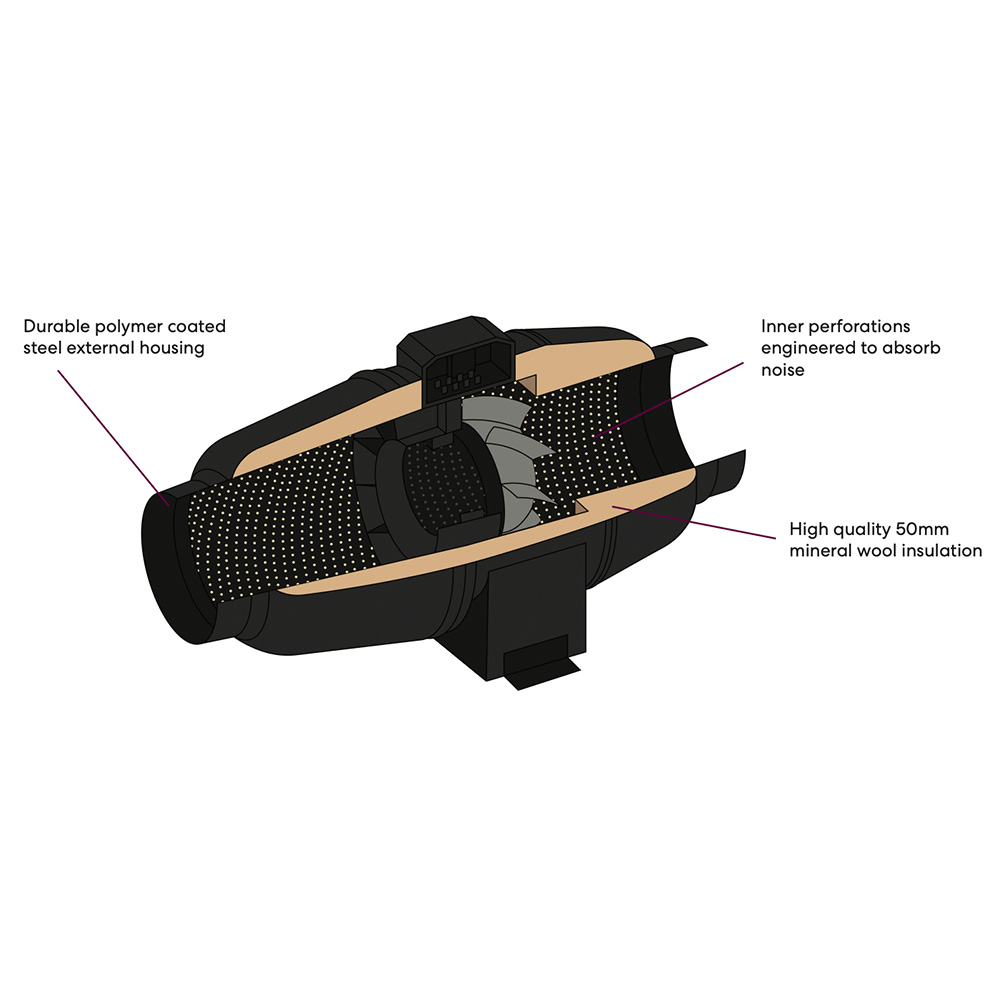

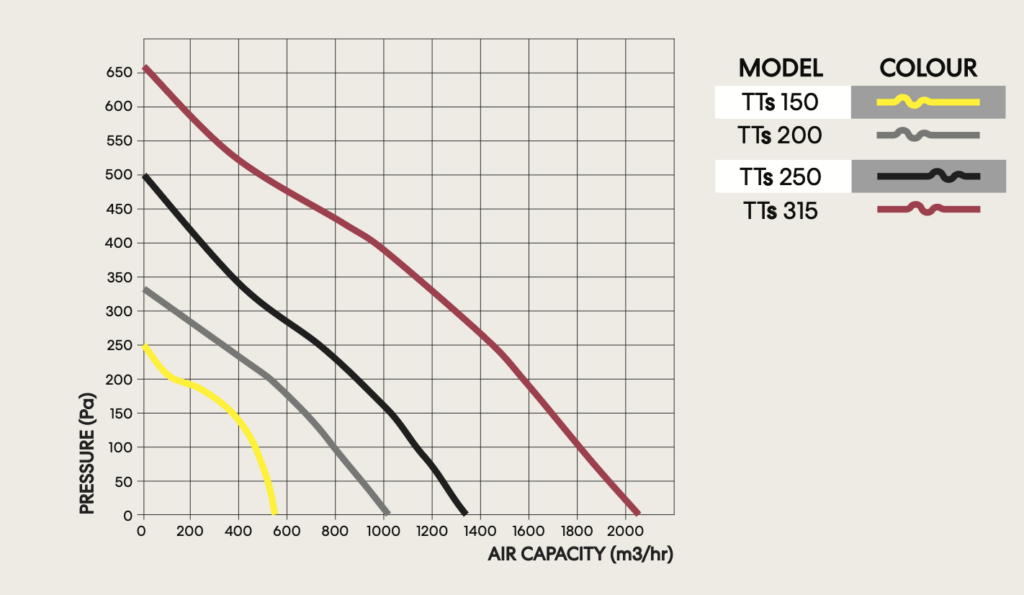

The TT Silent Inline fan is a innovative new product designed specifically to operate quietly. With a built in 50mm layer of mineral wool sound insulation this product ensures quiet operation without compromising on performance. The fan has a capacity of 1020m3/hr on the highest speed and a dBA rating of only 36. Most fans on the market with a comparable capacity will be around the 55-60dBA mark! The fan is a great choice for the noise conscious. Click on the dimensions and performance tab below to view overall dimensions and a cross section of the product.
Please note: This fan comes with a lead and plug installed – meaning it will simply plug into a standard powerpoint.
| Manufacturer | Fanco |
|---|---|
| Material | Metal |
| Capacity (m3/hr) | 1020 m3/hr |
| Capacity (L/S) | 283.33 L/S |
| Motor Type | Mixflow |
| Recommended Room Size (Based on Achieving 15 air changes per hour) | 68 m3 |
| Noise Level | 36 dB(A) |
| IP Rating | IPX4 |
| Voltage | 230 |
| Installation | This fan comes with a lead and plug for connection to a power socket |
| Duct Size | 200mm |
| Motor RPM | 2445 |
| Max Temperature of Transferred Air | 60 °C |
| Warranty | Fanco – The manufacturer offers a 2 year replacement warranty (conditions apply) |
| Capacity Disclaimer | All capacity figures and technical data quoted is provided by the manufacturer, Capacity figures are based on the unit freeflowing (not connected to ducting). If you are ducting this unit it is advisable to keep the duct run as short, straight and tight as possible |
| Lead & Plug Customisation Disclaimer | Please be aware that we are unable to accept returns for ‘change of mind’ reasons if a plug is installed. The flex is 1m in length. |
19 reviews for TT Silent Mixflow Inline Fan 200mm w/ Lead & Plug + Speed Switch
Only logged in customers who have purchased this product may leave a review.
You may also like…
Original price was: $89.00.$69.00Current price is: $69.00.
Andrew (verified owner) –
Easy to install and very quiet
Vic –
Good product, happy with how it functions.
Mark –
Tim –
Great fans, nice and quiet
Anthony –
Its working well so far after 2 weeks
Rohan –
Colyn –
Was as expected in adveretising
Derby –
good product so far and doing what we hoped it would do
Andrew –
Timothy –
Used to modify a loud range hood ventilation. Air flow excellent and is quieter than other motors but motor sound can still be heard. Installed motor inside a box with insulation also. was hopping to just get the airflow noise but can still hear motor whine. Much better than before and you can talk in the kitchen with it on or don’t have to turn the tv up in the living room like before…
Cindy Townsend –
Cindy –
Howard –
Definitely very quiet fan – which is what I was after. Yet to fully install, but it is well built and put together. Looks to be worth the extra dollars over the cheaper options.
Daniel (verified owner) –
Phill Norman –
Seems sturdily constructed and of good quality. A bit noisier than I expected but not bad. An electrician recommended to suspect the unit from straps rather than to drill it into the rafters to reduce the transfer of noice.
Alison Guthrie (verified owner) –
Products received as advertised and in only a couple of days.
Ralph Kempf (verified owner) –
Very good suction with near silent motor
David Demaine (verified owner) –
Great fan motor but has a lot of air noise
Jesse Adams (verified owner) –
