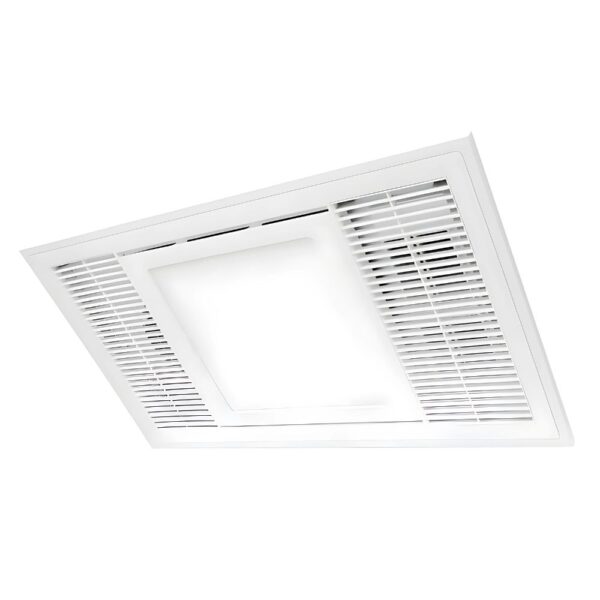

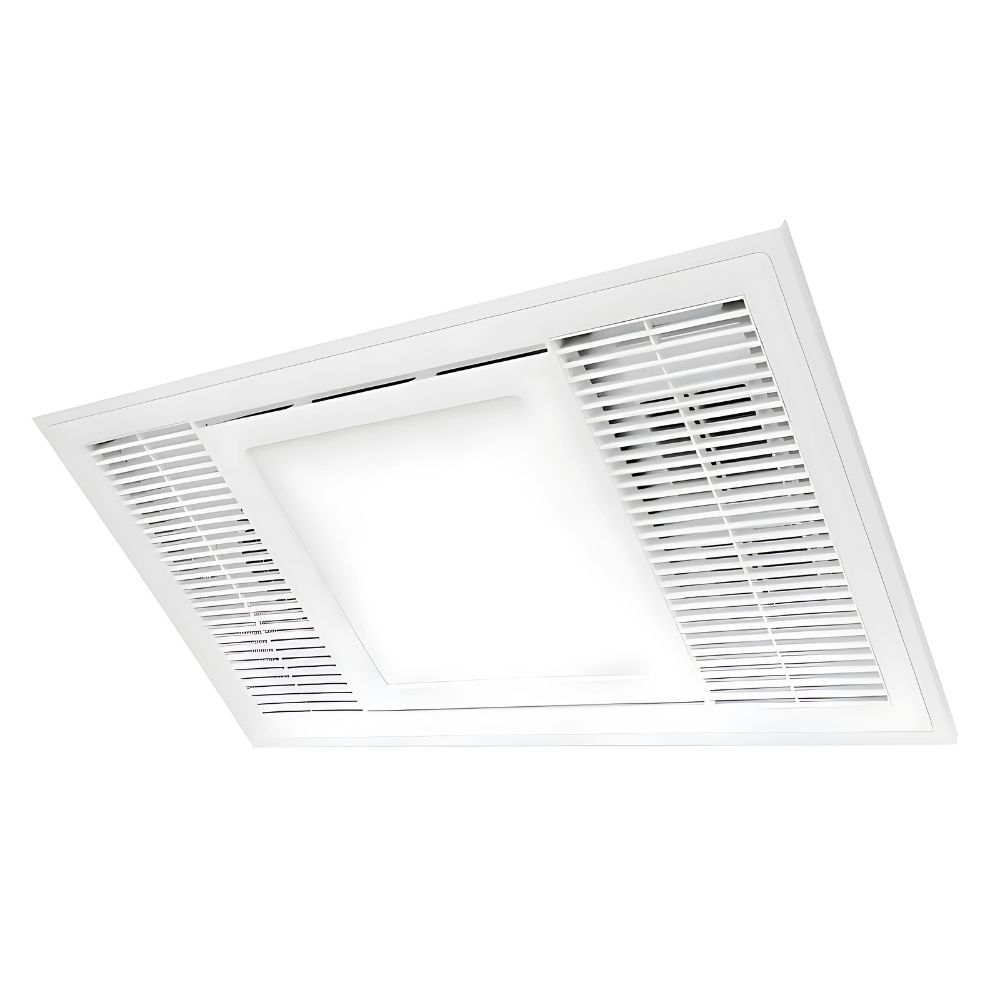

Ventair Madrid 3 in 1 Exhaust Fan with LED Light – White
IN STOCK | Typically dispatches within 3 business days
Original price was: $449.00.$395.00Current price is: $395.00.
| Extraction Rate | 330 m3/hr (91.6 l/s) |
|---|---|
| Light: | 1x 20w 4000k LED centre panel light |
| Heat: | Fan forced (Low 1400W/High 2000W) |

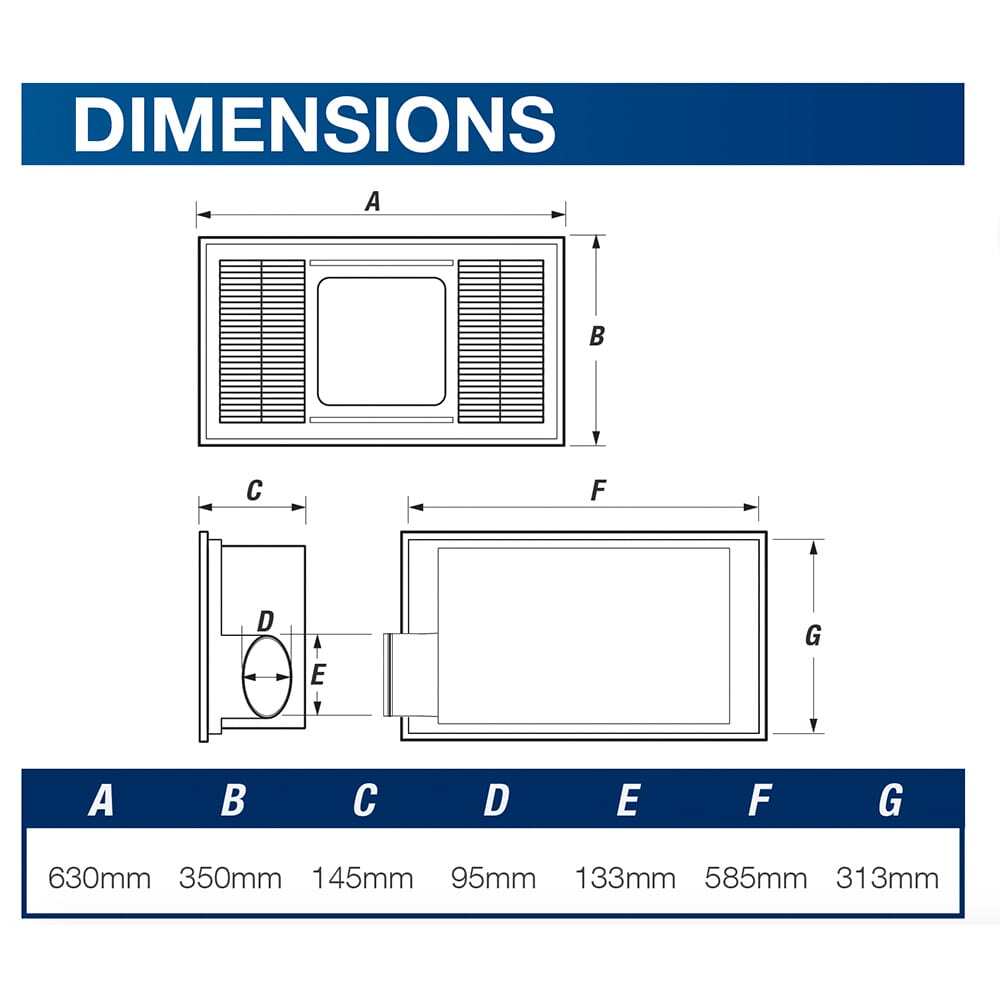

| Hole (Cutout) Size: | 590mm x 320mm |
| Fascia Size: | 630mm x 350mm |
| Ductable: | Yes (125mm diameter) |
Ventair Madrid Features
Includes a 4 switch wall control, which allows for control of the light, extraction fan and two switches for the heater. The first switch turns the heater on at the low level of 1400w, if you also turn on the second switch the heater will switch to ‘boost’ mode, offering 2000w. Note – the heater will not work if the first switch is in the off position.
The unit features a modern, slimline fascia with a 20w integrated LED light. At 1900 lumens the light is designed to provide ample brightness for a bathroom. The extraction rate is 330 m3/hr, generally considered suitable for medium to large sized bathrooms. Included in the package is 3 meters of 125mm flexible ducting and an external vent.
| Manufacturer | Ventair |
|---|---|
| Model Number | MAD31FHLX |
| Colour | White |
| Material | Plastic |
| Hole Size | 590mm X 320mm |
| Type of Light | LED |
| Capacity (m3/hr) | 330 m3/hr |
| Capacity (L/S) | 91.6 L/S |
| Recommended Room Size (Based on Achieving 15 air changes per hour) | 22 |
| Motor Power (Wattage) | 50w |
| Minimum Install Depth | 200mm |
| Installation | This fan requires hardwiring by an electrician |
| Installation Location | Ceiling |
| Includes Backdraft Shutter | Yes |
| Ductable? | Ductable |
| Duct Location | Side Ducted |
| Duct Size | 125mm |
| Warranty | Ventair – The manufacturer offers a 2 year in home warranty followed by a three year replacement warranty on the motor. |
| Capacity Disclaimer | All capacity figures and technical data quoted is provided by the manufacturer, Capacity figures are based on the unit freeflowing (not connected to ducting). If you are ducting this unit it is advisable to keep the duct run as short, straight and tight as possible |
| Room Size Recommendation Disclaimer | As stated our "Recommended room size" figures are based on achieving 15 air changes per hour. Generally we have found this to be suitable, however it does not constitute specific advice. |
| IP Rating | IPX2 |
| Noise Level | 49.5 dB(A) |
