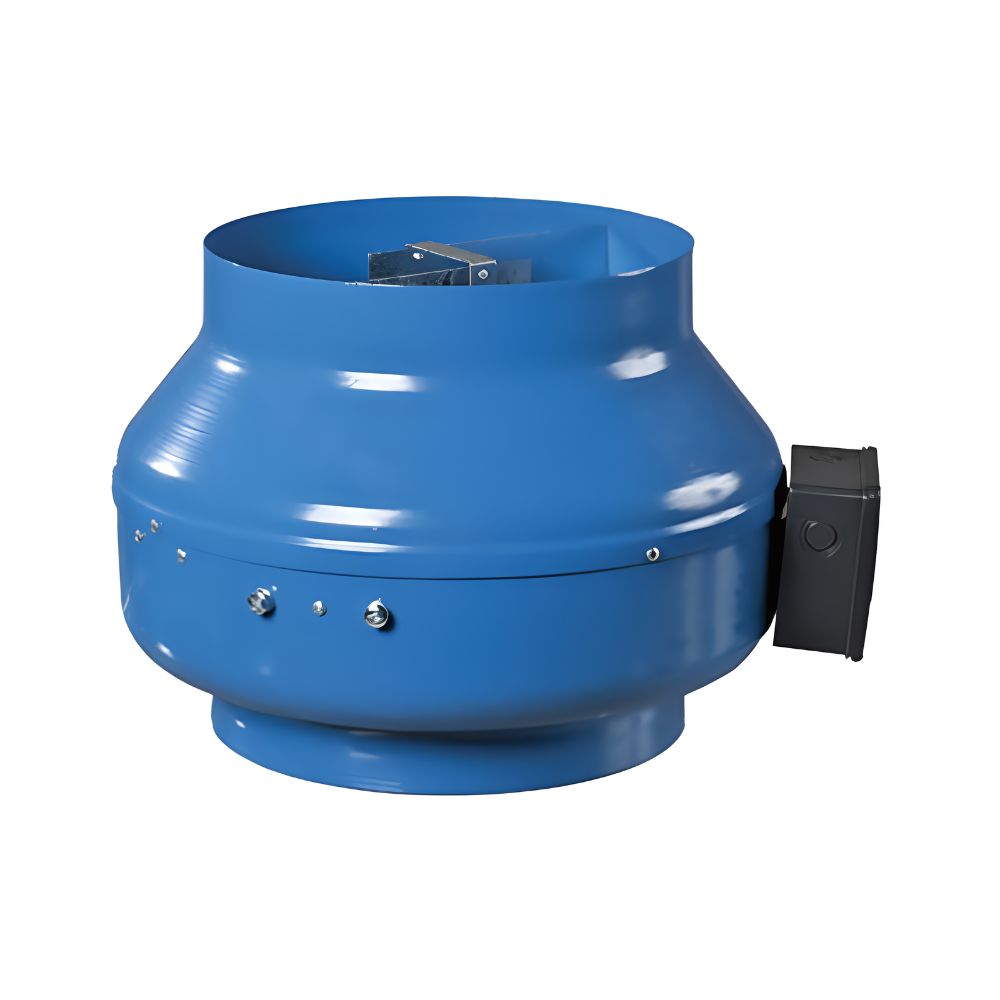

VKM Centrifugal Fan 250mm
IN STOCK | Typically dispatches within 1-2 business days
$489.00
Capacity: 1310 m3/hr (364.18 l/s)
Motor Type: Centrifugal
Ductable: Yes (250mm duct diameter)
View full technical specs further down the page
A quality in-line fan that is normally ducted and may be used for exhaust, air transfer and other applications. The fan casing is made of steel with a polymeric coating – a superior structure to plastic models.
Need Accessories? – Scroll to the bottom of the page to view suitable accessories, including ducting and vents.
Add a Run on timer
This fan can be used with the following run on timer. An electrician will be required to install a 4 pin plug outlet. This timmer allows for the run on period to be adjusted from 0-60 minutes.
It is available in 6 sizes, and is a long-life, continuous-rated motor with an IP X4 rating. The package includes mounting brackets (click on the ‘dimensions’ tab to view a picture of the mounting bracket).
| Manufacturer | Fanco |
|---|---|
| Model Number | VKM 250 |
| Material | Metal |
| Capacity (m3/hr) | 1310 m3/hr |
| Capacity (L/S) | 363.88 L/S |
| Motor Type | Centrifugal |
| Recommended Room Size (Based on Achieving 15 air changes per hour) | 87.3 m3 |
| Noise Level | 52 dB(A) |
| IP Rating | IPX4 |
| Voltage | 230 |
| Installation Statement | This fan requires hardwiring by an electrician |
| Duct Size | 250mm |
| Motor Power (Wattage) | 194w |
| Motor RPM | 2790 |
| Max Temperature of Transferred Air | 50 °C |
| Warranty | Fanco – The manufacturer offers a 2 year replacement warranty (conditions apply) |
| Capacity Disclaimer | All capacity figures and technical data quoted is provided by the manufacturer, Capacity figures are based on the unit freeflowing (not connected to ducting). If you are ducting this unit it is advisable to keep the duct run as short, straight and tight as possible |
