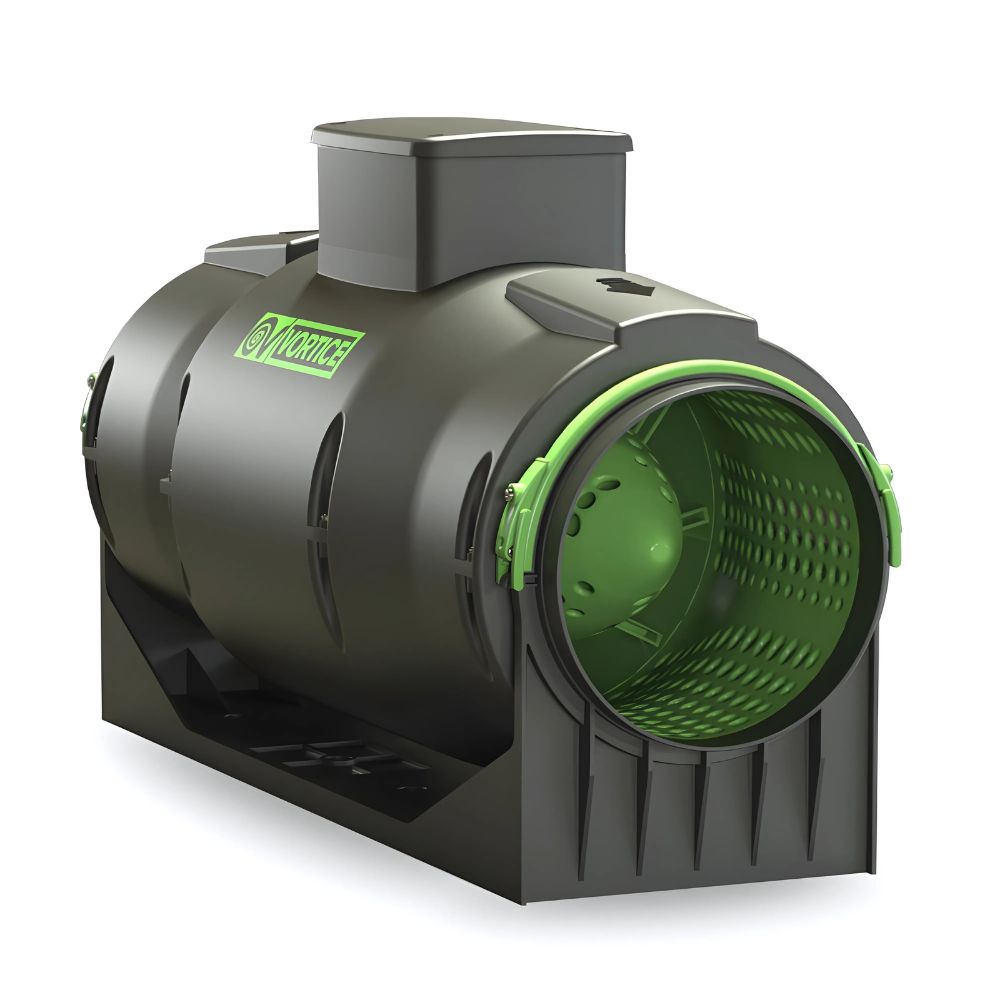

Vortice Lineo Quiet ES Mixflow In Line Fan 100mm
IN STOCK | Typically dispatches within 3 business days
$819.00
Capacity: 300 m3/hr (83.3 l/s)
Motor Type: EC Mixflow
Ductable: Yes (100mm duct diameter)
View full technical specs further down the page

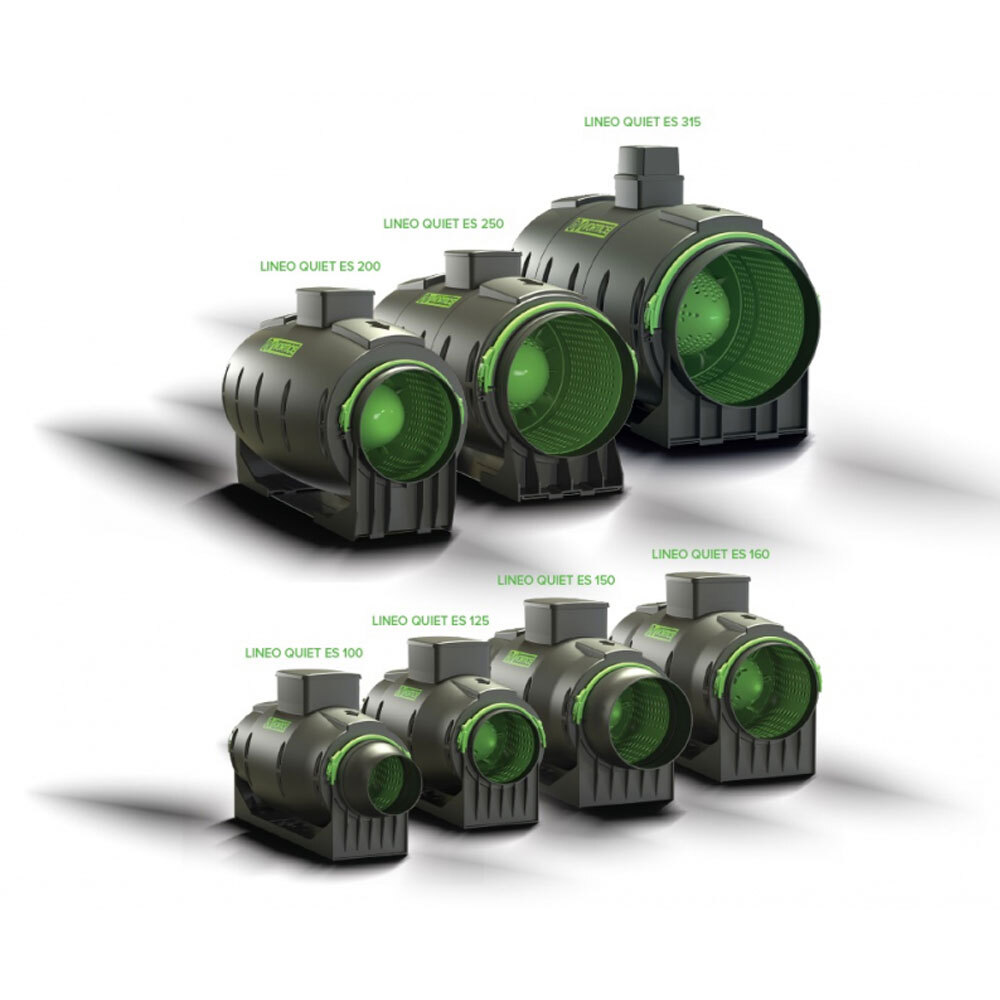

Premium inline fan with an EC motor made in Italy. The Vortice Lineo QUIET ES inline fans are suitable for residential, commercial or industrial applications and are the gold standard in terms of noise (40.7 decibels) and energy efficiency. Further details about this product are below:
DISCLAIMER: This product is made to order and has an ETA of 4 to 6 weeks.
Need Accessories? – Scroll to the bottom of the page to view suitable accessories, including ducting and vents.
About the Vortice Lineo Quiet ES 100
Enclosures constructed from plastic resin with fire-resistant properties, E2 class, according to ISO EN 11925-2: 2010, in areas close to the motor and electrical components.
Casing is coated that absorbs sound, optimised to minimise sound emissions radiated into the environment and transmitted through exhaust and supply ducts.
High-quality EC (brushless) motor, thermally protected, with a shaft mounted on ball bearing supports, coupled with a centrifugal impeller.
High water resistance: IPX5 (if installed in a duct).
Designed with a thermal fuse that prevents overheating

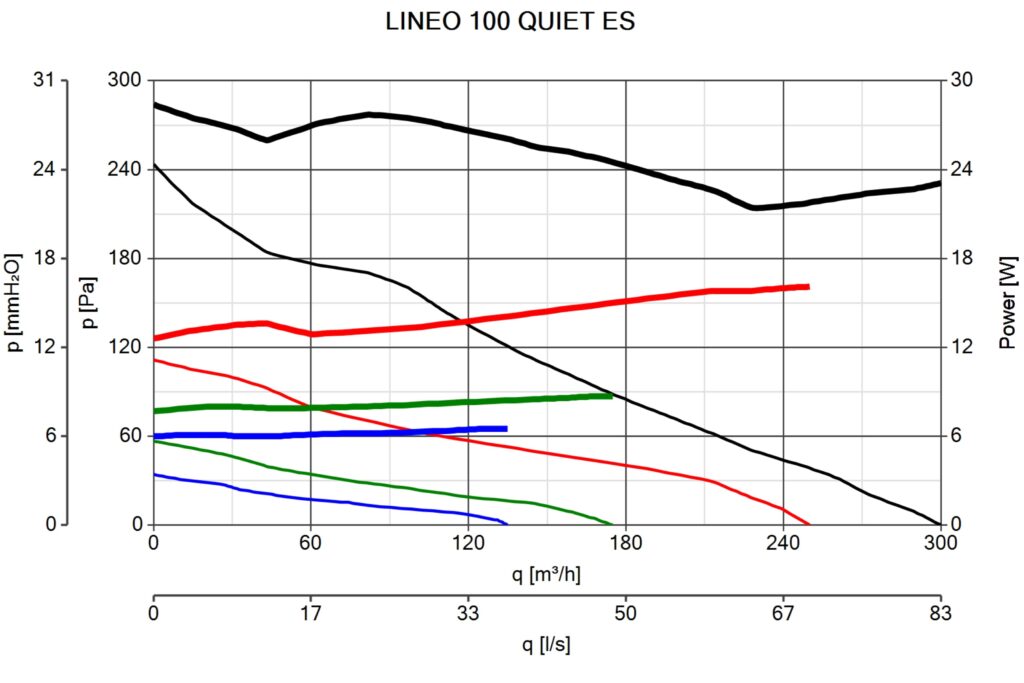

Ultra energy efficiency, consuming a mere 23 watts while maintaining a powerful airflow rating of 300 m3/hr even when set to maximum speed.
Control Options
Note – Electrician required for all 3 options:
Recommended to wire the fan conventionally for single-speed operation.
Configure the motor to operate at a dual speed (you can specify the high and low speeds) and install a standard position switch to enable switching between high and low.
Wire it to a potentiometer (accessory noted below) to have greater control, like a dimmer switch
| Manufacturer | Vortice |
|---|---|
| Model Number | 17170 |
| Material | Plastic |
| Motor Power (Wattage) | 23w |
| Capacity (m3/hr) | 300 m3/hr |
| Capacity (L/S) | 83.3 l/s |
| Motor Type | Mixflow |
| Recommended Room Size (Based on Achieving 15 air changes per hour) | 34 m3 |
| Noise Level | 40.7 dB(A) |
| IP Rating | IPX5 |
| Voltage | 220 – 240 |
| Installation | This fan requires hardwiring by an electrician |

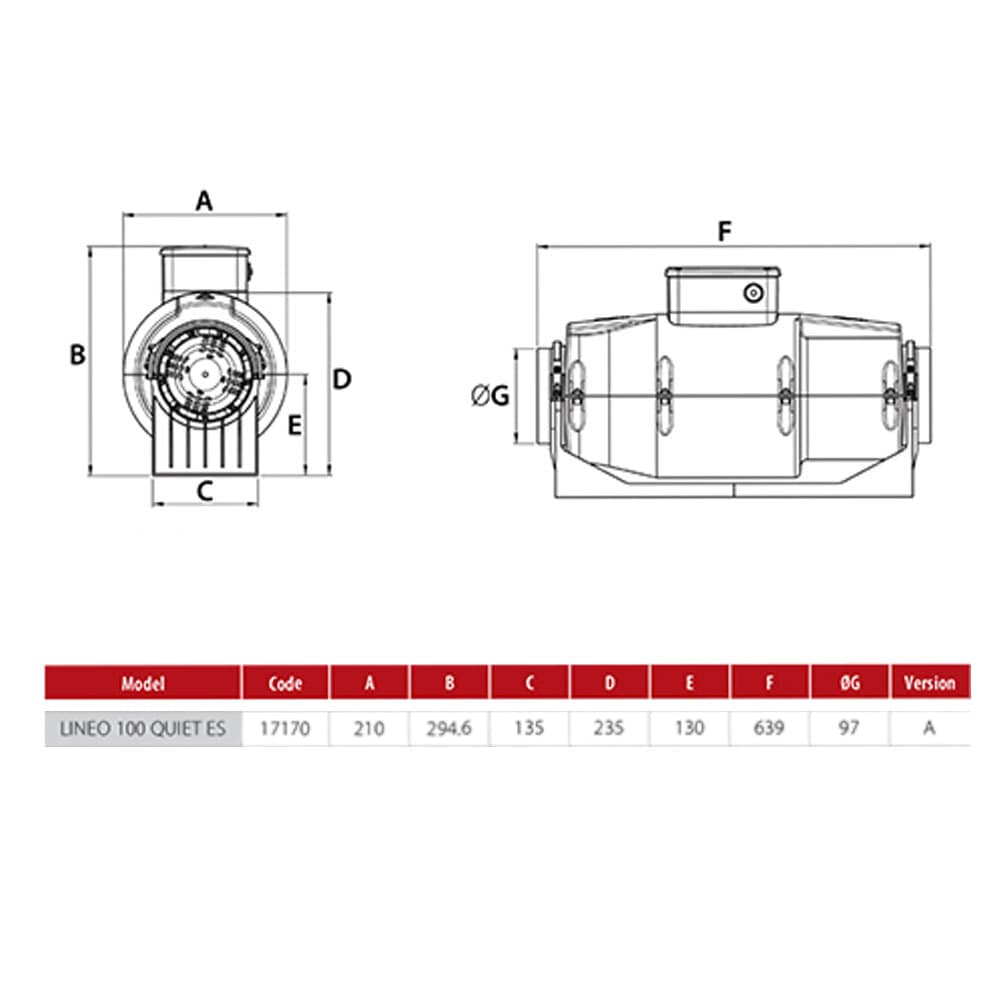

| Duct Size | 100mm |
| Max Temperature of Transferred Air | 60 °C |
| Warranty | Vortice – The manufacturer offers a 2 year replacement warranty (conditions apply). |
| Capacity Disclaimer | All capacity figures and technical data quoted is provided by the manufacturer, Capacity figures are based on the unit freeflowing (not connected to ducting). If you are ducting this unit it is advisable to keep the duct run as short, straight and tight as possible |
| Room Size Recommendation Disclaimer | As stated our "Recommended room size" figures are based on achieving 15 air changes per hour. Generally we have found this to be suitable, however it does not constitute specific advice. |
