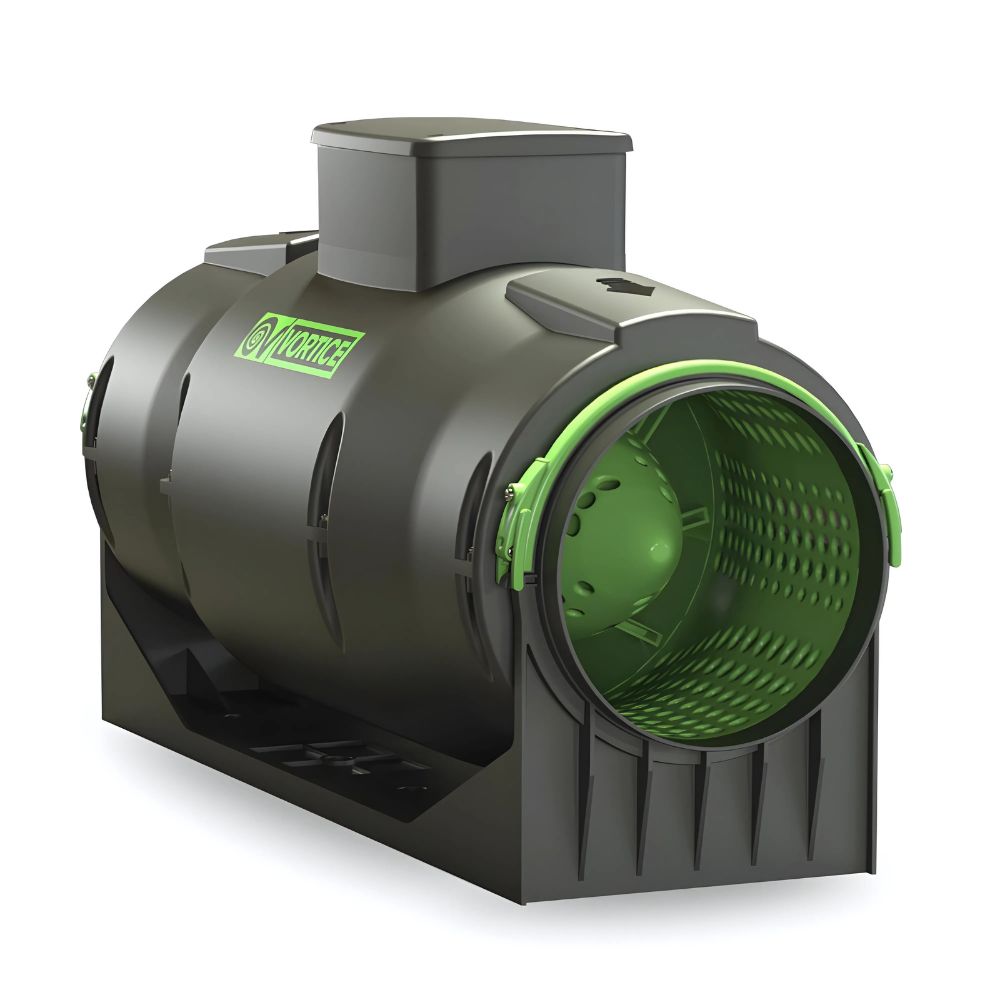

Vortice Lineo Quiet ES Mixflow In Line Fan 125mm
IN STOCK | Typically dispatches within 3-5 business days.
$879.00
Capacity: 380 m3/hr (105.6 l/s)
Motor Type: EC Mixflow
Ductable: Yes (125mm duct diameter)
View full technical specs further down the page
Vortice Lineo QUIET ES inline fans, a superior EC motor model crafted in Italy. Ideal for various settings, including residential, commercial, and industrial applications, these fans are renowned for their exceptional noise reduction (40 decibels) and energy efficiency, setting the industry standard. Further information about this product is available below.
DISCLAIMER: This product is made to order and has an ETA of 4 to 6 weeks.
Need Accessories? – Scroll to the bottom of the page to view suitable accessories, including ducting and vents.
Add a Run on timer
This fan can be used with the following run on timer. An electrician will be required to install a 4 pin plug outlet. This timmer allows for the run on period to be adjusted from 0-60 minutes.
About the Vortice Lineo Quiet ES 125mm
Enclosures constructed from flame-resistant plastic resin., E2 class, according to ISO EN 11925-2: 2010, in areas close to the motor and electrical components.
Casing has a coating that is designed to absorb sound, optimised to minimise sound emissions radiated into the environment and transmitted through exhaust and supply ducts.
EC (brushless) motor that is protected against thermal damage. Shaft mounted on ball bearing supports, paired with a centrifugal impeller.
High water resistance: IPX5 (if installed in a duct).
Equipped with a thermal fuse, a safety mechanism that prevents overheating.

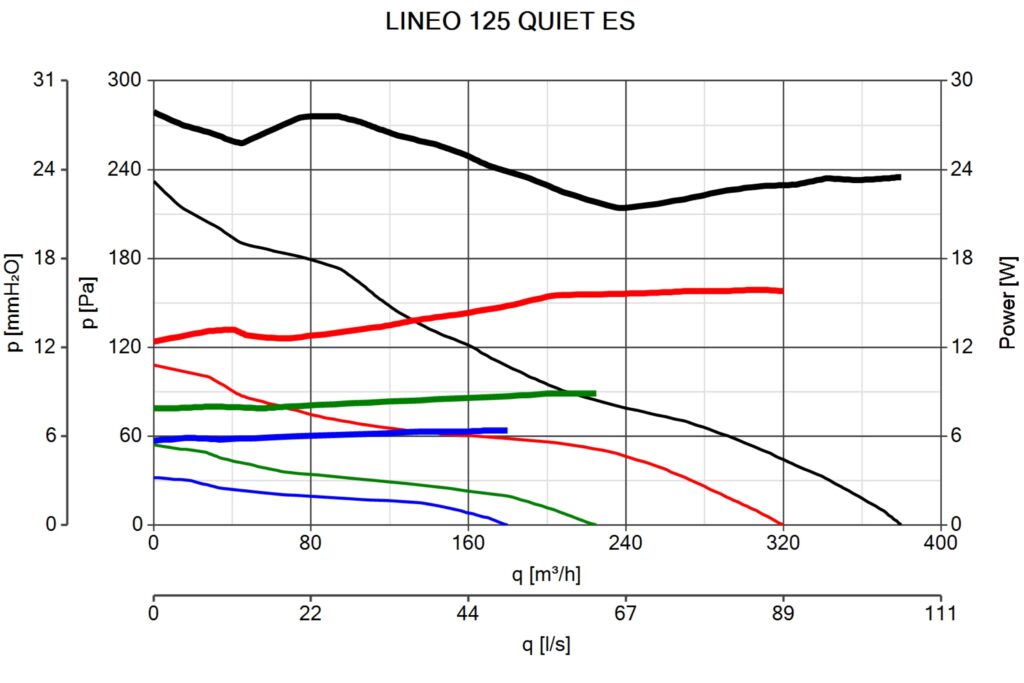

Ultra energy efficient – on high speed, this fan has a power consumption of only 24 watts while providing an airflow rate of 380 m3/hr.
Control Options
Note – Electrician required for all 3 options:
Wire in a standard fashion to run as a single-speed fan
Set it up to be a 2-speed motor (you can specify the high and low speeds) and just wire it up to a standard position switch to go between high and low
For enhanced control similar to a dimmer switch, connect it to a potentiometer (referenced below)
| Manufacturer | Vortice |
|---|---|
| Model Number | 17171 |
| Material | Plastic |
| Motor Power (Wattage) | 24w |
| Capacity (m3/hr) | 380 m3/hr |
| Capacity (L/S) | 105.6 L/S |
| Motor Type | Mixflow |
| Recommended Room Size (Based on Achieving 15 air changes per hour) | 34 m3 |
| Noise Level | 40 dB(A) |
| IP Rating | IPX5 |
| Voltage | 220 – 240 |
| Installation Statement | This fan requires hardwiring by an electrician |

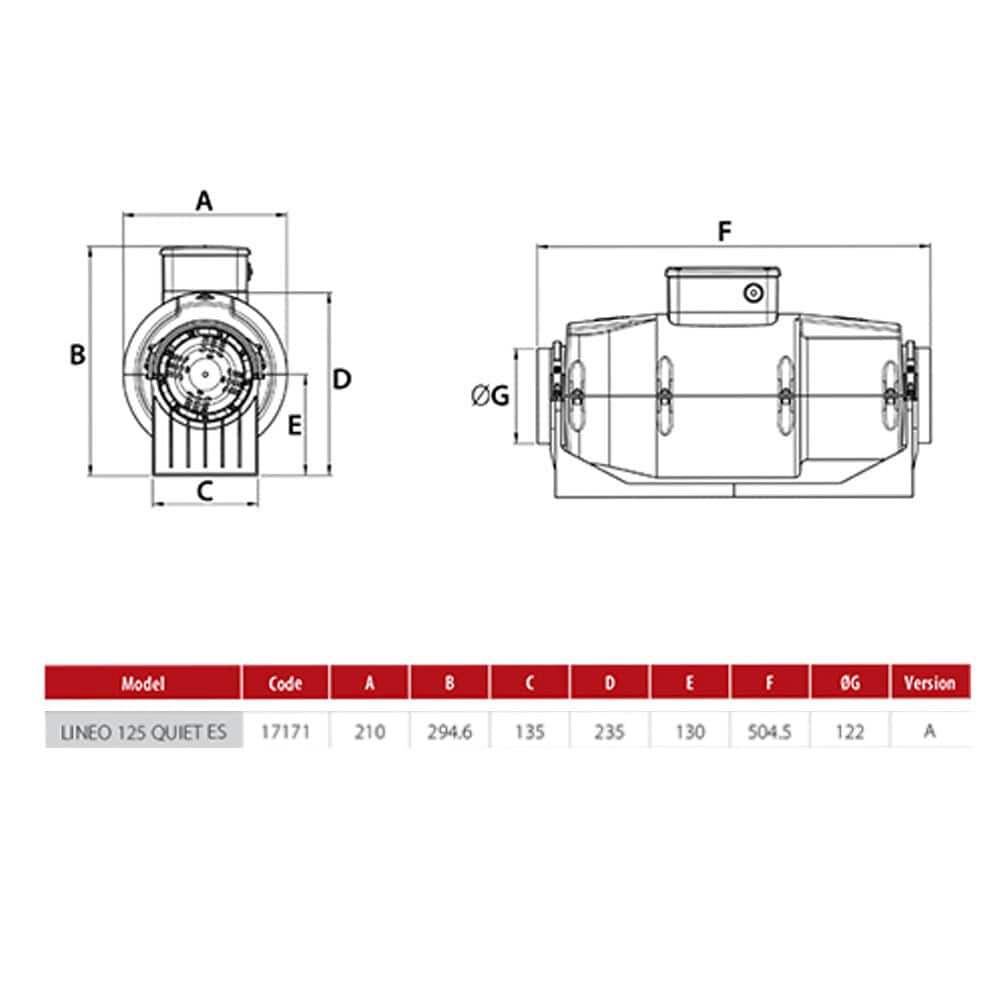

| Duct Size | 125mm |
| Max Temperature of Transferred Air | 60 °C |
| Warranty | Vortice – The manufacturer offers a 2 year replacement warranty (conditions apply). |
| Capacity Disclaimer | All capacity figures and technical data quoted is provided by the manufacturer, Capacity figures are based on the unit freeflowing (not connected to ducting). If you are ducting this unit it is advisable to keep the duct run as short, straight and tight as possible |
| Room Size Recommendation Disclaimer | As stated our "Recommended room size" figures are based on achieving 15 air changes per hour. Generally we have found this to be suitable, however it does not constitute specific advice. |
