Capacity: 380 m3/hr (106 l/s) Hole (Cutout) Size: 150mm round Face Size: 345 x 262mm Motor Type: Centrifugal Ductable: Yes (125mm duct diameter) View full technical specs further down the page

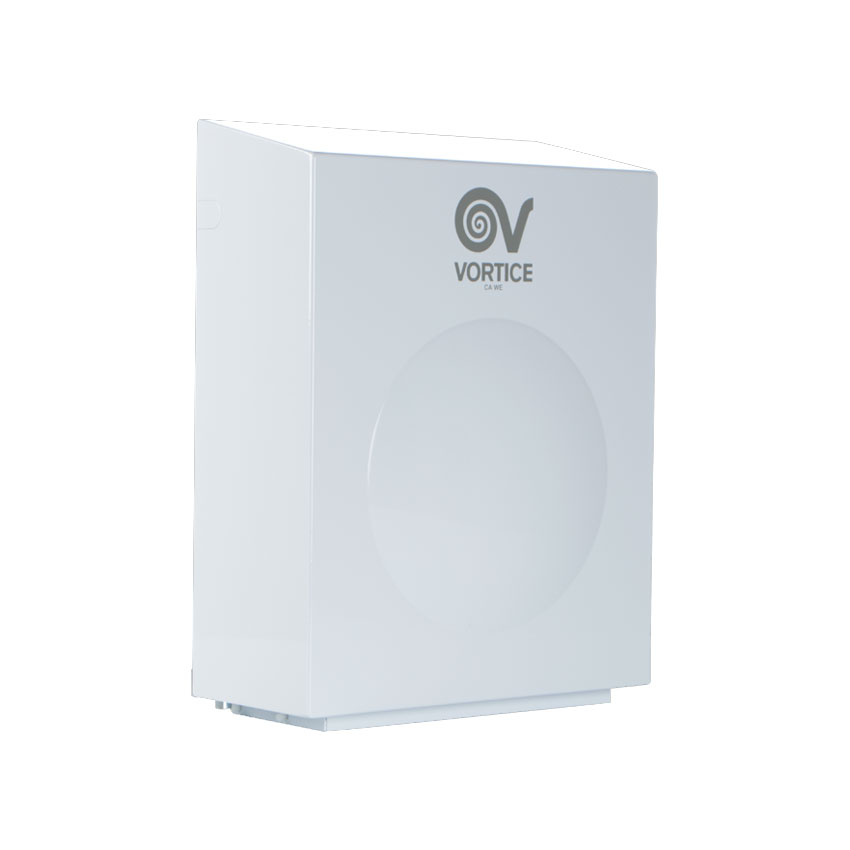

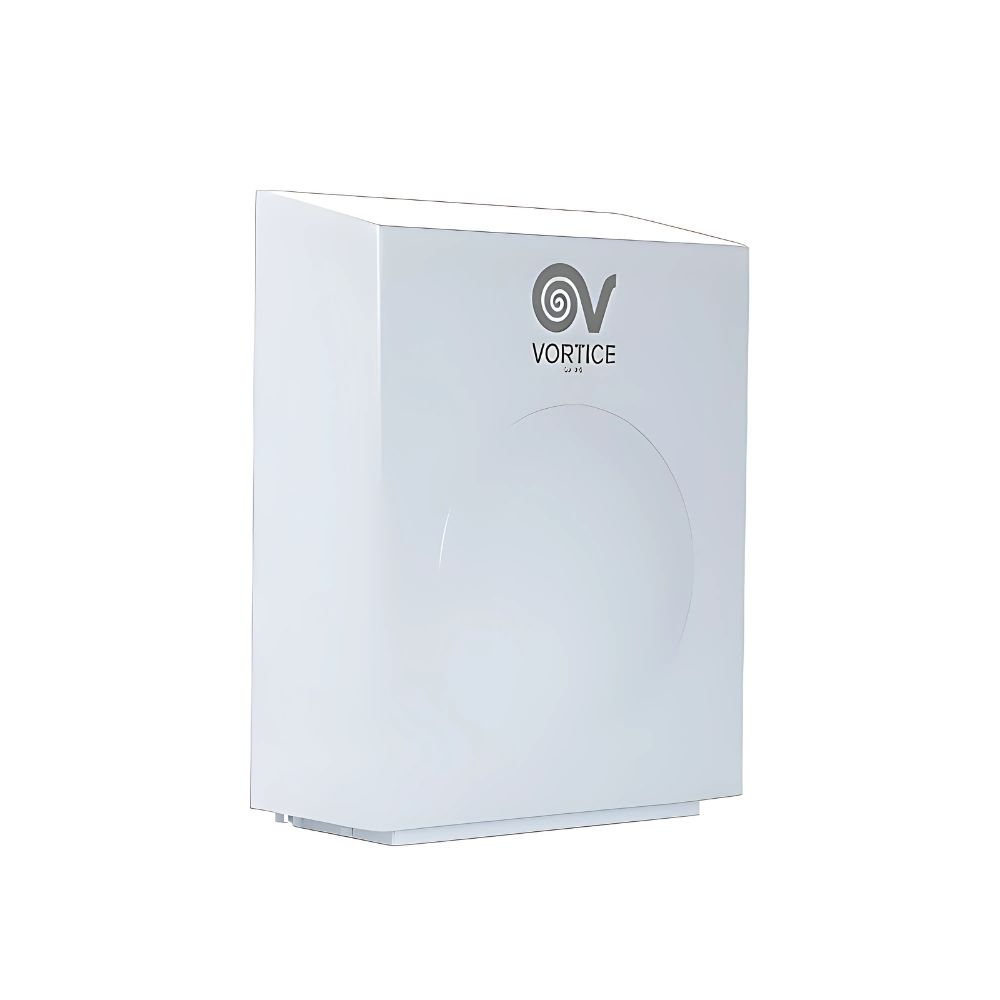

The Vortice CA is a high quality centrifugal wall fan designed for external wall mounting. The fan has a high quality AC motor with inbuilt thermal overload cutout and shaft turning in ball bearings, coupled to backward curved impeller. This Vortice External Wall Mounted Centrifugal Fan is ideal for kitchens, bathrooms, storage areas, cellars, bars, fitness centres, workplaces and shops. It is a solution suitable for those spaces where more than one room requires centralised extraction. This fan has a two speed option, has steel housing and utilises long-life polyester paint. In order to stop air returning the room there is also an automatic close function. View more technical information below or click on the red pdf button to download a detailed spec sheet.
This external centrifugal fan can be an alternative option in the case that an inline fan cannot be installed due to lack of access, where the performance of an inline is required.
