FANCO HABITAT CENTRAL

Optimise energy efficiency with the premium Fanco Habitat Central, a high-performance Heat Recovery Ventilation (HRV) system that transfers warmth from outgoing air to incoming air with up to 92% efficiency. It continuously supplies fresh, filtered air while removing stale, moisture-laden air—and recovers heat to reduce your home’s heating demand.

Features an EC motor that delivers up to 300 m³/hr, versatile design for horizontal or vertical installation, coupled with filter replacement alerts.

Relative Humidity and Temp sensors are included as standard and multiple control options available for added functionality. Find more information on the spec sheet below.

SPEC SHEET



Model number EEFCHC340
Heat recovery Up to 92 %
Power consumption 180W (300 m3/hr @ 100 Pa)
Filter class G4 (F8 and H13 Optional)
Air duct connection 150 mm
Sound pressure level 37.2 dB(A) as per GB/T 21087-2020
Warranty 2 years

Width: 1051 mm

Depth: 586 mm

Height: 287 mm

Weight: 37.7 kg

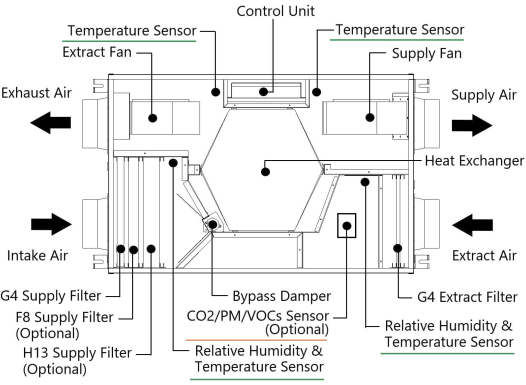

Diagram of the Fanco Habitat Central heat recovery ventilation unit showing internal components, sensors, filters, and airflow directions

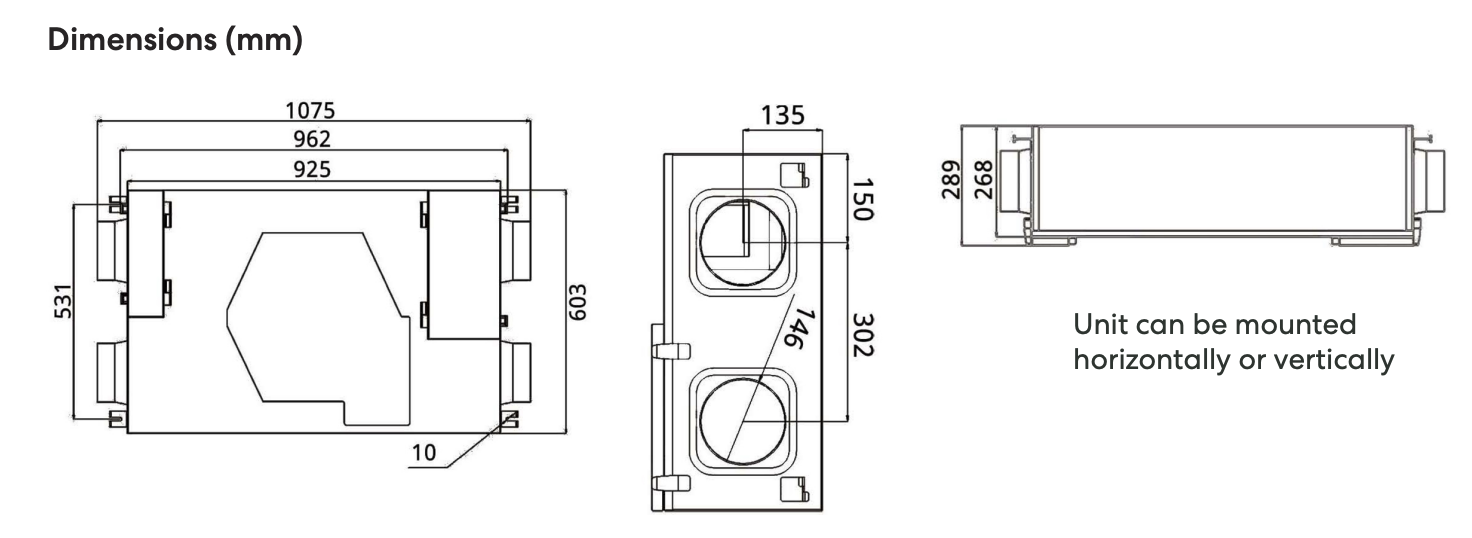

Technical drawing of the Fanco Habitat Central heat recovery ventilation system showing product dimensions and mounting options
