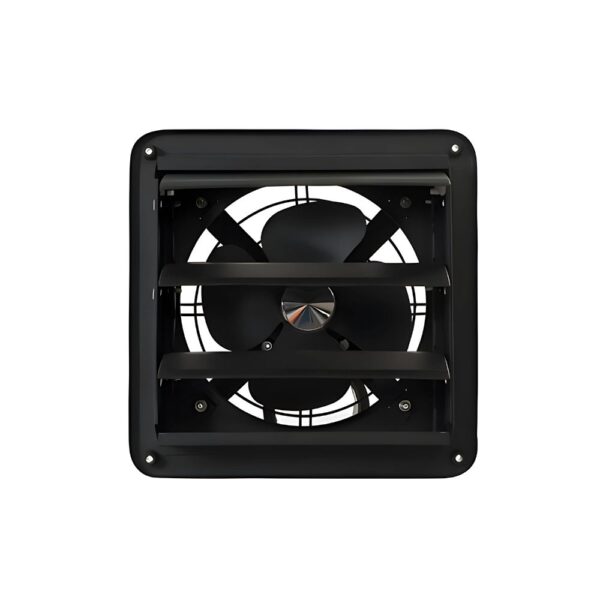

Commercial Wall Fan w/ Gravity Shutters 300mm

IN STOCK | Typically dispatches within 3 business days

(1 customer review)

$209.00

Purchase this product and earn 209 PurePoints for a discount on a future purchase.


SKU: EWFM300 Categories: , ,

spec sheetspec sheetCapacity: 1080 m3/hr (300 l/s)
Hole (Cutout) Size: 344mm Square
(Wooden frame for the fan needs to be fabricated)
Face Size: 379mm Square
Ductable: Non-ductable
View full technical specs further down the page

This fan is an industrial-grade wall-mounted exhaust fan with self-closing louvres that prevent reverse airflow and is suitable for industrial, commercial or domestic applications. It can extract heat, air or dust or ventilate a space like a factory or garage. The fan is designed to extract large volumes of air (a massive capacity of 1080 m3/hr) at a relatively low noise.

The fan is easy to install and comes with a 240v motor ready to be hardwired.

Commercial Wall Fan w/ Gravity Shutters Installation Requirements

This appliance must be installed by a qualified tradesperson, with all electrical connections carried out by a licensed electrician by local regulations.

An approved means of disconnection must be included in the fixed wiring. The unit is designed for wall mounting with the louvres facing the exterior of the building. Installation involves cutting a wall opening and, depending on the wall type, boxing the unit in with a timber frame or galvanised angle (refer to the installation manual for frame specifications).

Flashing and/or foam seal tape is required to ensure a weather-tight fit. The unit should be securely fixed using appropriate fasteners, and a test run must be performed to ensure free blade rotation and vibration-free operation.

PRODUCT NOTE: This fan requires hardwiring by an electrician and will have to be boxed in with a timber frame or gal angle. For full installation procedures and safety requirements, refer to the official IWEL Installation Manual provided on the product page.

Manufacturer

Fanmaster
Model Number

IWEL 300
Colour

Black
Material

Metal
Hole Size

344mm
Capacity (m3/hr)

1080 m3/hr
Capacity (L/S)

300 L/S
Recommended Room Size (Based on Achieving 15 air changes per hour)

72 m3
Motor Power (Wattage)

45w
Noise Level

58 db
IP Rating

No IP rating Published
Voltage

240
Installation

This fan requires hardwiring by an electrician
Installation Location

Wall
Includes Backdraft Shutter

No
Ductable?

Non-Ductable
Warranty

Fanmaster – The Manufacturer offers a 1 year replacement warranty (conditions apply)
Capacity Disclaimer

All capacity figures and technical data quoted is provided by the manufacturer, Capacity figures are based on the unit freeflowing (not connected to ducting). If you are ducting this unit it is advisable to keep the duct run as short, straight and tight as possible
Room Size Recommendation Disclaimer

As stated our "Recommended room size" figures are based on achieving 15 air changes per hour. Generally we have found this to be suitable, however it does not constitute specific advice.
