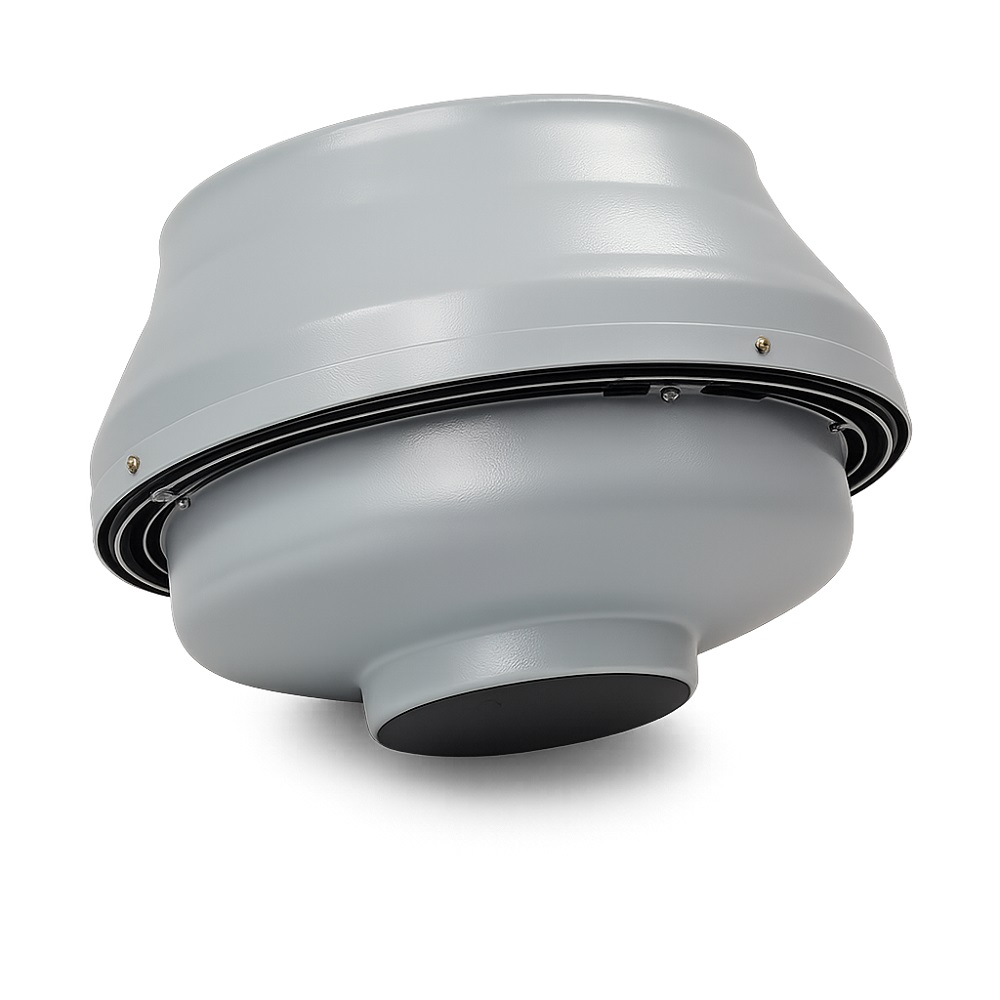

Elicent MRF Roof Mounted Exhaust Fan - angled

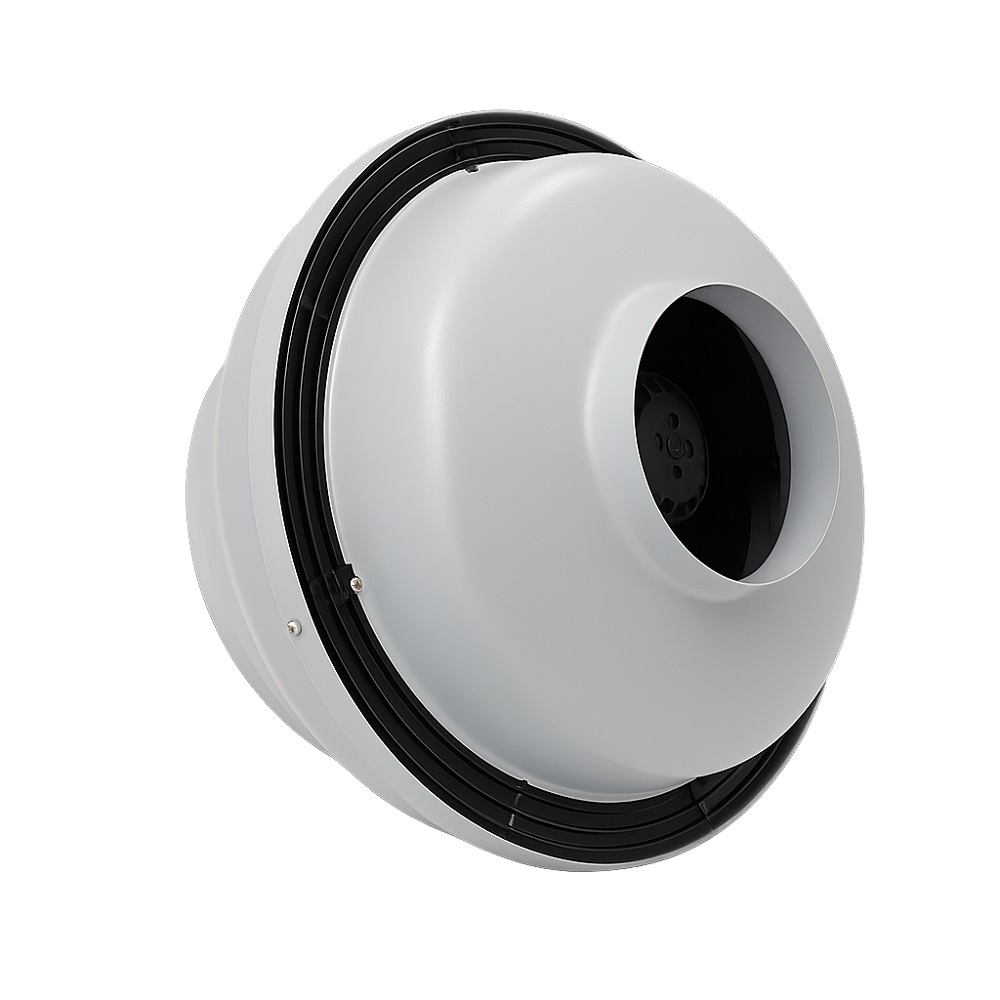

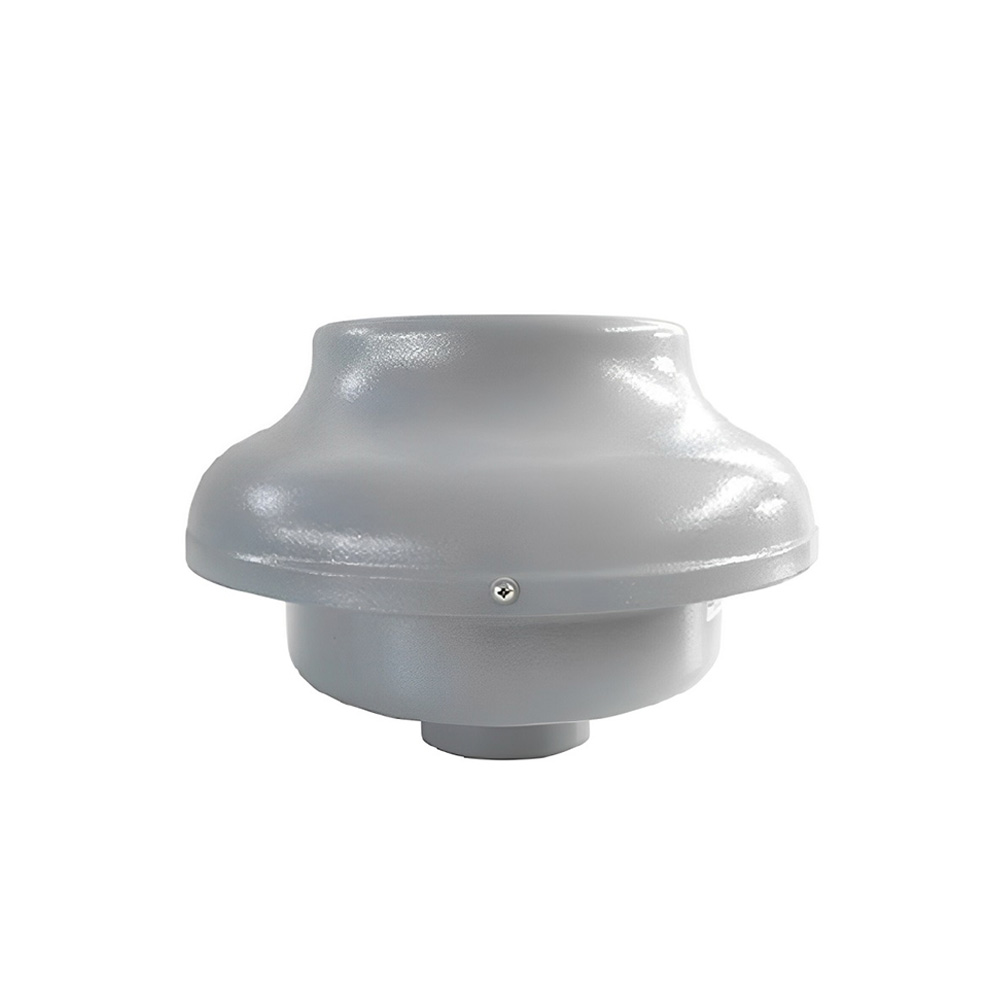

Elicent Mini Roof Centrifugal Fan 100mm Duct

Name: Elicent Mini Roof Centrifugal Fan 100mm Duct
SKU: ERELRF100
Availability: InStock

Original price was: $310.00.Current price is: $270.00.

Pre-Order Product: ETA Mid Jun

SKU: ERELRF100 Categories: Elicent, Elicent MRF Exhaust Fan, Exhaust Fans, Roof Exhaust Fans

Capacity: 318 m3/hr (88.33 l/s)
Hole (Cutout) Size: 100mm Round
Motor Type: Centrifugal
Ductable: Yes (100mm)

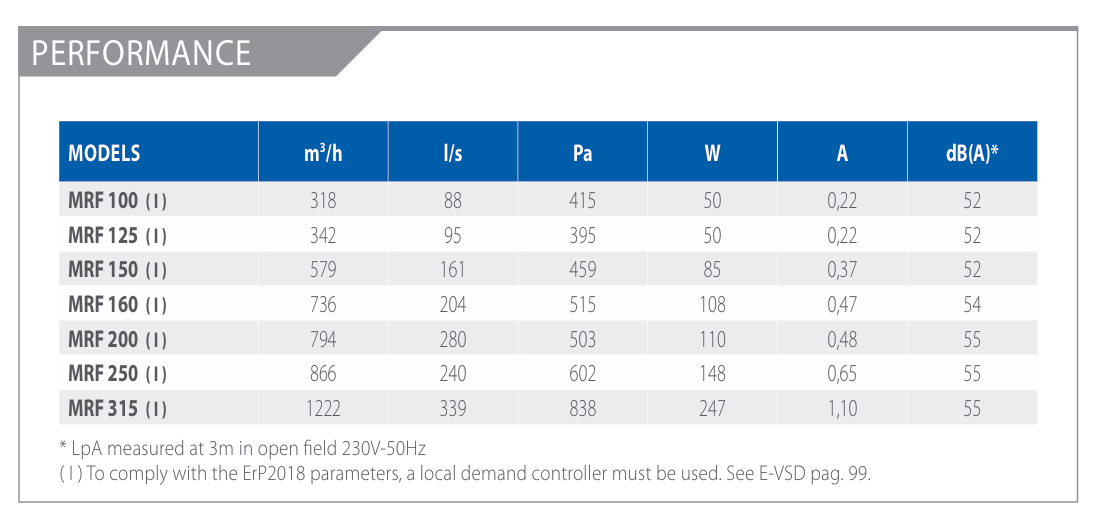

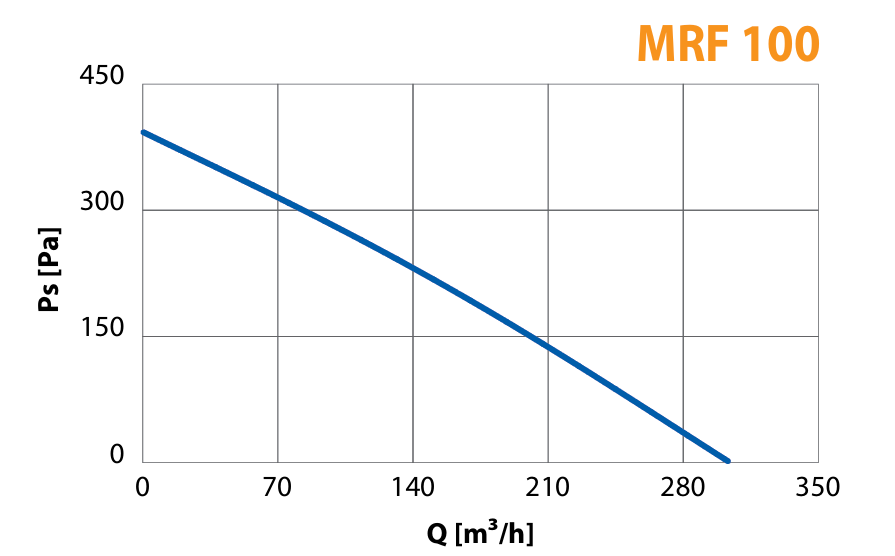

View full technical specs further down the page

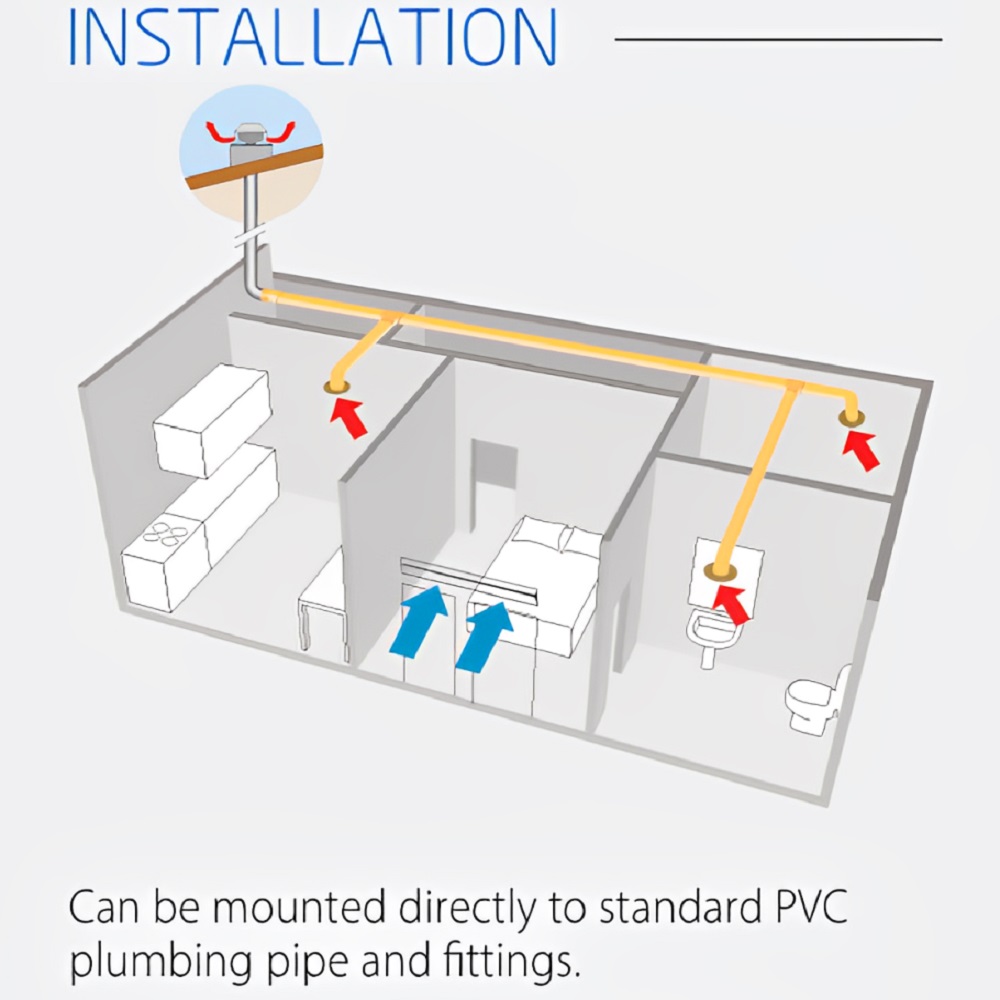

The Elicent Mini Roof Centrifugal Fan 100mm Duct is a sophisticated ventilation solution engineered for direct connection to standard PVC plumbing pipes and fittings. It boasts a robust centrifugal exhaust fan design with an efficient airflow capacity. Powered by a durable 50w motor. Designed to withstand environments up to 60°C, this IPX5-rated fan is expertly ductable, ensuring adaptability for centralised ventilation requirements. Constructed from high-grade aluminium and steel sheet with an epoxy finish, the fan is highly resistant to atmospheric agents, ensuring longevity and reliability. Additionally, the compact size and ball-bearing motor contribute to its efficiency, making it a cost-effective choice for both residential and commercial applications.

Manufacturer	Elicent
Model Number	2MF1015
Material	Metal
Capacity (m3/hr)	318 m3/hr
Capacity (L/S)	88.33 l/s
Motor Type	Centrifugal
Recommended Room Size (Based on Achieving 15 air changes per hour)	21.2 m3
Noise Level	52 dB(A)
Installation	This fan requires hardwiring by an electrician
Installation Location	Roof
Ductable?	Ductable
Motor Power (Wattage)	50w
Warranty	The manufacturer offers a 2 year replacement warranty (conditions apply).
Capacity Disclaimer	All capacity figures and technical data quoted is provided by the manufacturer, Capacity figures are based on the unit freeflowing (not connected to ducting). If you are ducting this unit it is advisable to keep the duct run as short, straight and tight as possible
Room Size Recommendation Disclaimer	As stated our "Recommended room size" figures are based on achieving 15 air changes per hour. Generally we have found this to be suitable, however it does not constitute specific advice.
IP Rating	IPX5
