Panasonic Air Curtain – 1500mm (High Velocity)

Panasonic Air Curtain Key Features

• Durable ABS Plastic casing for superior rust resistance
• High/Low speed options controlled by a push button
• Sleek, modern design with smooth lines
• Cross-flow fan delivers powerful air velocity and coverage
• Energy-efficient motor minimises power consumption
• Operates quietly at just 50.5 dB(A) on low speed
• Adjustable air deflection vent for customised airflow direction
• Flexible installation and easy maintenance
• Compatible with select Panasonic Air Conditioning systems
• Available in sizes: 900mm, 1200mm, and 1500mm (both standard and high velocity options)

***NOTE – these air curtains are suitable for indoor installation ONLY.

Panasonic Air Curtain Installation Information

• Install at a minimum height of 2.3m to avoid accidents
• Mount horizontally above doors or as close to the opening as possible to control side airflow
• Can also be used effectively in compact or restricted spaces
• Easy wall-mounting system with the included bracket
• Avoid installing the product in areas exposed to oil fumes
• Do not install in locations with excessive dust
• Ensure the mounting surface is even, with flatness no more than 3mm deviation
• Maintain a minimum 50mm distance between the product and the ceiling
• Leave a gap of 20-40mm between units when installing multiple products in a row

Common Air Curtain Installation Locations

• Food industry, where climatic and hygienic separation is required between departments, alongside the quick and easy passage of goods and people
• Hospitals and laboratories
• Catering and hospitality (kitchen odours are kept away from dining rooms)
• Offices, schools
• Cinemas, bookshops
• Warehouses and manufacturing departments
• Bars, restaurants, ice cream parlours
• Supermarkets
• Banks
• Indoor swimming pools, sports centres, and changing rooms
• Greenhouses, drying rooms

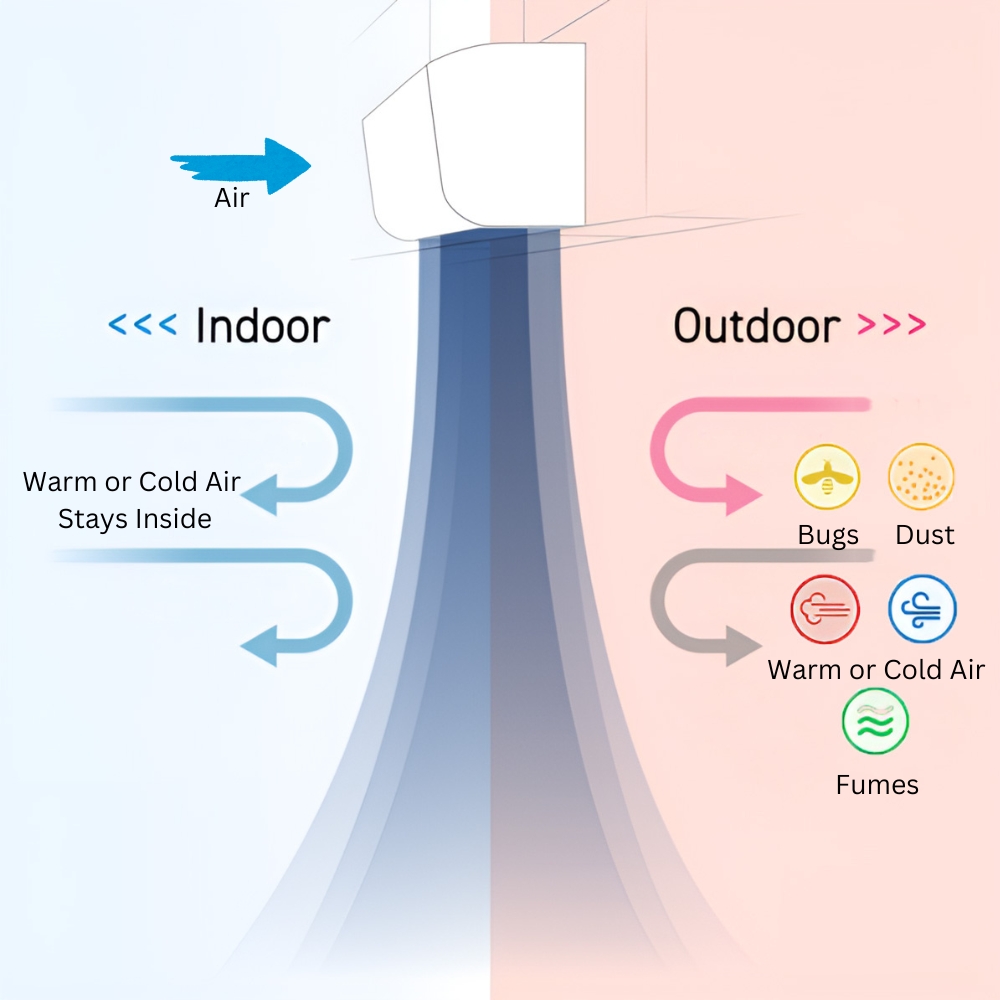

How Air Curtains Work

Air curtains create an invisible barrier of high-velocity air that keeps outside hot or cold air, insects, and pollutants from entering while maintaining indoor temperature and reducing energy loss.

Other noteworthy features are detailed below:

• Temperature Control: Helps retain conditioned air, minimising temperature changes when doors are opened and reducing energy waste*
• Odour Control: Prevents odours and contaminants from crossing between areas, ideal for separating food smells and exhaust fumes*
• Insect Barrier: Blocks out harmful and bothersome insects, maintaining sanitation and comfort standards*
• Dust Protection: Helps keep out dust and dirt from outside, ensuring a cleaner environment in places like retail stores, factories, and mine sites*

*Subject to the type of application and the surrounding environment.
