TT Mixflow In Line Fan 150mm with Inbuilt Speed Switch & Plug
IN STOCK | Typically dispatches within 1-2 business days
$189.00
Extraction Capacity: 520 m3/hr (144.44 l/s)
Motor Type: Mixflow
Ductable: Yes (150mm duct diameter)
View full technical specs further down the page

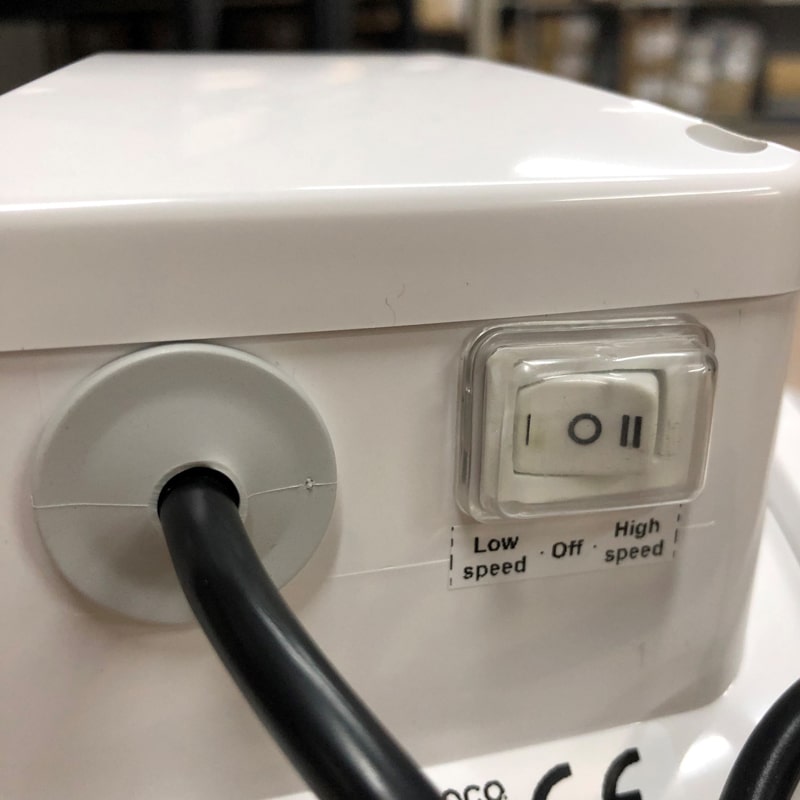

This 150mm in-line exhaust fan features a continuously rated, long-life motor with an integrated side switch, allowing you to manually toggle between two performance levels without professional electrical installation. The lower setting operates at 405 m3/hr and offers significantly quieter performance, while the high-speed setting increases output to 520 m3/hr for maximum extraction.
Need Accessories? – Scroll to the bottom of the page to view suitable accessories including ducting and vents.
Add a Run on timer
This fan can be used with the following run on timer. An electrician will be required to install a 4 pin plug outlet. This timmer allows for the run on period to be adjusted from 0-60 minutes.
Please Note: This fan comes with a ‘flex and plug’ so the fan can simply be plugged into a standard powerpoint. Please also be aware that we are unable to accept returns for ‘change of mind’ reasons if a plug is installed. The flex is 1m in length. The product’s actual colour may vary – in some cases, there may be a colour difference between the motor and the intake/outlet points (one may be slightly more grey than the other).
| Manufacturer | Fanco |
|---|---|
| Model Number | EXVUTT150RV |
| Material | Plastic |
| Capacity (m3/hr) | 520 m3/hr |
| Capacity (L/S) | 144.4 L/S |
| Motor Type | Mixflow |
| Recommended Room Size (Based on Achieving 15 air changes per hour) | 34.6 m3 |
| Noise Level | 44 dB(A) |
| IP Rating | IPX4 |
| Voltage | 230 |
| Installation Statement | This fan comes with a lead and plug for connection to a power socket, To use this product in conjunction with hardwired accessories, an electrician will be required |
| Duct Size | 150mm |
| Motor RPM | 2460 |
| Max Temperature of Transferred Air | 60 °C |
| Warranty | Fanco – The manufacturer offers a 2 year replacement warranty (conditions apply) |
| Capacity Disclaimer | All capacity figures and technical data quoted is provided by the manufacturer, Capacity figures are based on the unit freeflowing (not connected to ducting). If you are ducting this unit it is advisable to keep the duct run as short, straight and tight as possible |
| Room Size Recommendation Disclaimer | As stated our "Recommended room size" figures are based on achieving 15 air changes per hour. Generally we have found this to be suitable, however it does not constitute specific advice. |
| Lead & Plug Customisation Disclaimer | Please be aware that we are unable to accept returns for ‘change of mind’ reasons if a plug is installed. The flex is 1m in length. |
38 reviews for TT Mixflow In Line Fan 150mm with Inbuilt Speed Switch & Plug
Only logged in customers who have purchased this product may leave a review.
You may also like…
Flynn (verified owner) –
Performance is good, keeps steam to a minimum. On the high speed setting it is louder, airflow is good. On the lower speed setting it is a lot quieter, but airflow may not be enough depending on your circumstance.
Shipped quickly.
No further interaction.
Robert (verified owner) –
Excellent communication
Anthony (verified owner) –
This was purchased to replace an older fan for a bathroom with no other ventilation. It was easy to install and has been working flawlessly. I would highly recommend this product.
Fast response, great communication and arrived quickly after ordering
Harry (verified owner) –
The product fulfilled my requirements re. I wanted to cool down my garage / workshop which I spend most of my time in. I am a retired electrical engineer specialising in vacuum based scientific instruments.
The garage 64 cubic m adjoins a small bedroom 27 cubic m with a non ducted air conditioner which gets the bedroom down to 21 degC even on the dry mode. The transfer fan gets the temperature in the garage down to 24 degC 54% relative humidity quite a pleasant working environment plus it helps get rid of the heat brought into the garage by the car after being in the sun.
From a design point the data given for the fan v length of duct is helpful. I know the rules for air flow i.e. capacity of fan, length of duct, number of corners, number of restrictions (changes of diameter) even type of duct (smooth or corrugated). I have built vacuum systems with a specification of 10 -14 Atmosphere. However you don’t provide conductance values for the inlet / outlet products for example should I choose Vent Fixed Flyscreen 150mm Fixed or Vent Cone Ceiling Diffuser 150mm for best conductance?
Overall I am very pleased with the product. I have removed / relocated the dual speed switch to make it more accessible.
Neil (verified owner) –
Review was left without specific comments
Alan (verified owner) –
good performance well made
Graham (verified owner) –
I wanted something that would draw the steam out of the bathroom and this does it fantastic easy. Installation can’t ask for anything better and the service was excellent as well.
Mervyn (verified owner) –
Overall experience so far is positive. Installation with flexible ducting took a while due to limited under floor space. The fan seems to work well extracting from two rooms. Noise level is low inside the house and virtually silent outside.
David (verified owner) –
Review was left without specific comments
Margaret (verified owner) –
Review was left without specific comments
Claudio (verified owner) –
good value for money and size of unit
Dick Vernon –
A 5 Star review was submitted by customer without further comments.
Ryan (verified owner) –
Accurate description of goods and well priced
Ray –
3 speed fan and works great
Michael –
Good product, with the three pin plug added a great feature.
Colin –
Really works well. Great product.
Chris –
easy to install having two speeds gave us flexibility and low noise
Michael –
The Pure Ventilation team were able to help me out with a last minute change after I had submitted my order, as I had forgotten an extra length of conduit. Delivery time was quick (especially as I live in WA) and the inline fan itself is great. This replaced two old fans in a 7 meter long and narrow bathroom. I was actually surprised at how much air this unit moves, much more than the single fan options, and it works a lot better as I have a skillion roof and this kit allows the air to be vented outside more effectively. Highly recommend these guys to buy from.
Alex –
TT Mixflow In Line Fan 150mm with Inbuilt Speed Switch & Plug, Square Vent with 150mm Duct Adaptor – White
Andrew –
Extraction rate as expected – solid unit
Rafael –
Paul –
Fouad –
Great inline fan I used it for a laundry
Stephen –
Awesome performance and easy to install by my electrician. Needed this to ventilate steamy bathroom. Plus you can choose between 2 speeds.
Chris –
Website had sufficient information on what to order. Order and delivery was fast and efficient, I changed the ducting on the standard kit to the R1.5 without any issue. Installation was straight forward. Customer service rep was able to help with all requests.
Neil –
This is a great fan very quiet
Sam –
Jodie –
Great no problems at all works very well.
Richard (verified owner) –
Bruce (verified owner) –
Works well so far, but only just installed
Tony (verified owner) –
Great service, good quality products and arrived within a few days of my on line order.
Jeremy Hicks (verified owner) –
Daniel Revie (verified owner) –
Filip Gorski (verified owner) –
Ken Winn (verified owner) –
Johannes Hartzenberg –
Works very well and is an efficient hot air extractor for us.
Darrel Young (verified owner) –
The fan works very well in the En-suite ceiling, easy to install especially the way the fan can be split and rotated on its base bracket.
John Mann (verified owner) –
I have not installed it yet but it looks ok
