| Manufacturer | Ventair |
|---|---|
| Material | Plastic |
| Hole Size | 296mm |
| Capacity (m3/hr) | 290 m3/hr |
| Capacity (L/S) | 80.56 l/s |
| Recommended Room Size (Based on Achieving 15 air changes per hour) | 16 m3 |
| Motor Power (Wattage) | 38w |
| Motor Height | 175mm |
| Minimum Install Depth | 200mm |
| Noise Level | 40 dB(A) |
| IP Rating | IPX4 |
| Voltage | 240 |
| Installation | Requires Hardwiring (electrician required) |
| Installation Location | Ceiling |
| Includes Backdraft Shutter | Yes |
| Ductable? | Ductable |
| Duct Location | Side Ducted |
| Duct Size | 150mm |
| Warranty | Ventair: The manufacturer offers a 5 year warranty on the motor (conditions apply) |

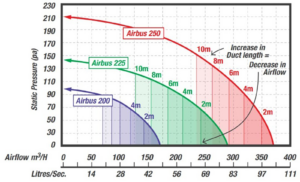

| Capacity Disclaimer | All capacity figures and technical data quoted is provided by the manufacturer, Capacity figures are based on the unit freeflowing (not connected to ducting). If you are ducting this unit it is advisable to keep the duct run as short, straight and tight as possible |
| Room Size Recommendation Disclaimer | As stated our "Recommended room size" figures are based on achieving 15 air changes per hour. Generally we have found this to be suitable, however it does not constitute specific advice. |

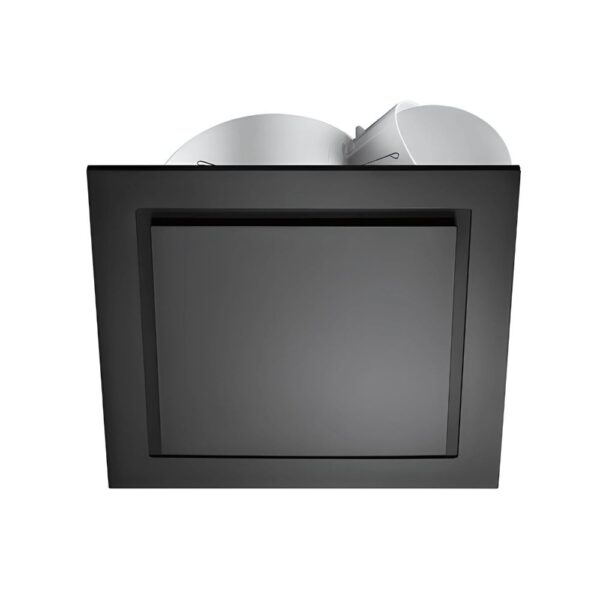

Airbus 225 Square Exhaust Fan with Timer – Black
$219.00
Capacity: 290 m3/hr (80.56 l/s)
Hole (Cutout) Size: 296mm Round
Face Size: 328mm Square
Ductable: Yes (150mm duct diameter)
View full technical specs further down the page
The round Ventair Airbus 225 in white features an adjustable run on timer – included is a 4 pin plug and socket. As a consequence an electrician will be required to wire the 4 pin plug outlet. The timer model requires a 4 pin plug to enable the fan to remain active beyond switching the power off, which enables the fan to continue running for a period of time afterwards. This functionality is particularly helpful to assist with steam and moisture removal. The run on timer is adjustable from 1-25 minutes, the default is set to approximately 7 minutes.
IMPORTANT – Unlike the non timer models this is not a DIY product.
