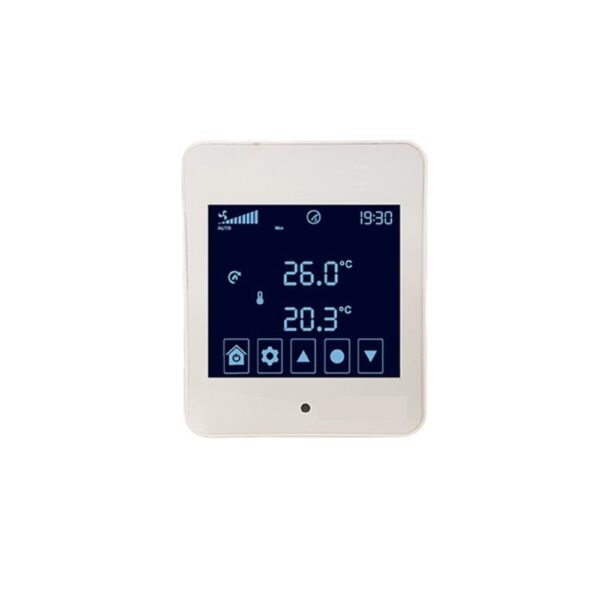

Touch Screen Controller for Heat Transfer Kits

IN STOCK | Typically dispatches within 3 business days

Original price was: $159.00.Current price is: $139.00.

Screen Type: 3.5 Digital LCD touch screen
Temperature range: Adjustable temperature range 5-35°C
Operating Voltage/Frecuency: 220-240V AC, 50Hz
Warranty: 12 months replacement
View full technical specs further down the page

The digital touch screen controller is designed to be used in conjunction with heat transfer kits. The controller allows for options such as scheduling and automatic operation based on room temperature. The wall mounted controller features touch screen technology – for more in depth information please read the installation manual which can be found below.

The Manrose Heat Transfer Touch Screen Controller provides precise, programmable control for residential heat transfer systems. Designed for integration with multi-speed fan setups, the controller features an LCD touch screen interface and offers granular configuration for fan speed, temperature thresholds, operating schedules, and advanced system parameters.

Fan Control Modes:

Auto Mode: Automatically adjusts fan speed based on user-defined temperature thresholds (High: 0–10°C, Low: 0–10°C).
Manual Mode: User-selectable fan speeds (Low/Medium/High), suitable for fixed-output operation.
Boost Mode: Instant override for maximum fan output; configurable timer (0–60 minutes).

Scheduler:

Up to 4 programmable time periods per 24-hour cycle.
Independent ON/OFF control per period.
Integrated system clock and calendar (24-hour format).

Temperature Control:

Adjustable temperature setpoint: 5–35°C
Room temperature calibration: 10°C (default offset: –2.5°C)
Display Resolution: 0.1°C

Touch Activation Settings:

Sensitivity adjustable for all soft keys (range: 15–125; default: 55–60)
Key Lock function to prevent unauthorised changes

Display & Interface:

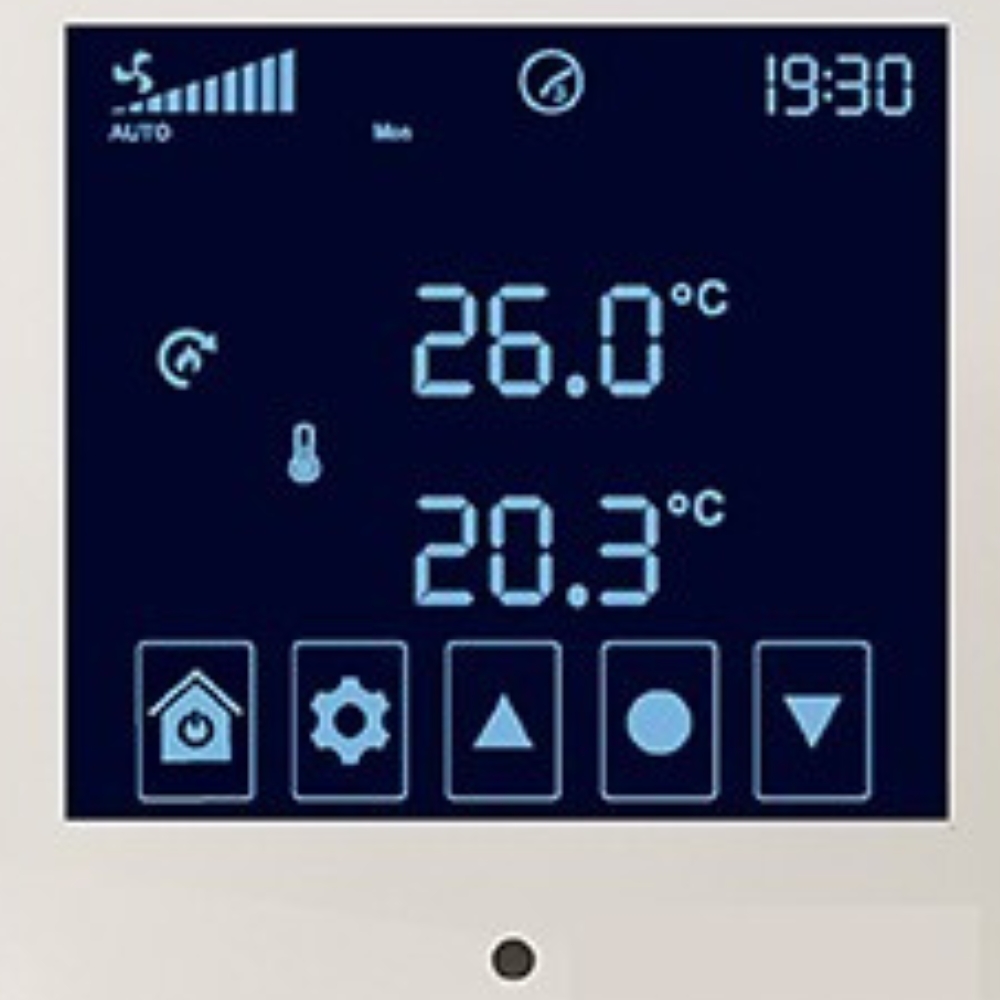

3.5” high-contrast LCD touchscreen
Real-time status icons (Heat Transfer ON, Recycle ON, Summer Vent ON, Temperature Sensing ON)
Alert icon for system faults with error code display

Advanced Configuration:

Installer-only settings unlocked via password (Setting 020)
EC fan speed calibration (Low: 0–30%, Medium: Low–50%, High: Medium–70%, Boost: High–100%)
Restore to factory defaults (Settings 000–018)

Power & Connectivity:

Operating Voltage: 220–240V AC, 50Hz
Max Switching Voltage: 240V AC
Max Switching Current: 3A resistive load
Output: Relay or 0–10V DC

Environmental Ratings:

Operating Temperature: 0 to 40°C
Humidity Range: 5–90% RH (non-condensing)

Compliance:

Meets all relevant AS/NZS standards
EMC compliant

Installation Notes:

Mount on an internal wall at eye level, away from direct sunlight and localised heat sources.
Compatible with single-, two-, or three-speed fans (configurable).
Not designed for use with heat pumps or gas appliances without proper consultation.
