Kit #5: Up To 120m3 – VKM In Line Underfloor Kit

Motor Capacity: 580 m3/hr (161.11 l/s)
Motor Type: Metal Centrifugal

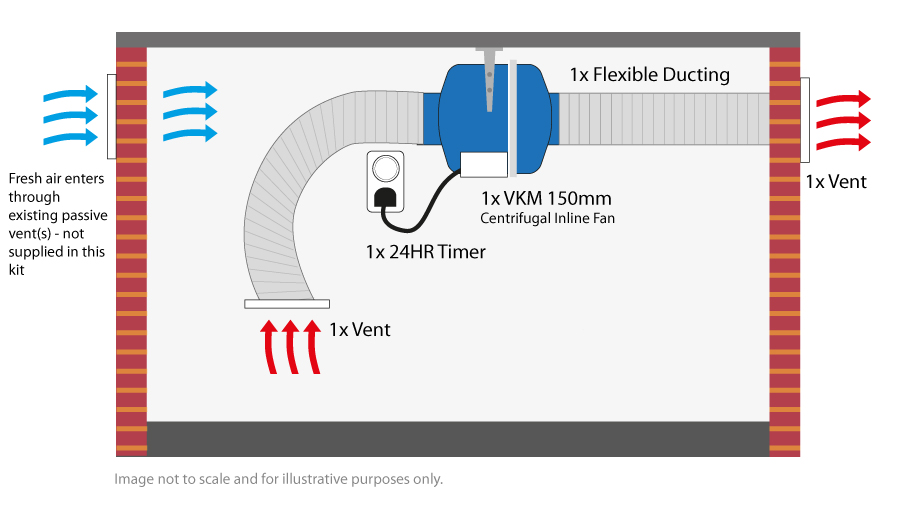

Kit Includes:
1x VKM 150 In Line Fan(EXVUV150B) Click to view fan Specs
1x 6m of 150mm duct(EDNU1506MF)
2x Fly Screen Vents(EVVUFS150)
1x 24hour Timer(EABUT24) (The timer is plugged into a standard power point)
1x Flex & Plug(EALEADL31MB) (The fan is then plugged into the timer- fan will be wired to high speed ONLY and you cannot use the accessory speed controller)
1x Roll of hanging tape(EATAPEH) (allows ducting to hang from joists)
1x Roll of duct tape(EATAPED) (allows secure connection of the system)
View full technical specs further down the page

Some buildings have very little subfloor ventilation. Inadequate underfloor ventilation can lead to an accumulation of moisture in the sub floor. This in turn can cause structural and health problems for the home and it’s occupants.

The most common reason for inadequate under floor ventilation is that there not enough vents, or they are too small for the size and layout of building. Building extensions, building location and soil type can all contribute to problems in the subfloor.

This underfloor kit is specifically designed for areas of up to 120 cubic meters.
